Camping firepit assembly

To facilitate the assembly of your outdoor fireplace, refer to the plan received at the purchase of your fireplace and to the assembly's general section for more advices.

For your 1st row: you will need 4 Odd rows blocks (with no identification circle under the block). This row will be installed counter-clockwise.

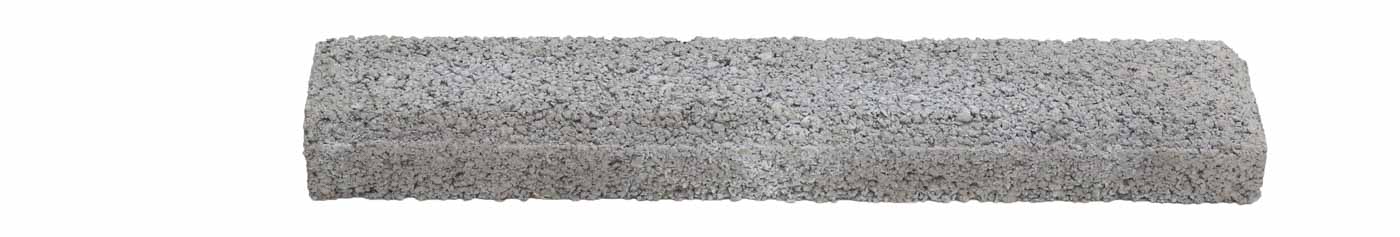

On a level surface, place the 1st block of the 1st row (Odd rows blocks), starting from the front. Place it at the right end of your fireplace assembly location.
Note: Do not install on a concrete surface that is not designed for heat.

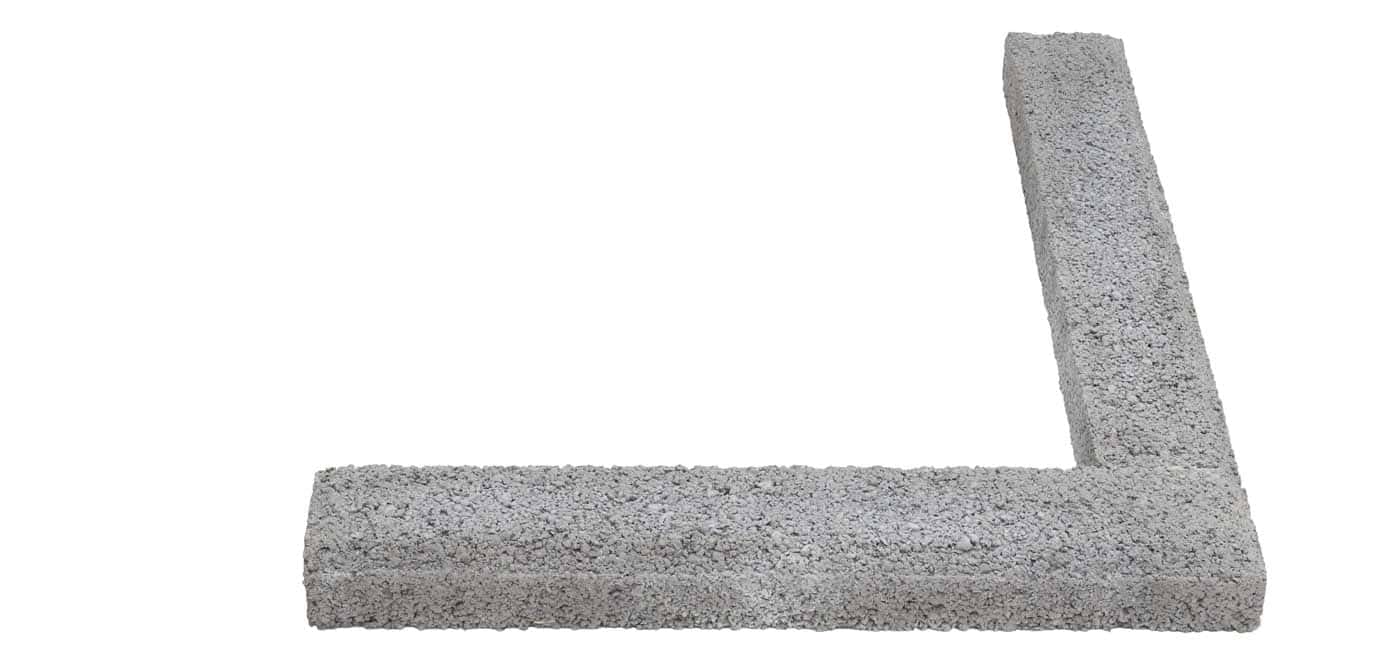

Place the 2nd block (Odd rows blocks) to the right of, but above, your 1st block perpendicularly so that the corner  angles design lines up together.

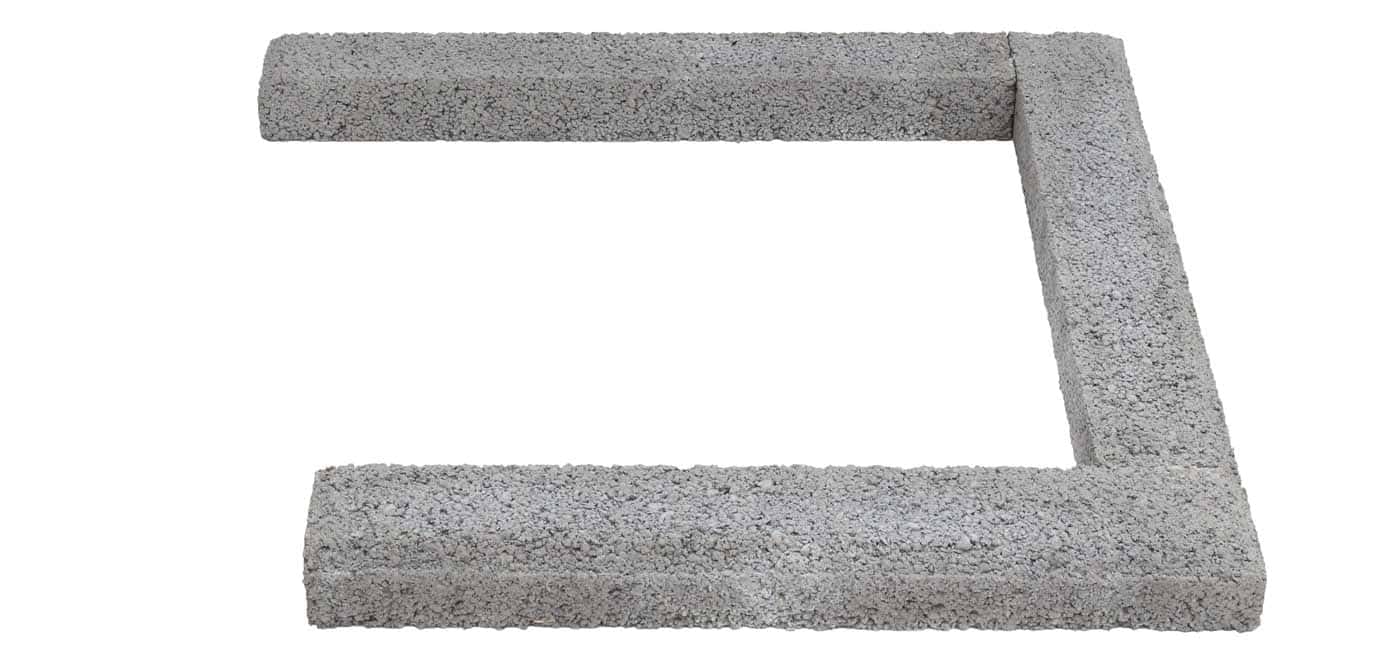

Place the 3rd block (Odd rows blocks) perpendicular to your 2nd block as in the previous step.

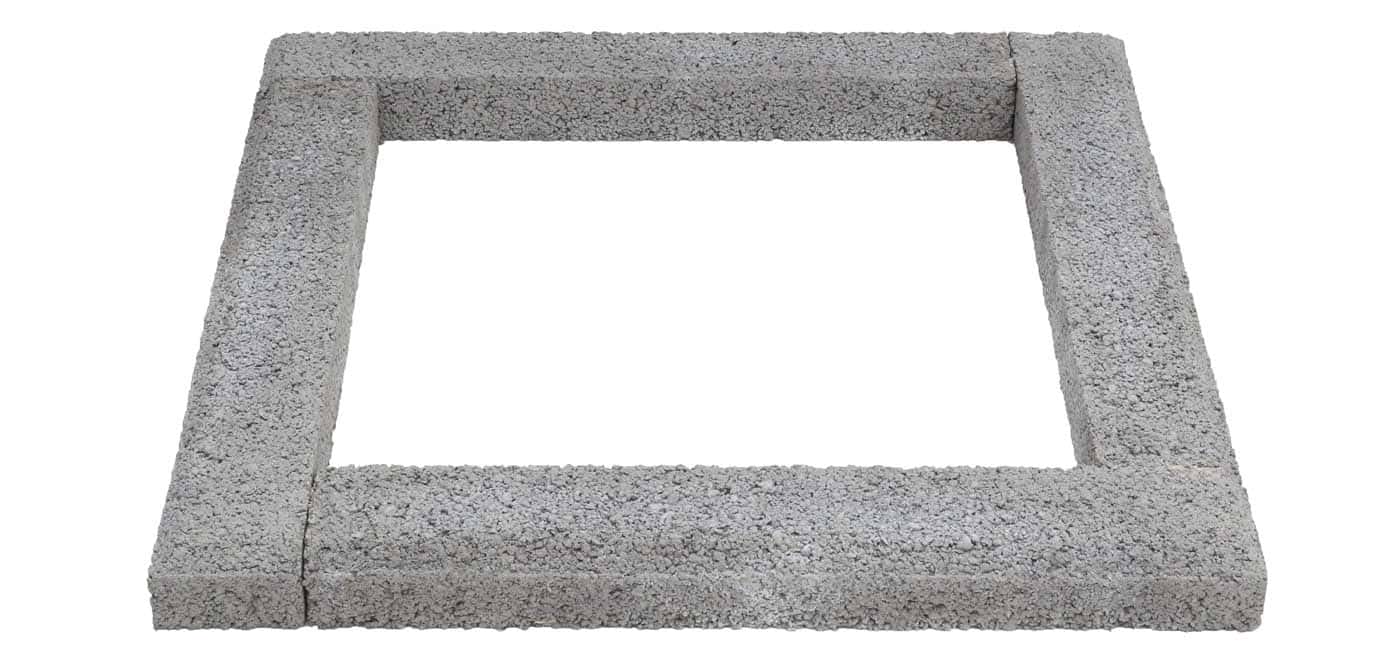

Place the 4th block (Odd rows blocks) perpendicular to your 3rd block as in the previous step so that it joins the 1st block. This completes your 1st row.

For your 2nd row: you will need 4 Even rows blocks (with identification circle under the block). This row will be installed clockwise.

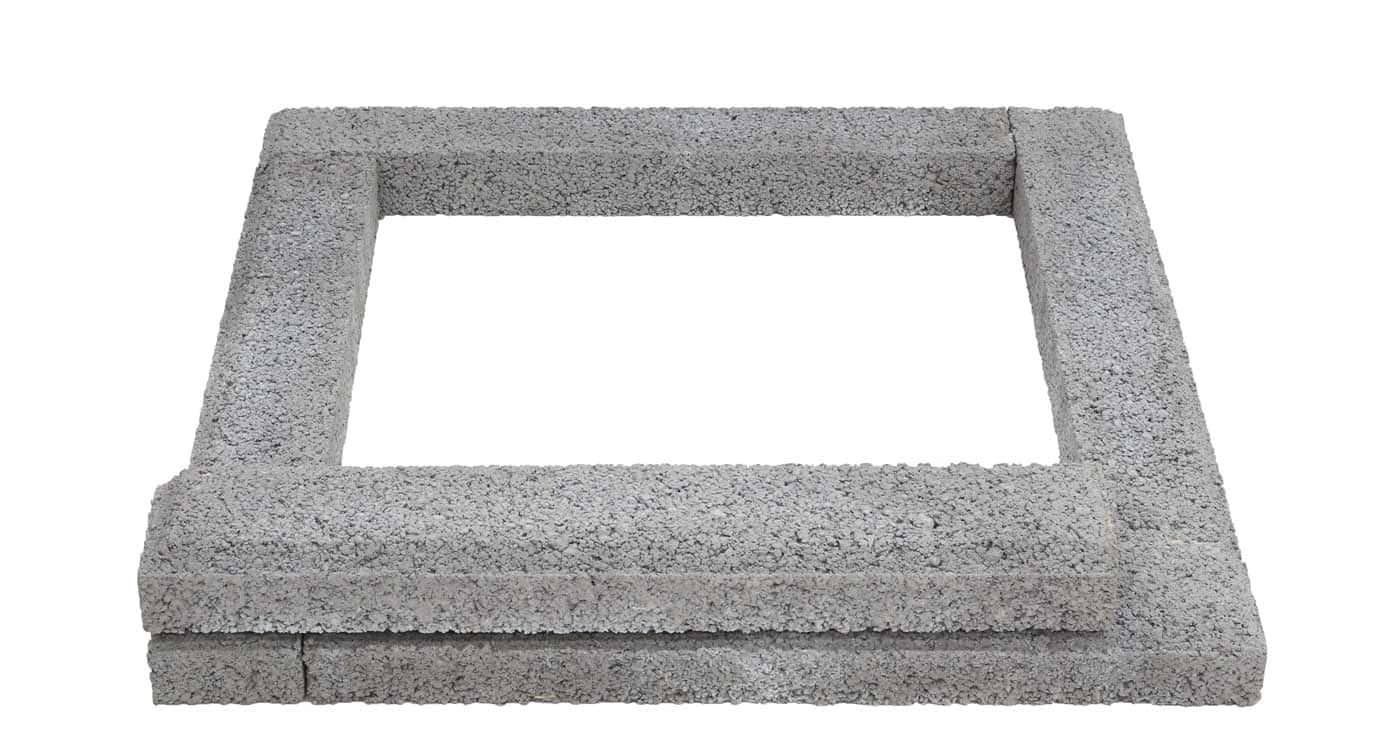

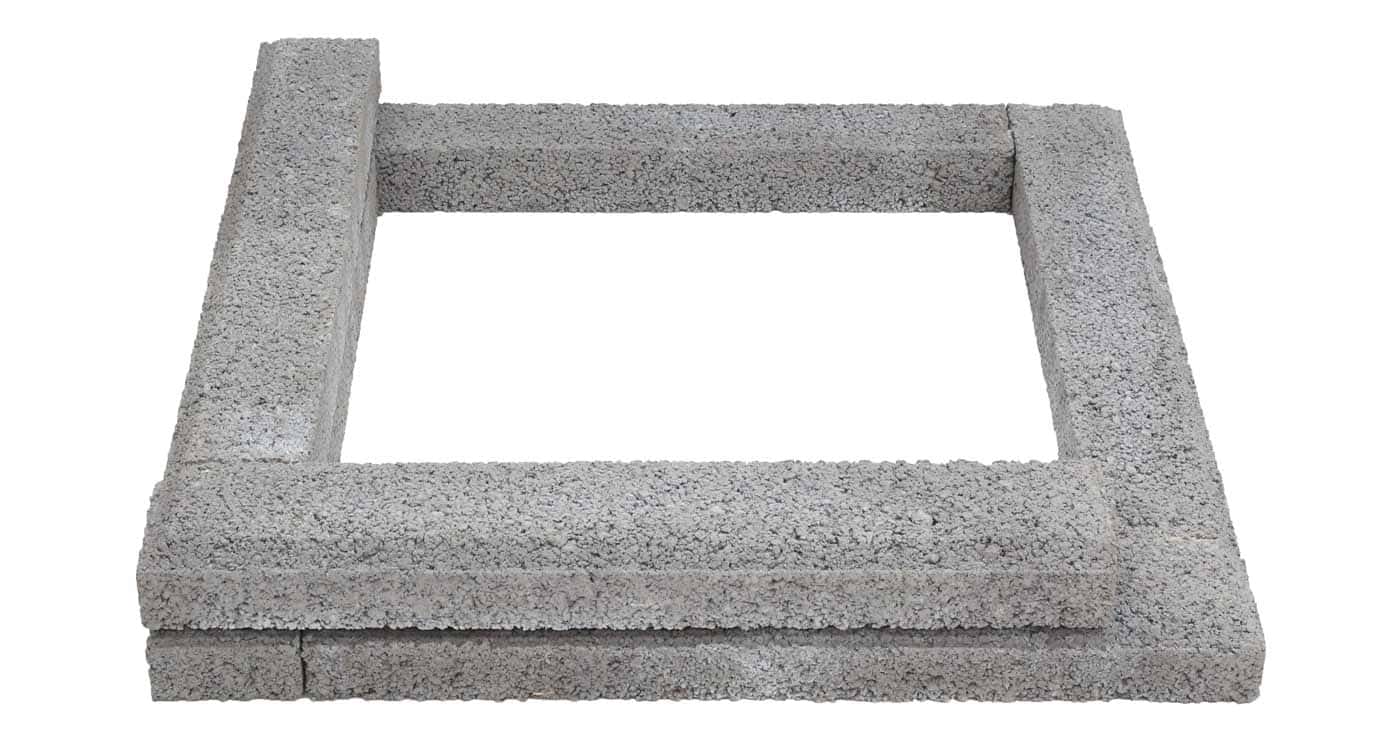

Place at the left end at the front the 1st block (Even rows blocks) on top of your 1st row.

Place the 2nd block (Even rows blocks) perpendicular to your 1st block so that the corner angles design lines up together.

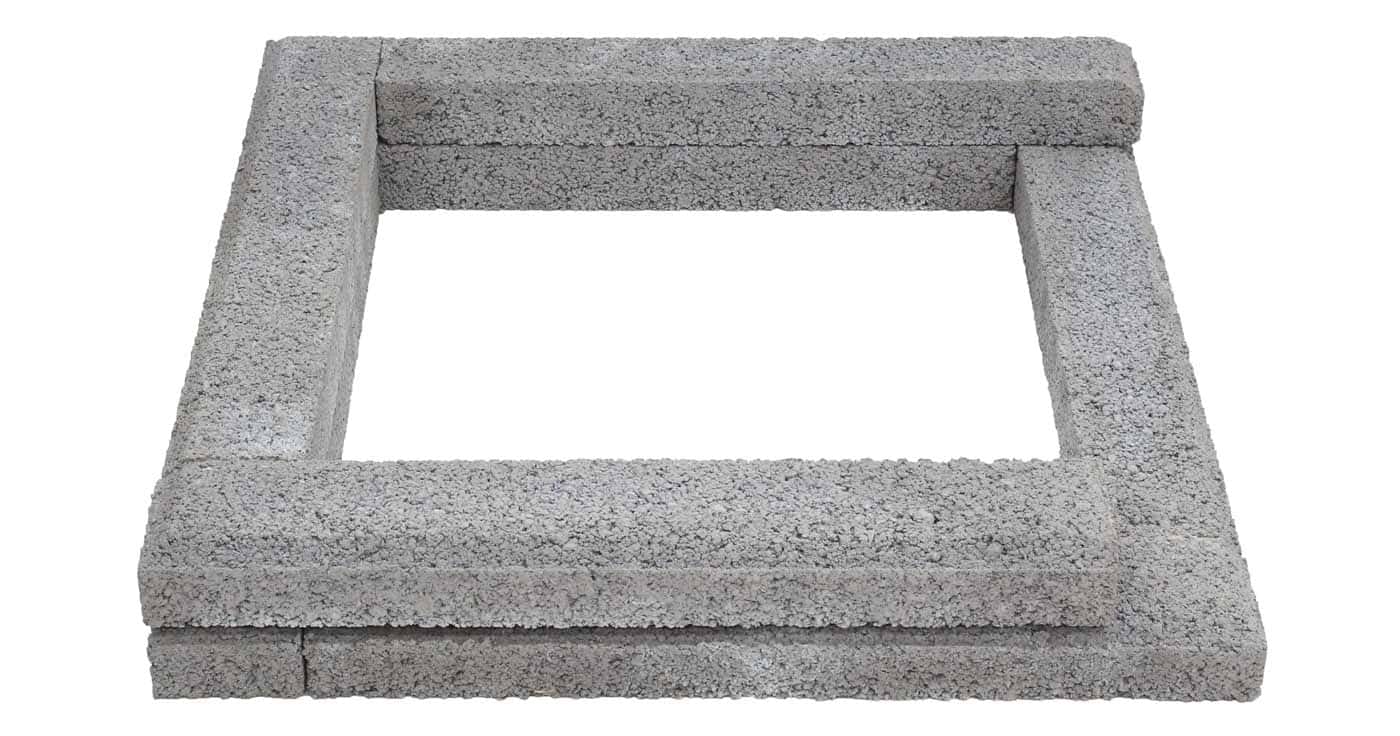

Place the 3rd block (Even rows blocks) perpendicular to your 2nd block as in the previous step.

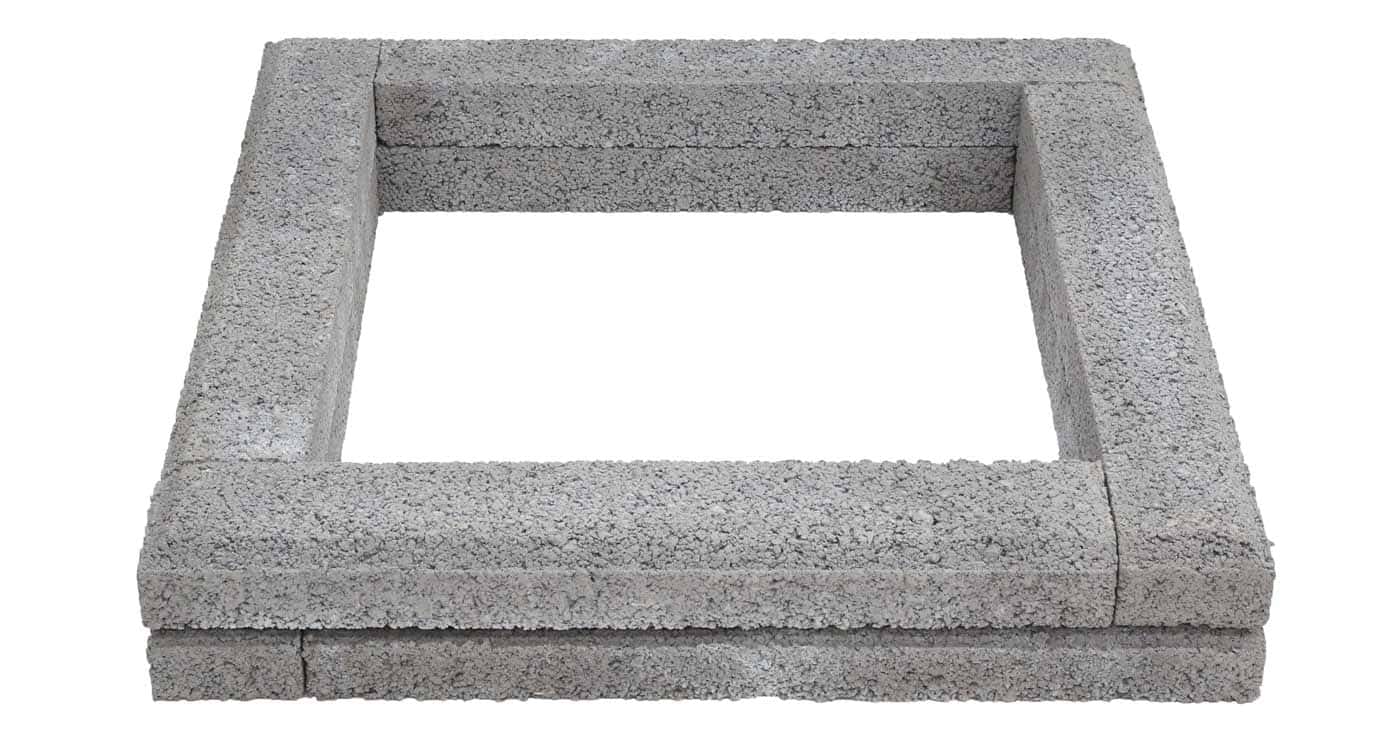

Place the 4th block (Even rows blocks) perpendicular to your 3rd block as in the previous step so that it joins the 1st block. This completes your 2nd row.

For your 3rd row: you will need 4 Odd rows blocks (with no identification mark under the block). This row will be installed counter-clockwise.

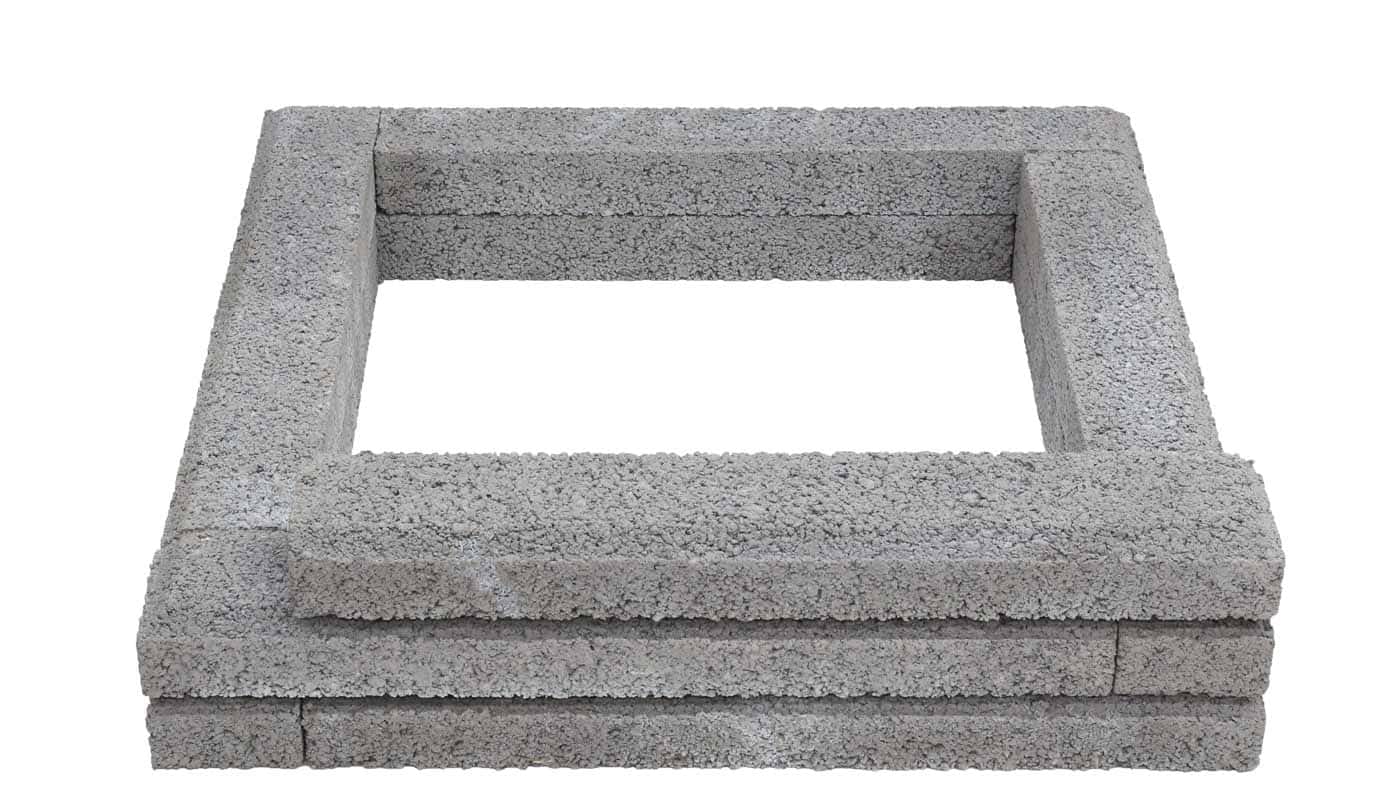

Place at the right end at the front the 1st block (Odd rows blocks) on top of your 2nd row.

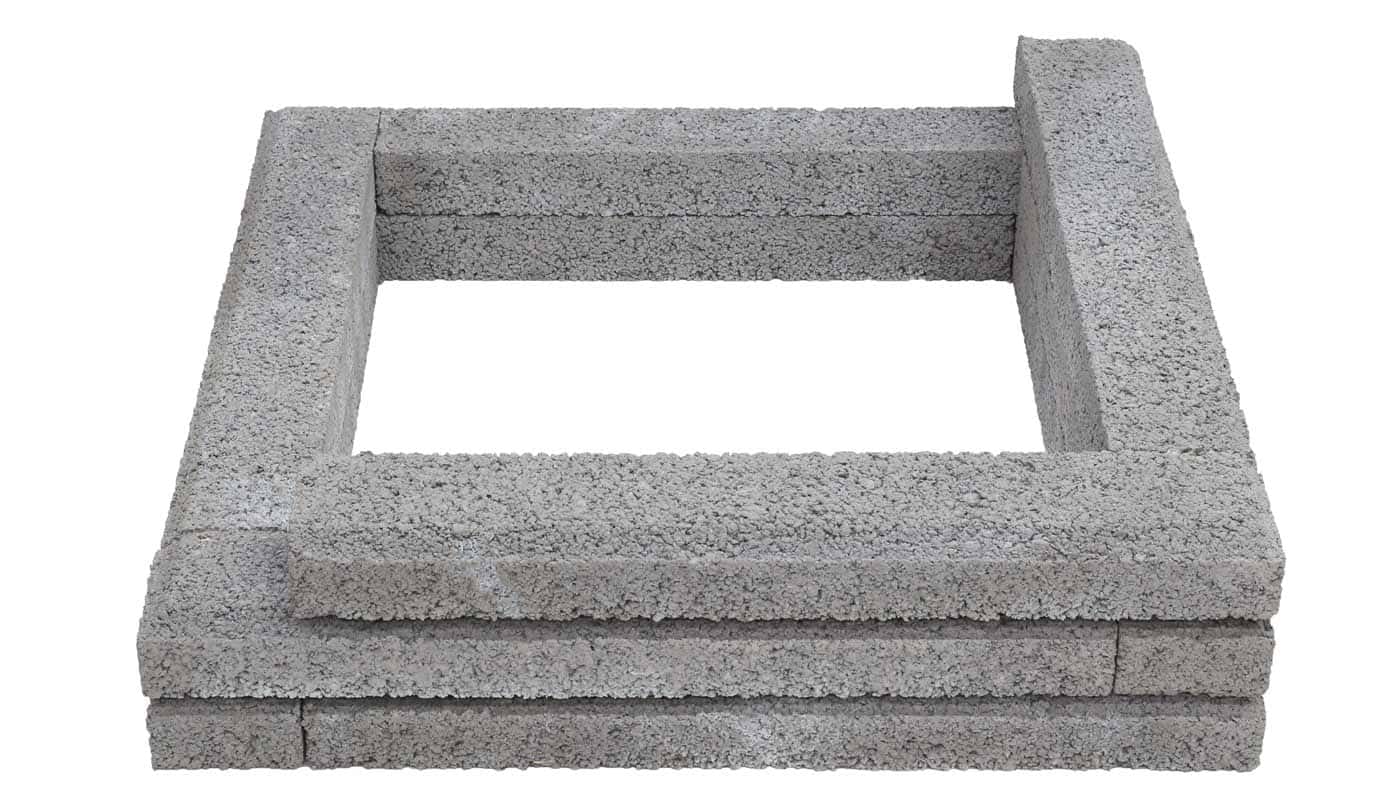

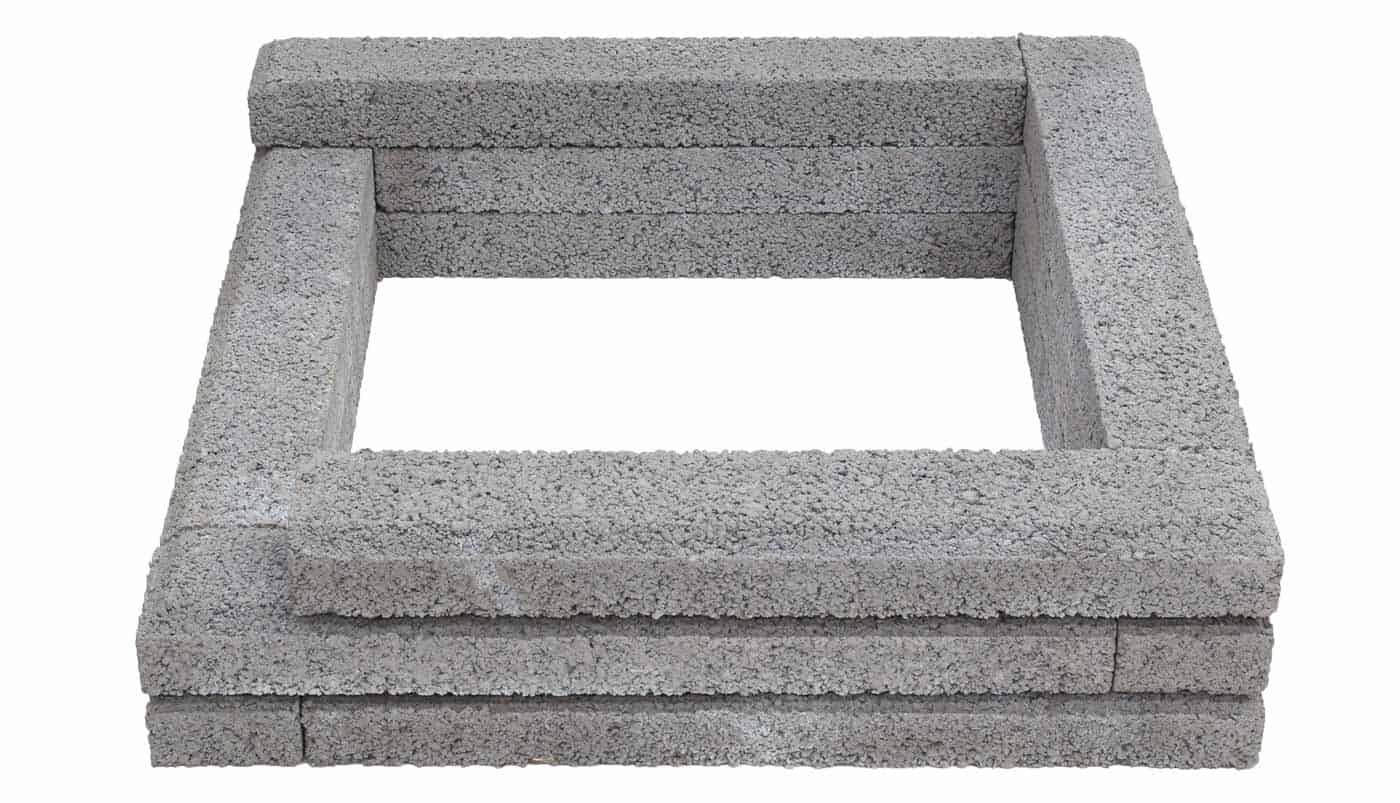

Place the 2nd block (Odd rows blocks) perpendicular to your 1st block so that the corner angles design lines up together.

Place the 3rd block (Odd rows blocks) perpendicular to your 2nd block as in the previous step.

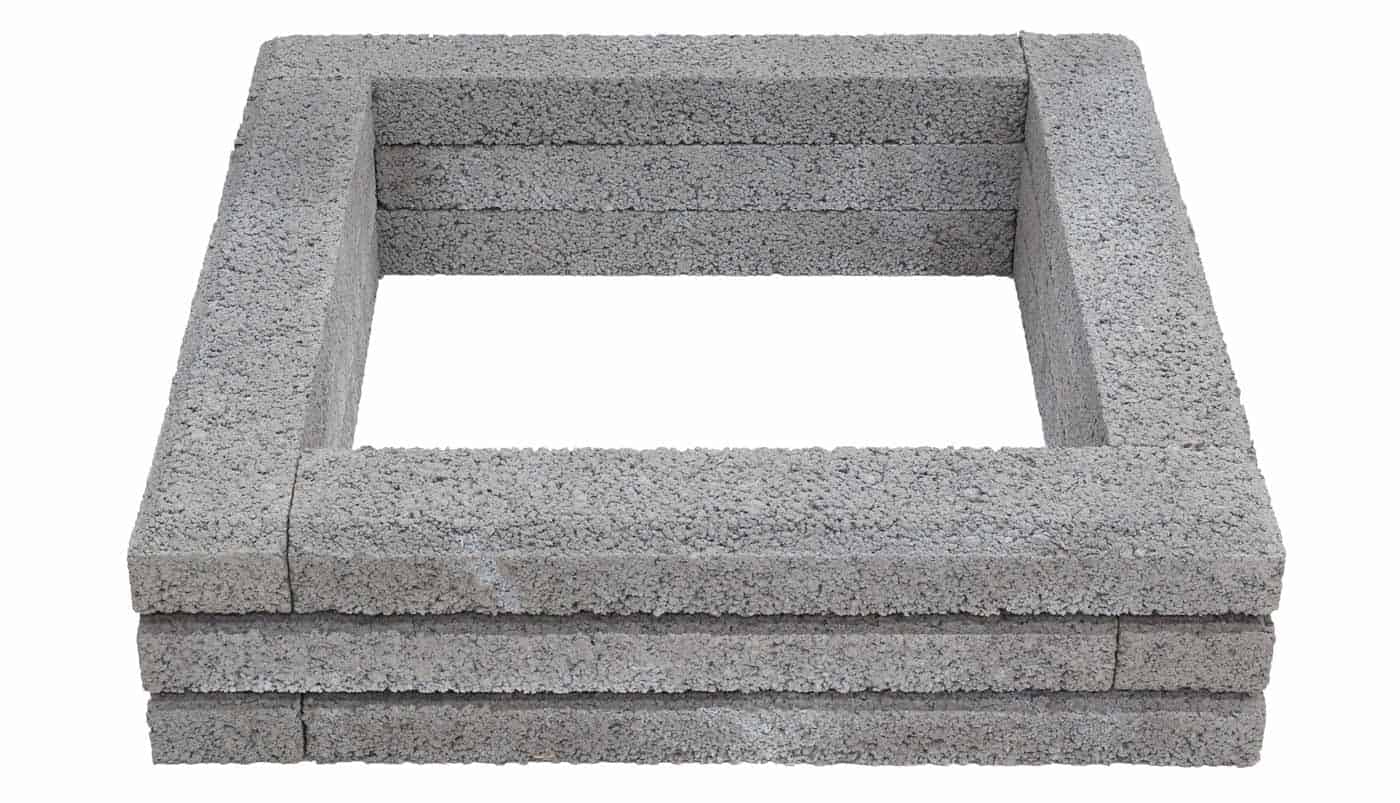

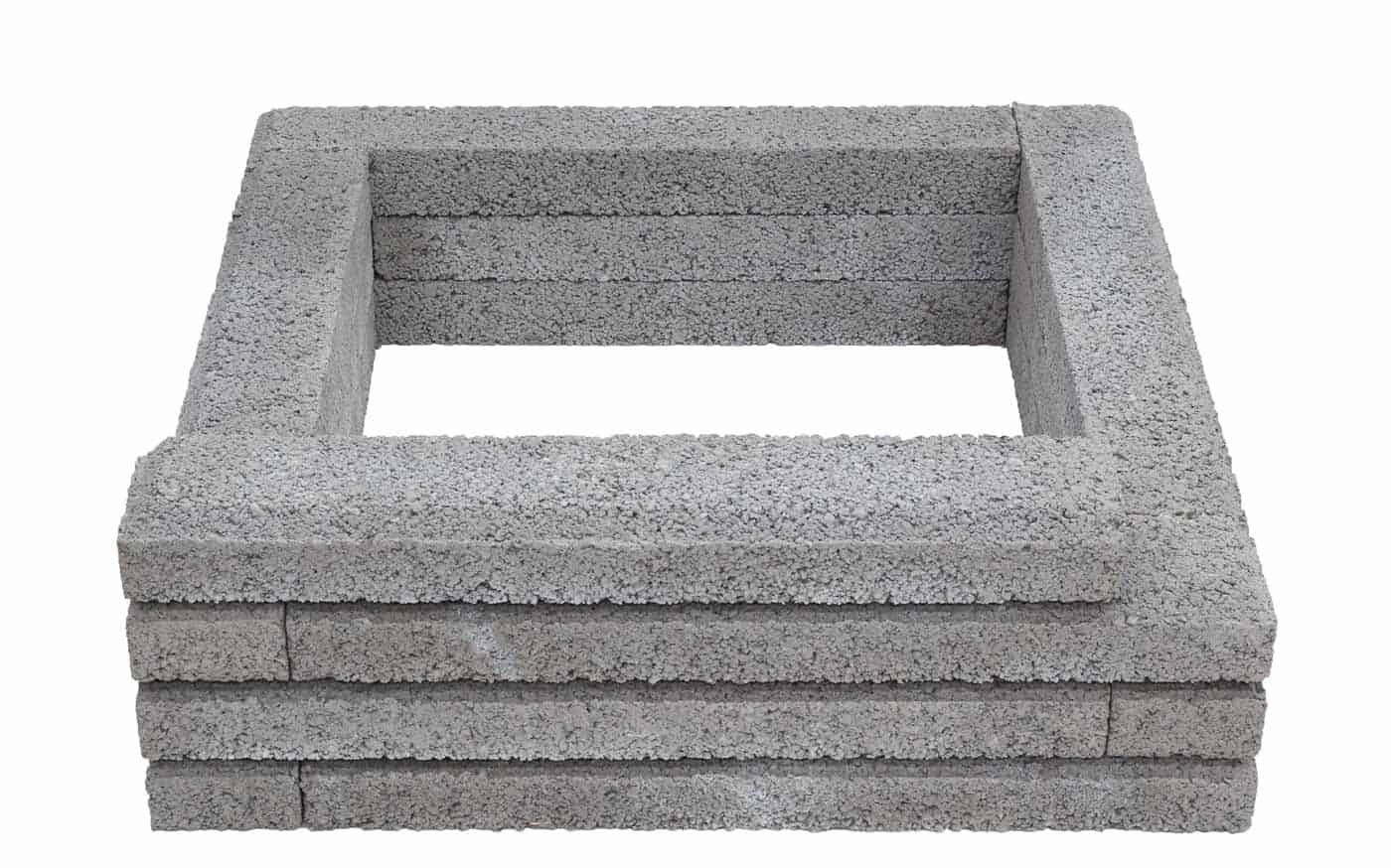

Place the 4th block (Odd rows blocks) perpendicular to your 3rd block as in the previous step so that it joins the 1st block. This completes your row and completes the Camping firepit (3 rows).

Additional rows:
For the assembly of a 4th row (Even row) you will need 4 Even rows blocks (with identification circle under the block). This row will be installed clockwise. Refers to the step of the 2nd row.

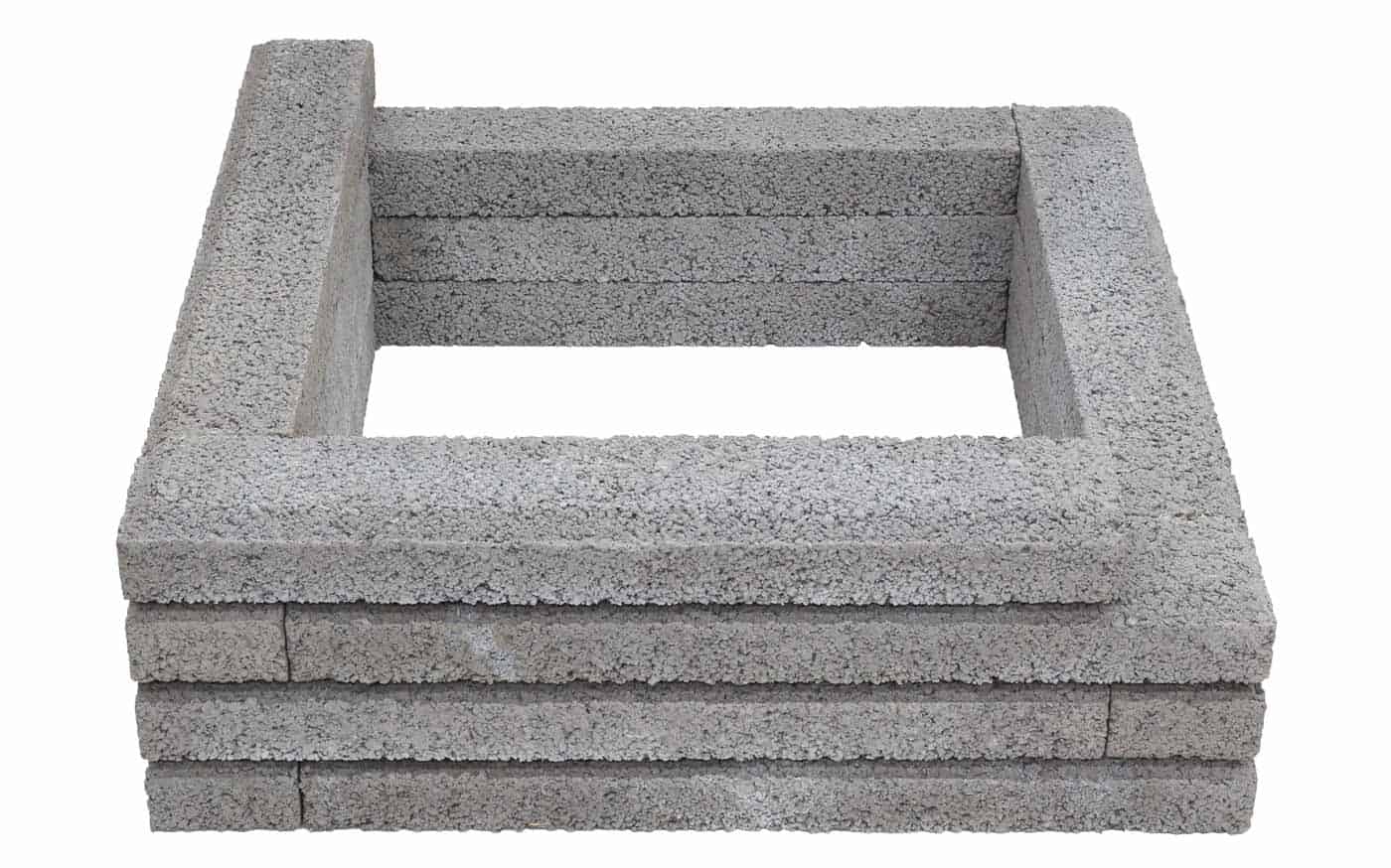

Place at the left end at the front the 1st block (Even rows blocks) on top of your 3rd row.

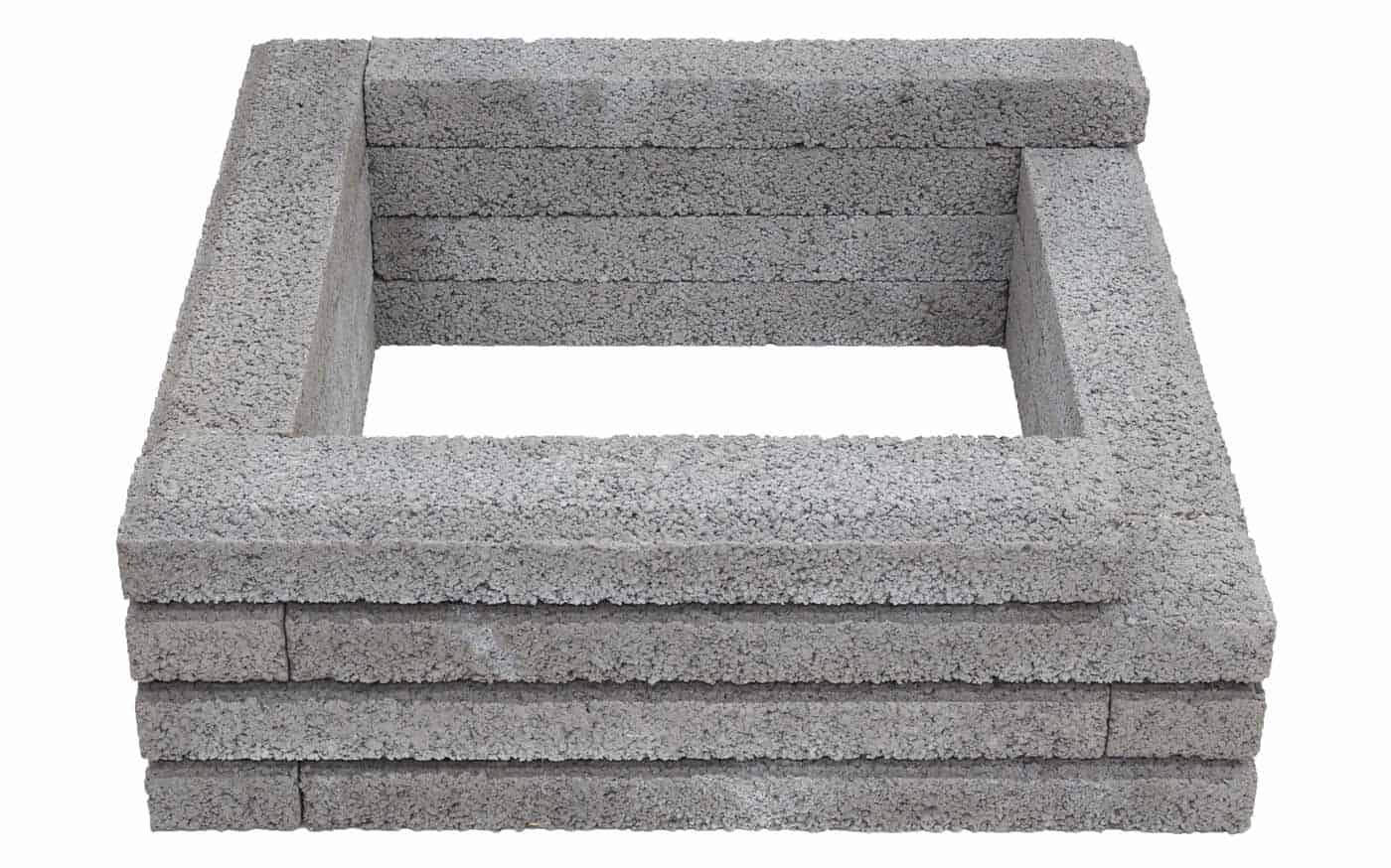

Place the 2nd block (Even rows blocks) perpendicular to your 1st block so that the corner angles design lines up together.

Place the 3rd block (Even rows blocks) perpendicular to your 2nd block as in the previous step.

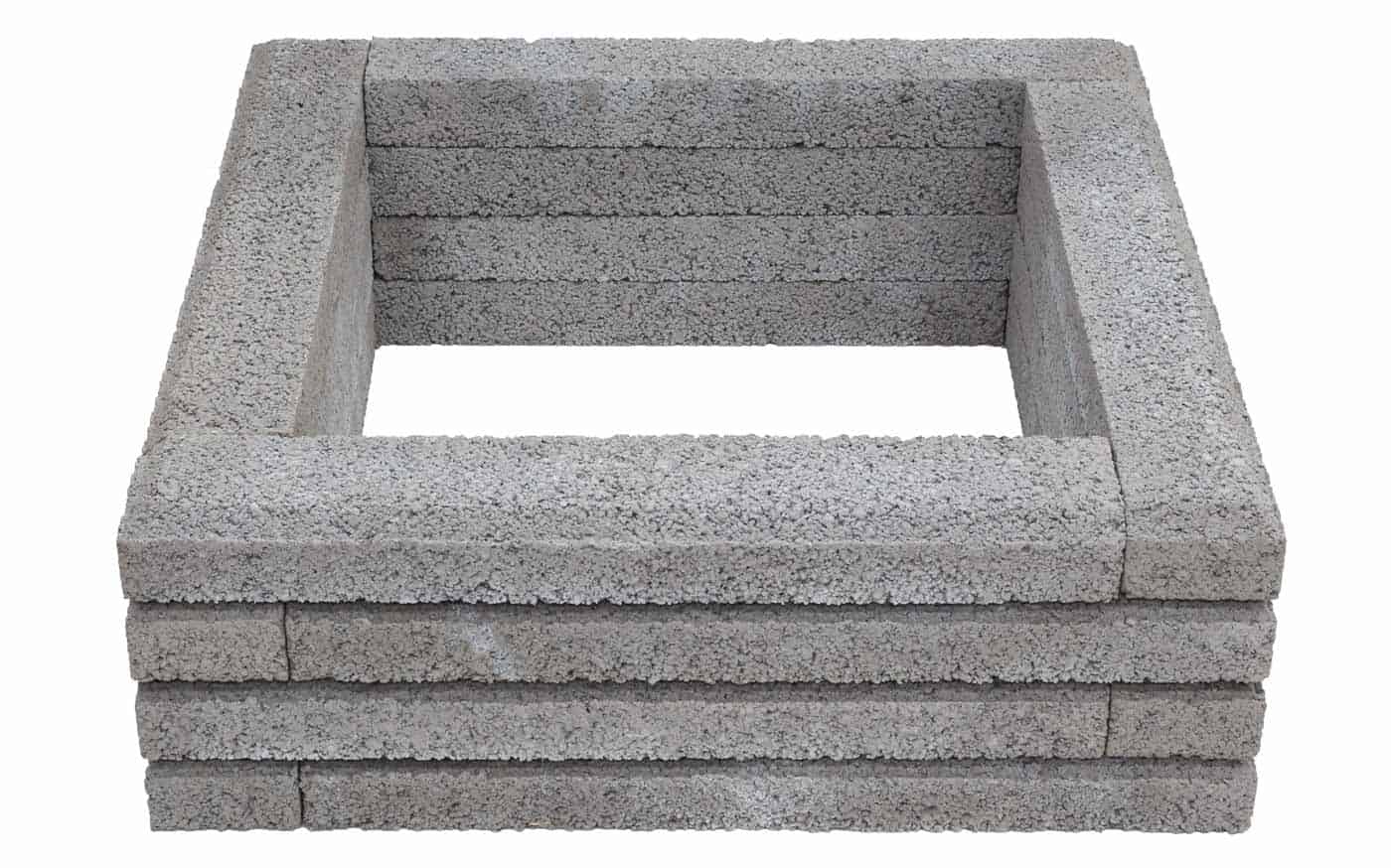

Place the 4th block (Even rows blocks) perpendicular to your 3rd block as in the previous step so that it joins the 1st block. This completes your row.
This completes the assembly of the Camping outdoor firepit with 4 rows.

Additional rows:
For the assembly of a 5th row (Odd row) you will need 4 Odd rows blocks (with no identification mark under the block). This row will be installed counter-clockwise. Refers to the step of the 1st row or the 3rd row.

Place at the right end at the front the 1st block (Odd rows blocks) on top of your 4th row.

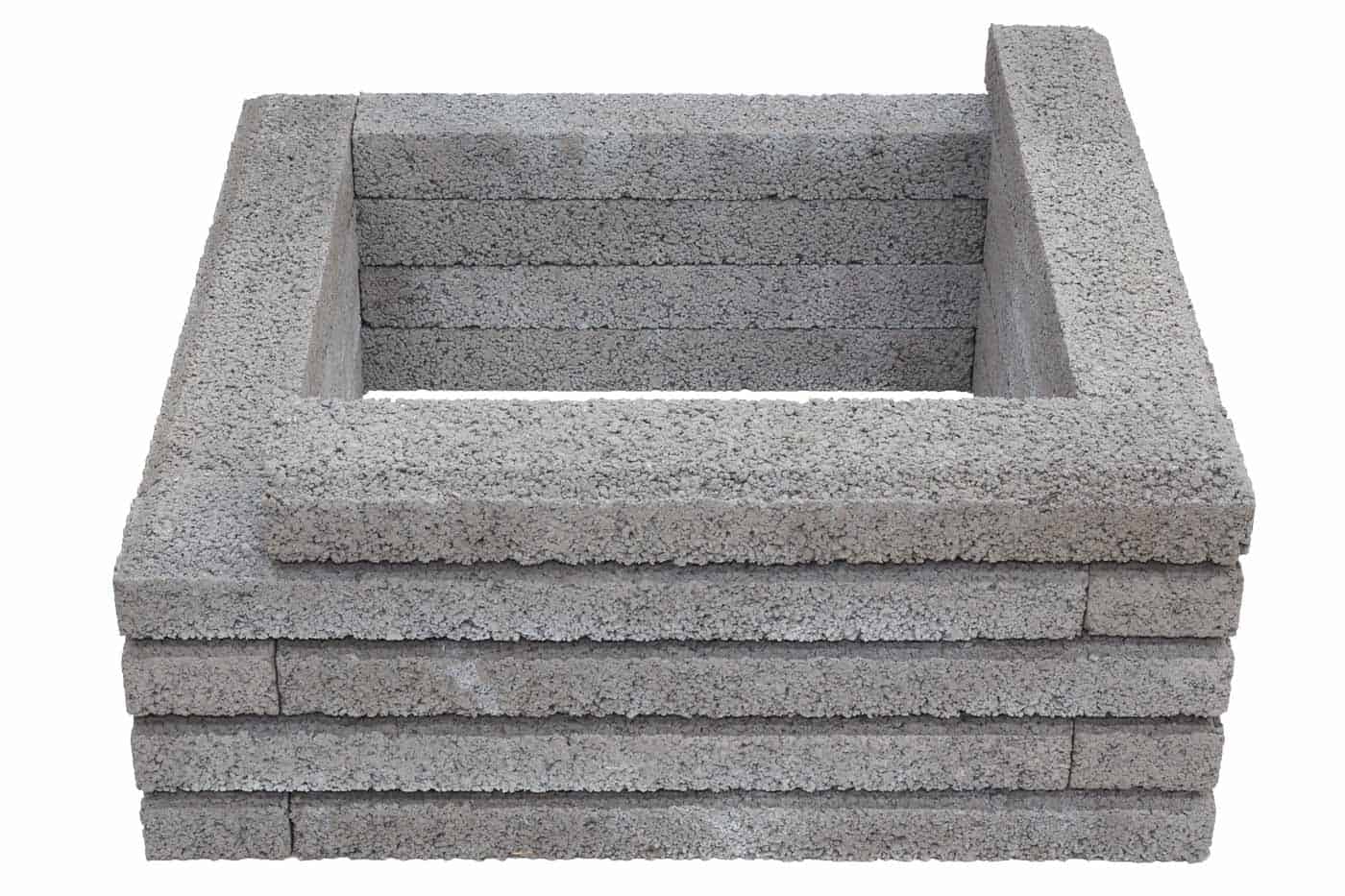

Place the 2nd block (Odd rows blocks) perpendicular to your 1st block so that the corner angles design lines up together.

Place the 3rd block (Odd rows blocks) perpendicular to your 2nd block as in the previous step.

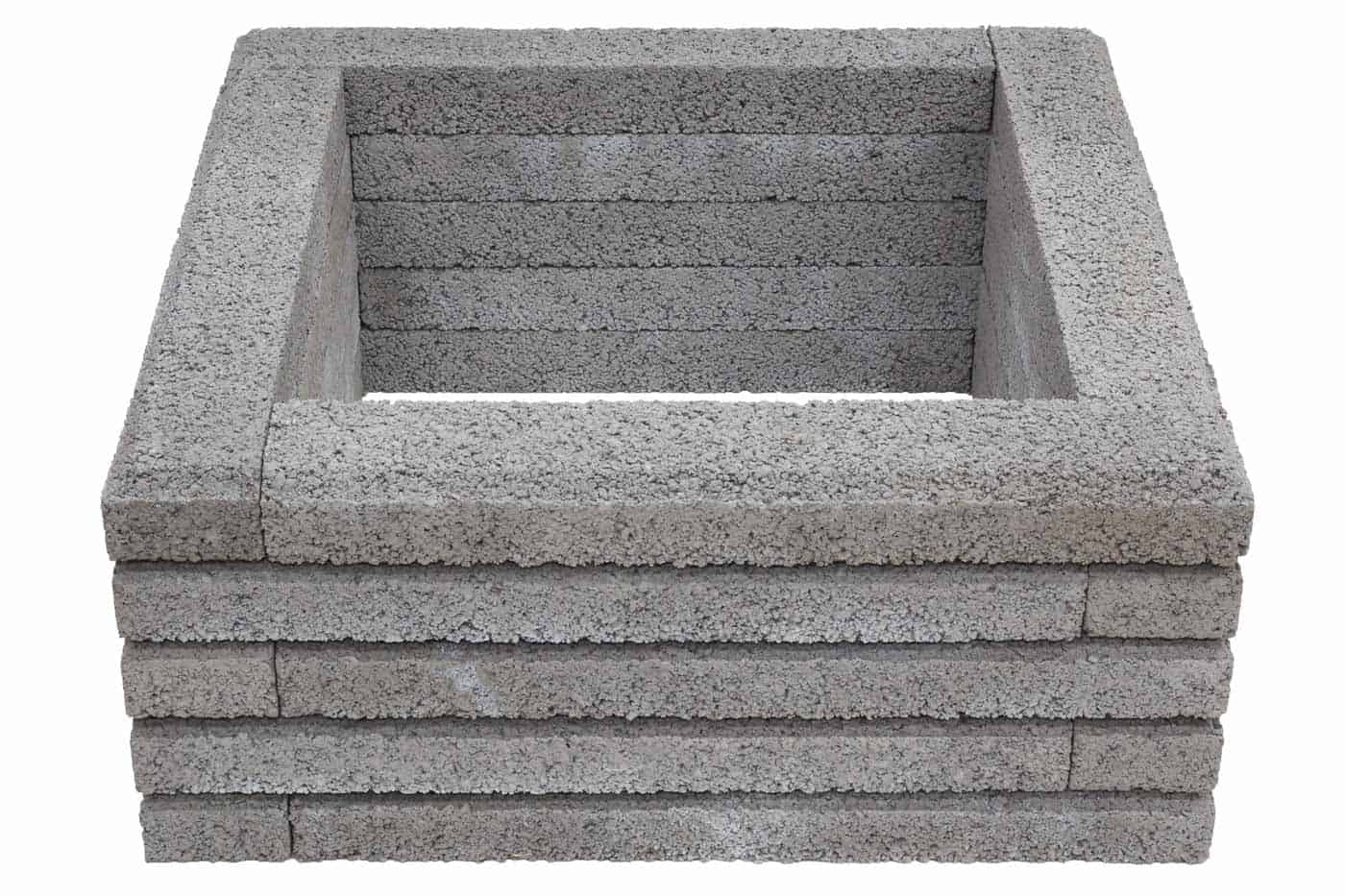

Place the 4th block (Odd rows blocks) perpendicular to your 3rd block as in the previous step so that it joins the 1st block. This completes your row and ends the assembly of the Camping fire pit with 5 rows
