Fireplace #115

To facilitate the assembly of your outdoor fireplace, refer to the plan received at the purchase of your fireplace and to the assembly's general section for more advices.

Assemblages
Fireplace #115

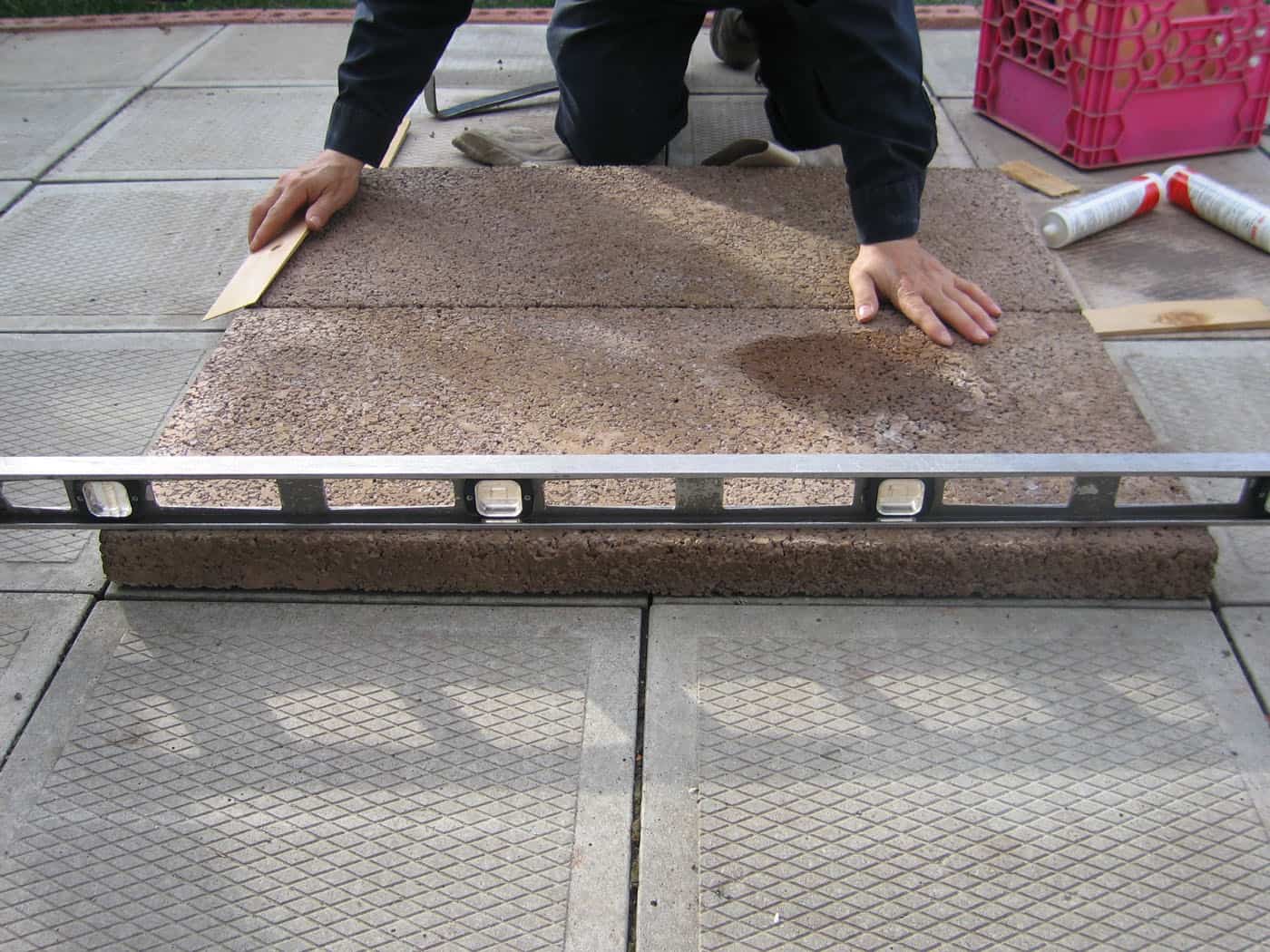

Put the tiles at the level.

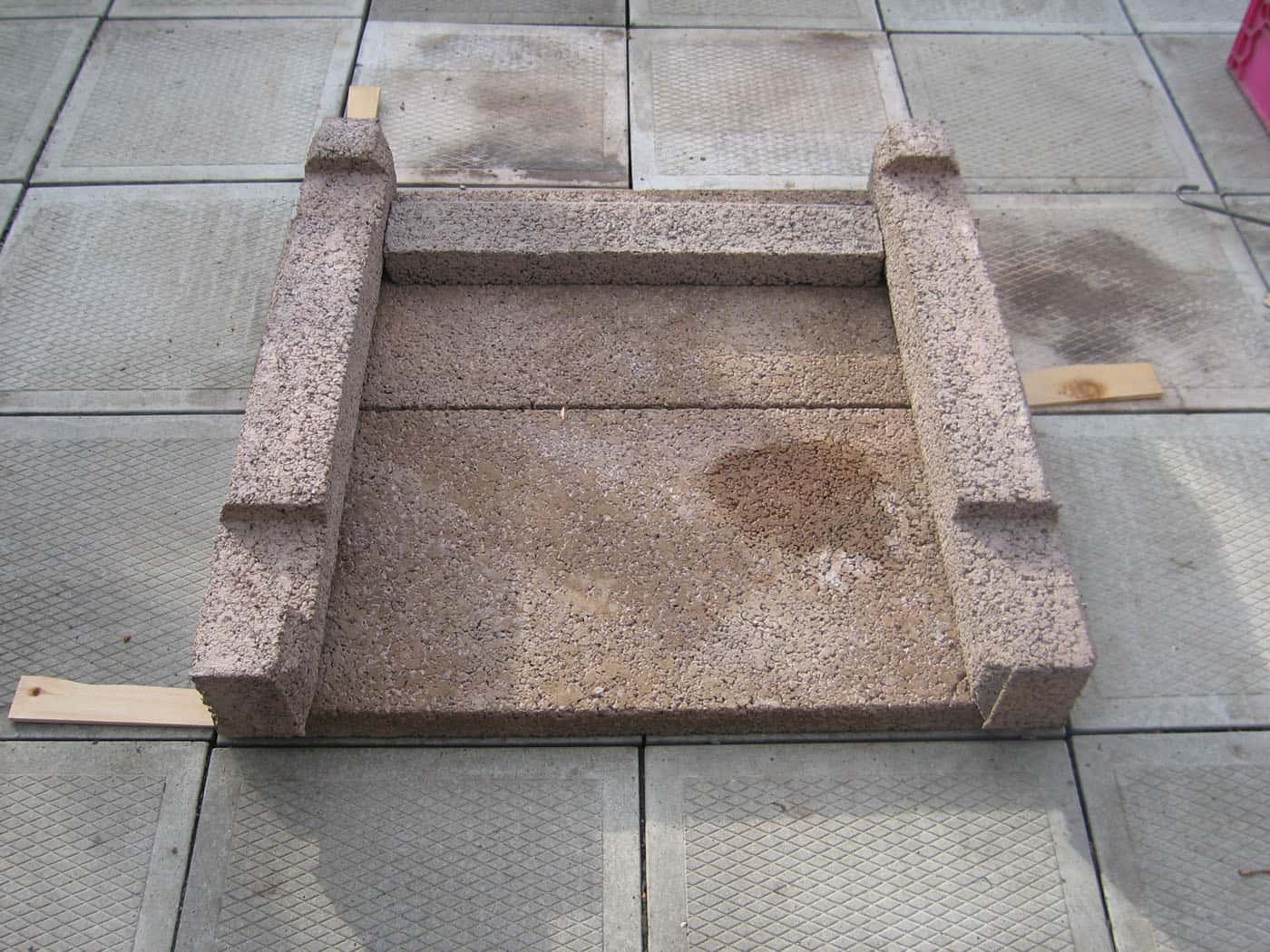

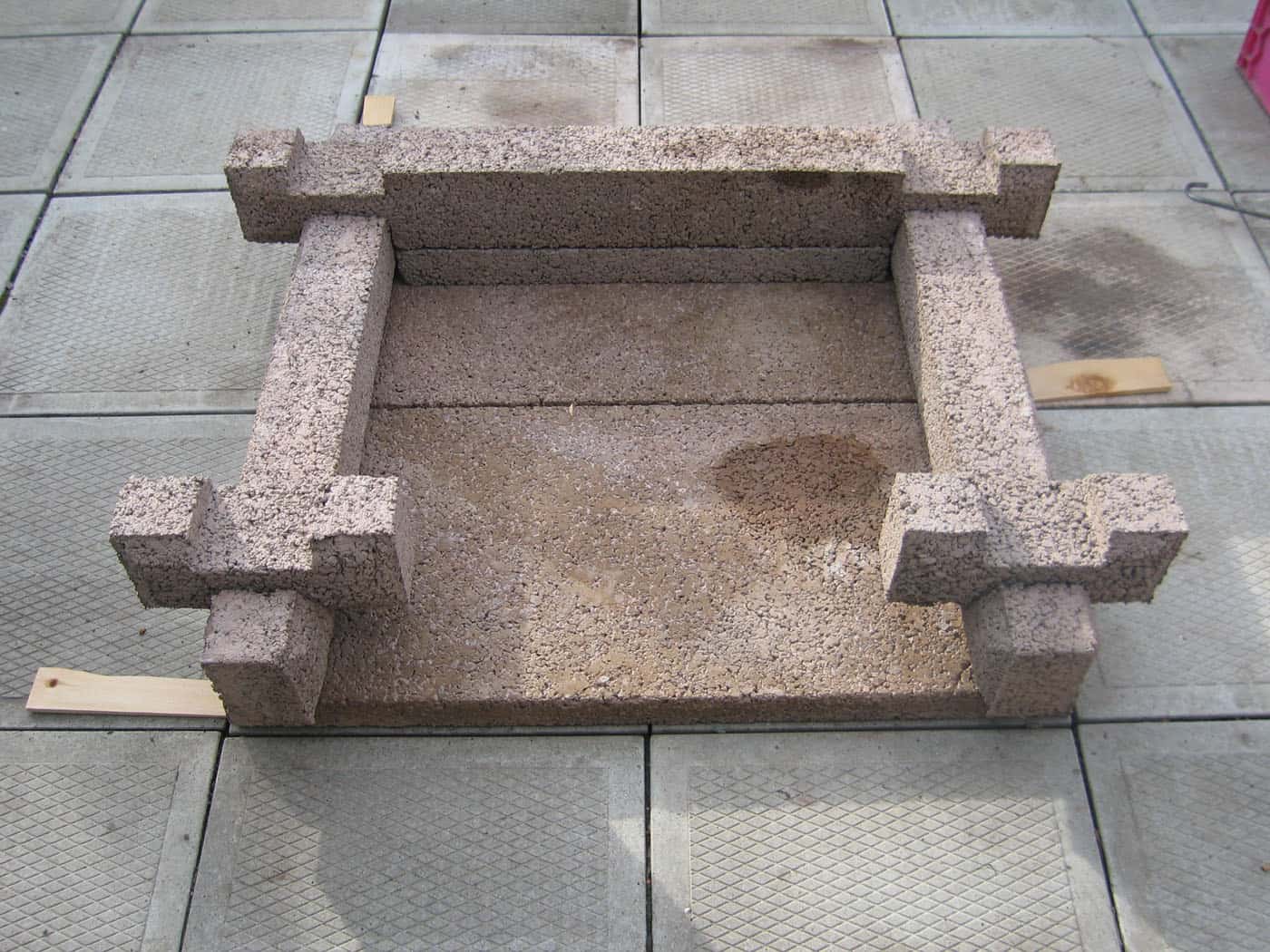

Put the 2 blocks Start 34” and the Half-Block 26” between the rear mortises.
Reminder : The flat side of each block goes inside the fireplace.

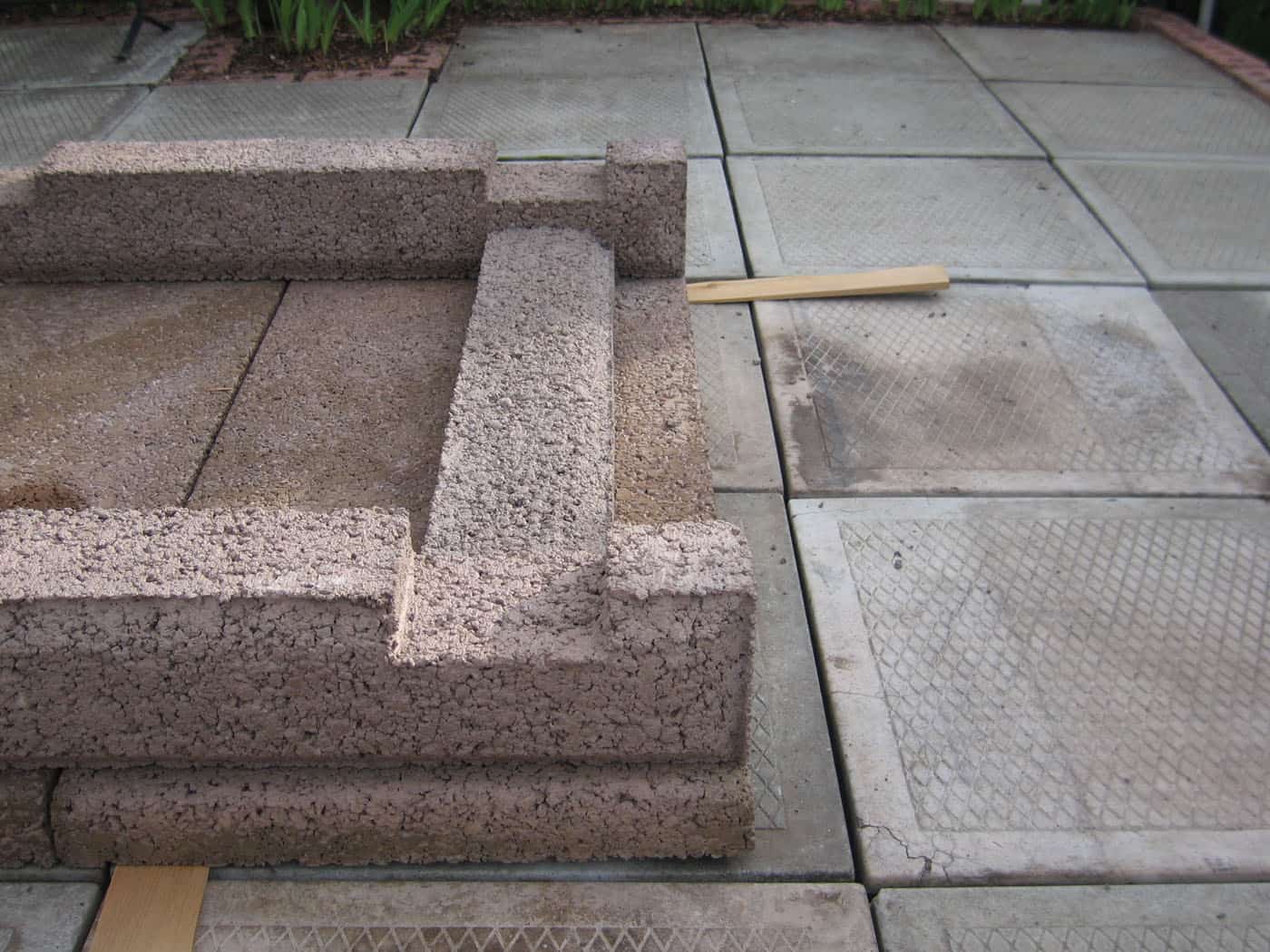

Put the 2 blocks Start 34” so that their back are in line with the base. This way, they will exceed by the front; it is prettier when installed this way.

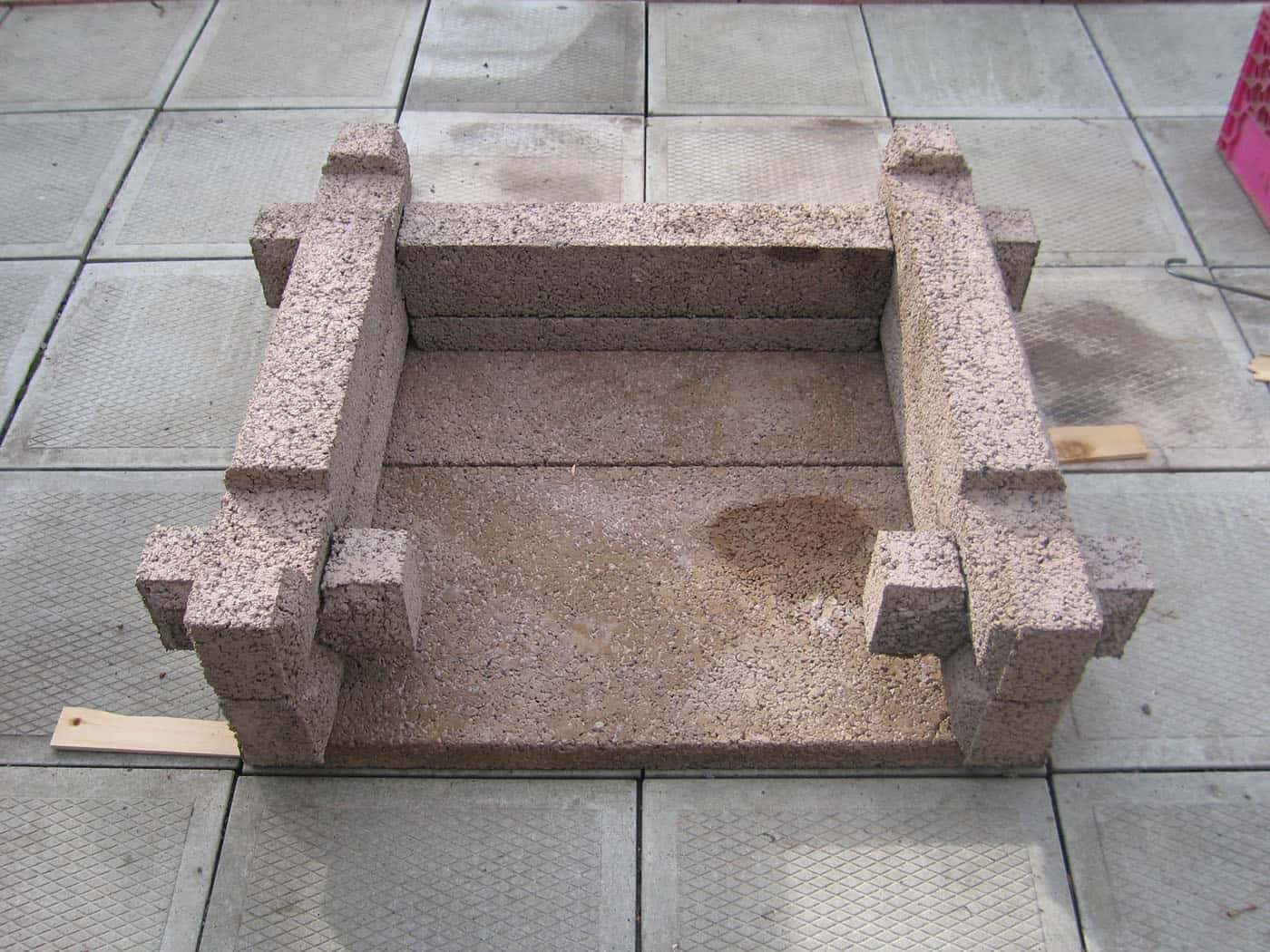

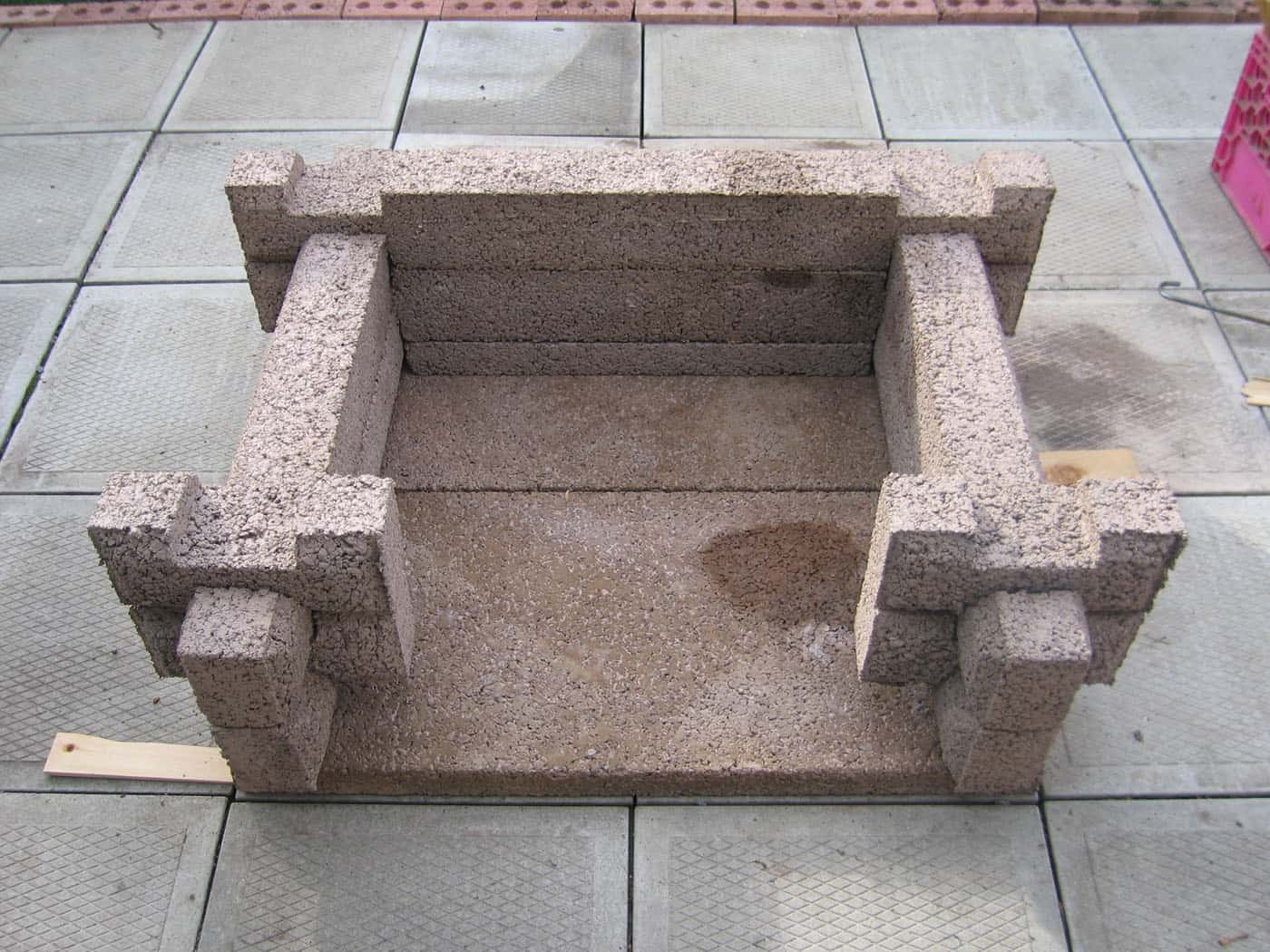

Place the 42” (4 notches) at the back and the 2 little blocks of 12” at the front. In putting them down, gently tap the blocks. If there were small stones, that would crush them. Make sure that your blocks are well placed flat over each other.

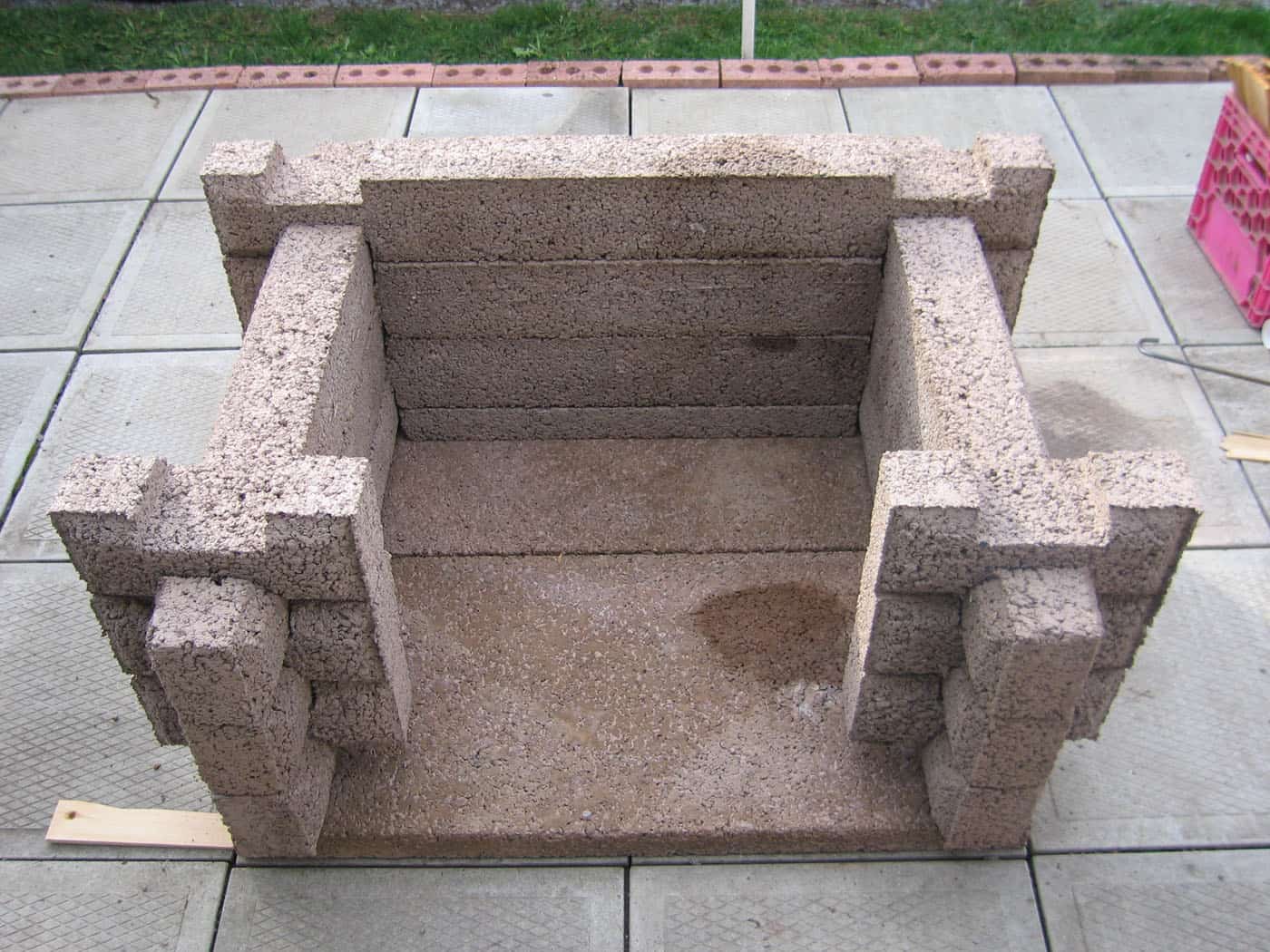

Place 2 blocks of 34” (4 notches) on each side.

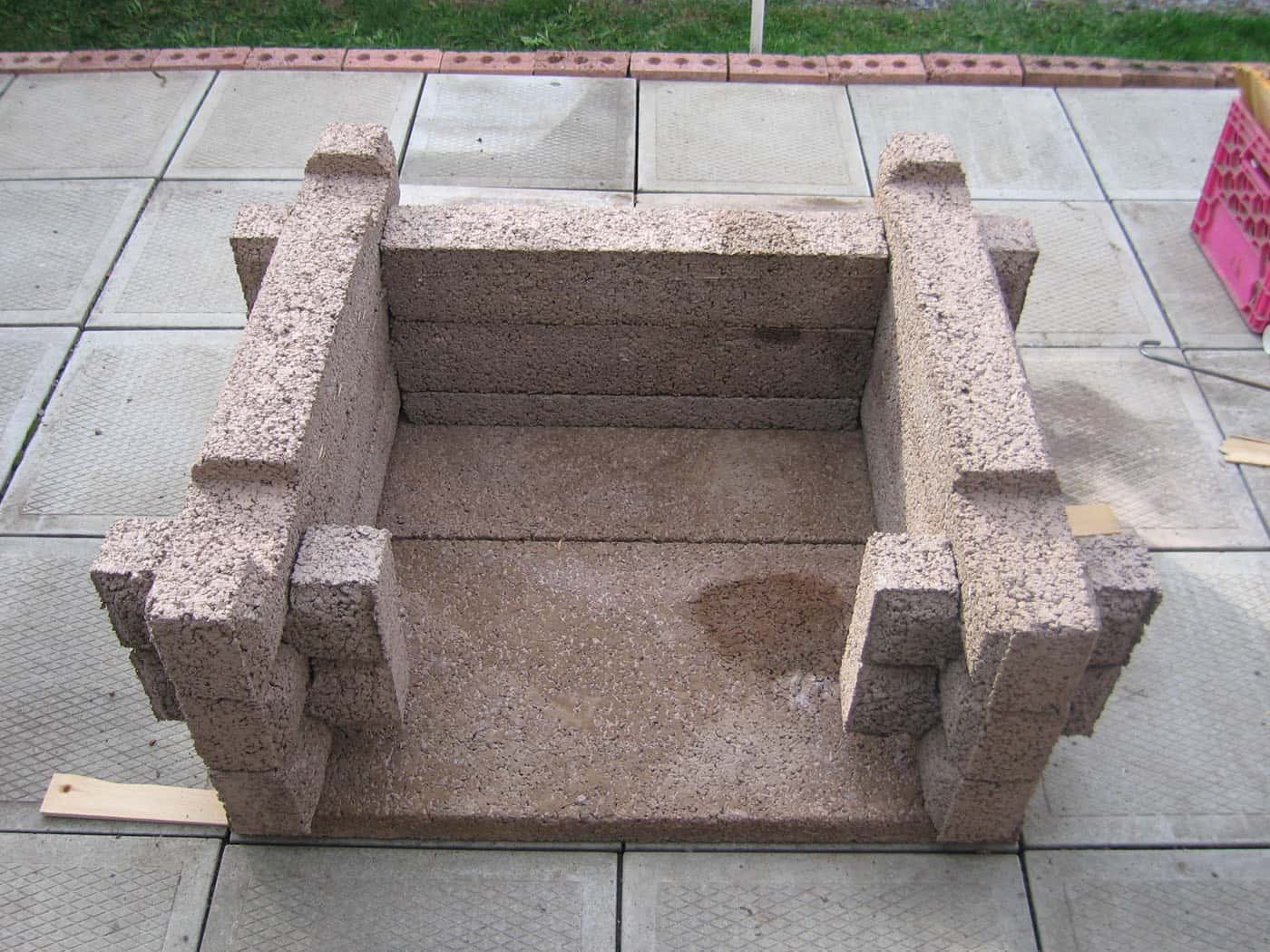

Place at the back a 42” (4 notches) and the 2 little blocks of 12”.

Place 2 blocks of 34” (4 notches) on each side.

Place at the back a 42” (4 notches) and the 2 little blocks of 12”.

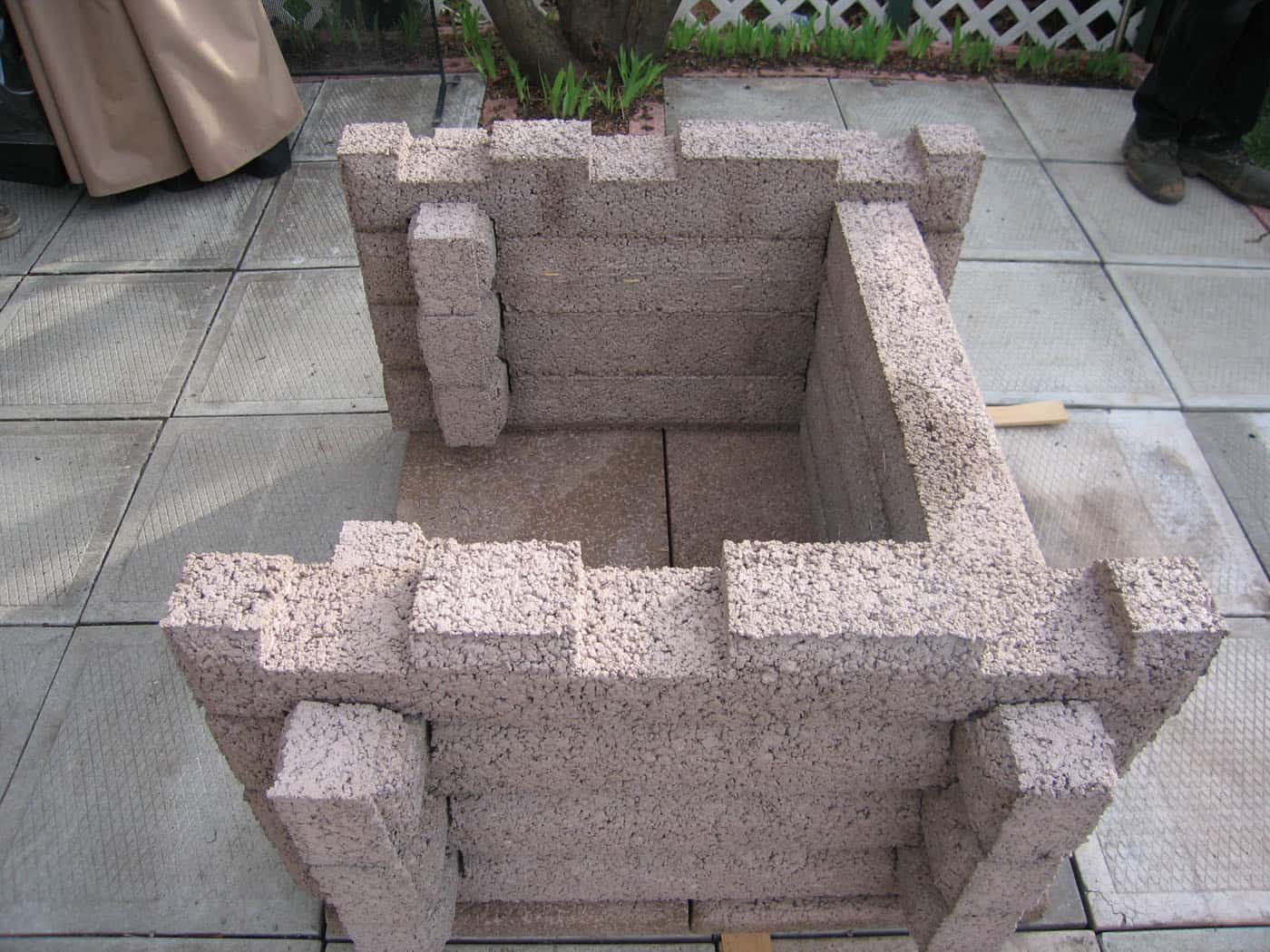

Place the 2 blocks 5 Notches 34” so that their central mortises are off-center toward the front.

Place at the front and at the back a block 42” (4 notches) and 2 little blocks of 12” in the middle. They will support your accessories.

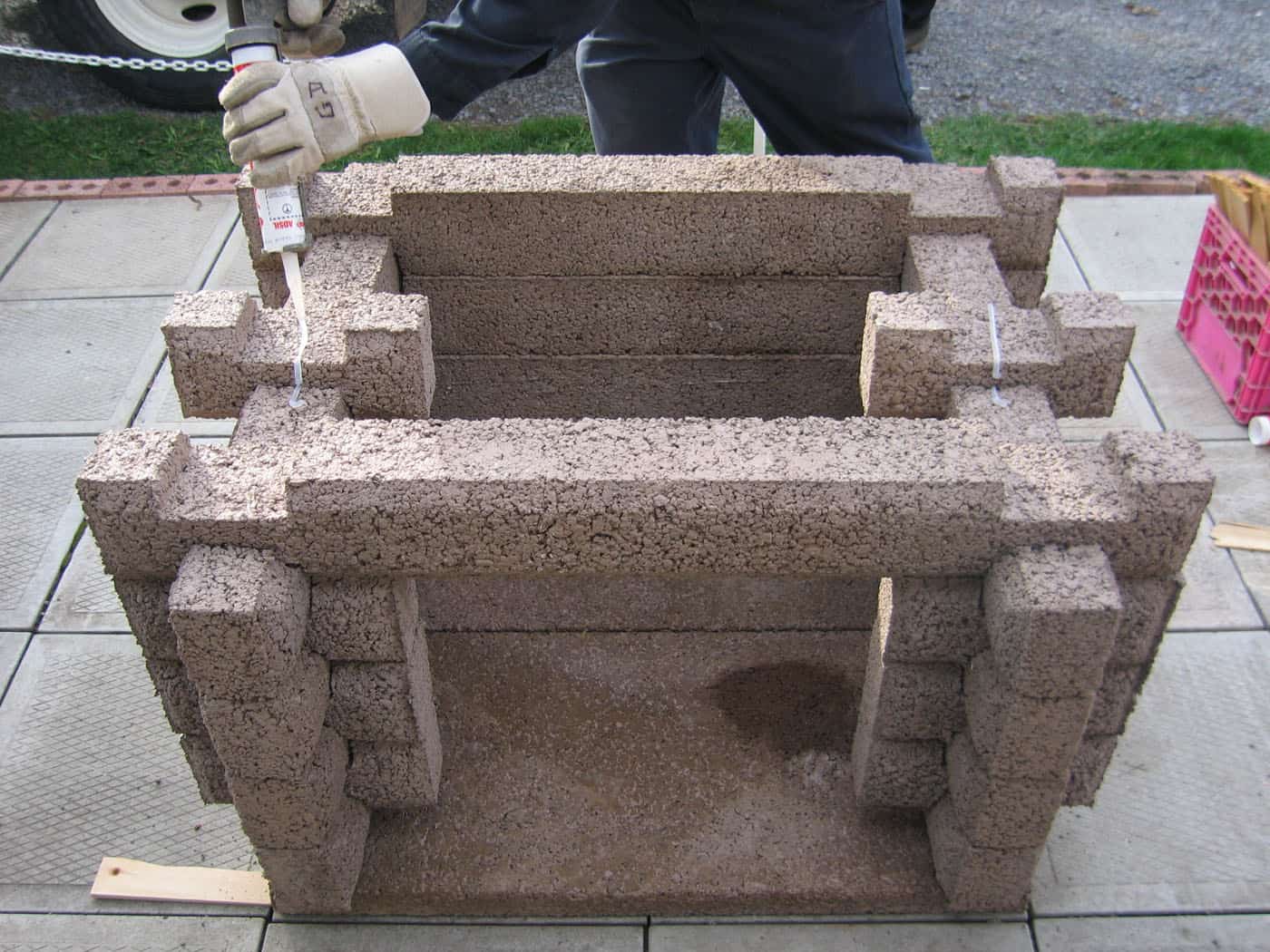

Tip : Put some silicone under and on these 2 small blocks to prevent the smoke comes out from there.

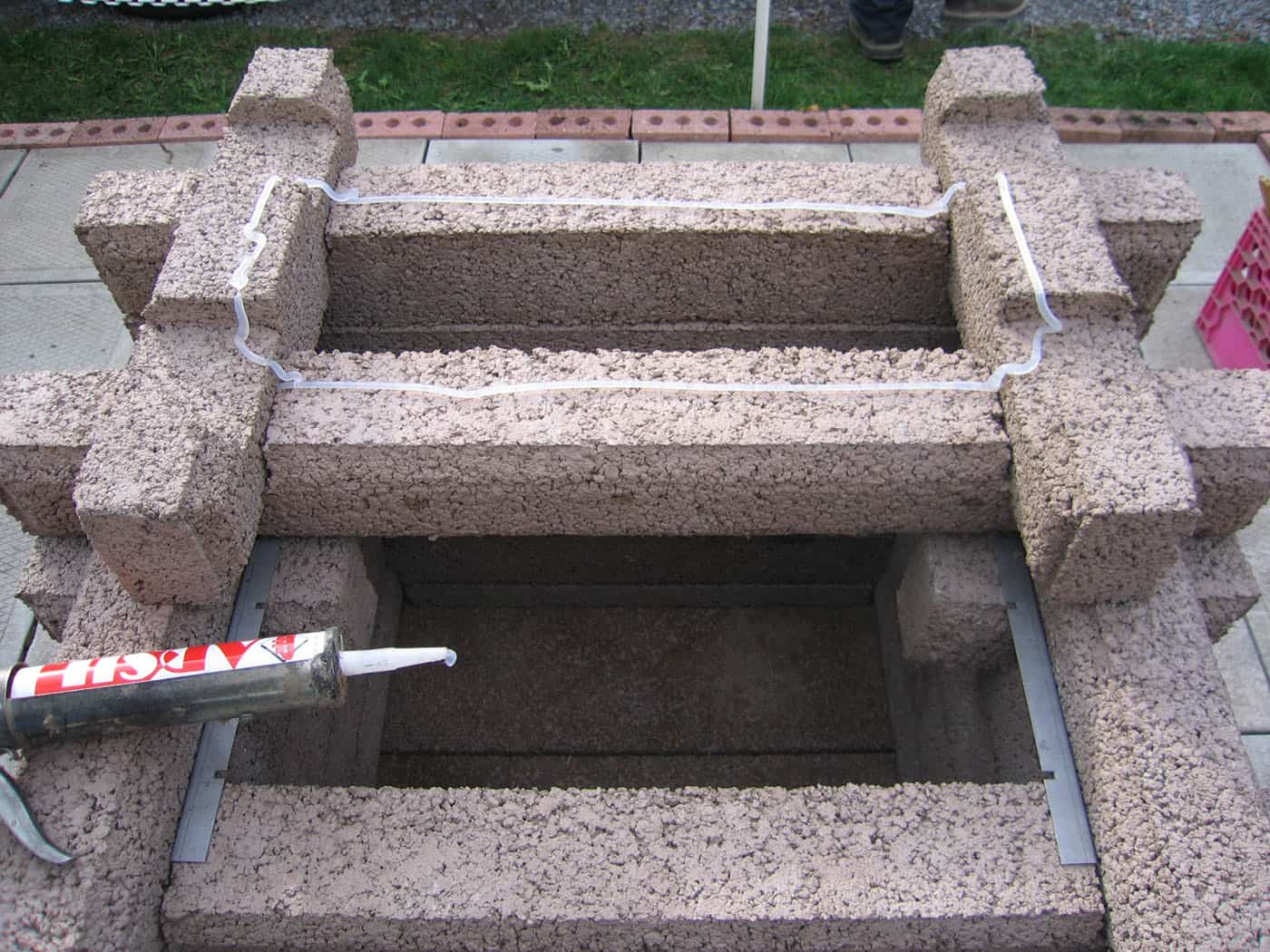

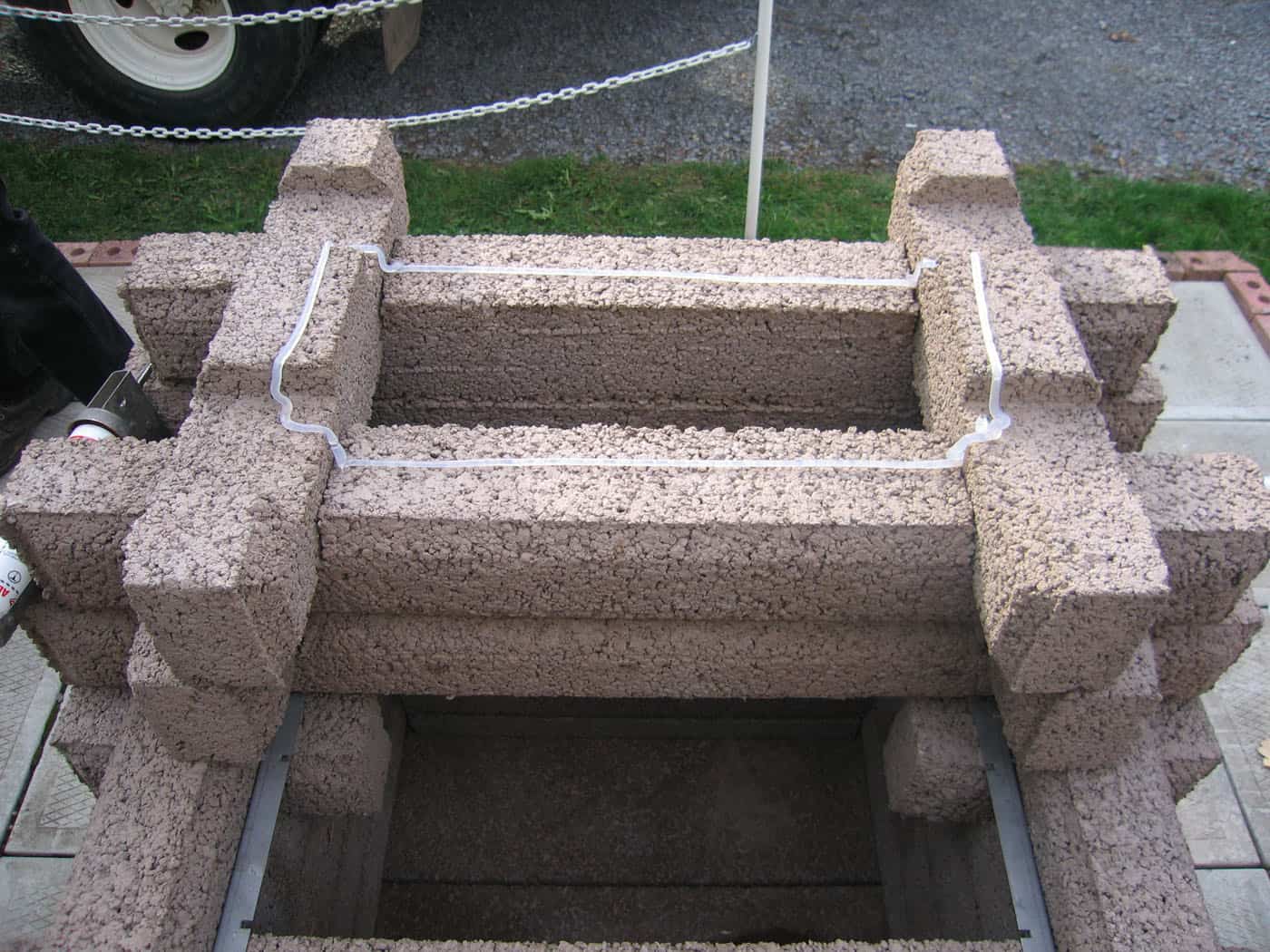

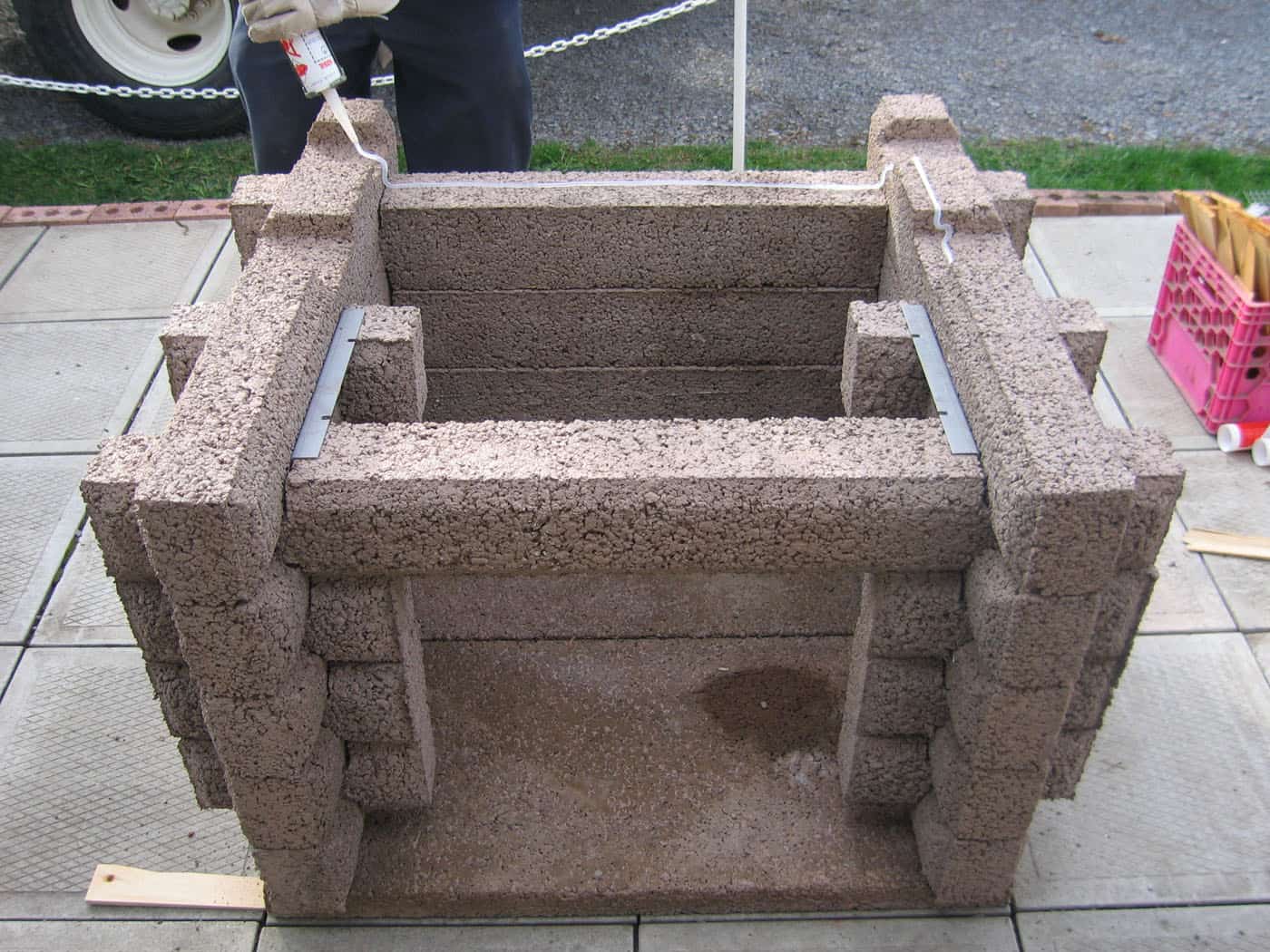

Place the 2 blocks Arm 5 Notches 34”. From here you can start putting a thin fillet of silicone (1/4 inch) in the chimney section. Put in place your slides so that you can remove them at any time

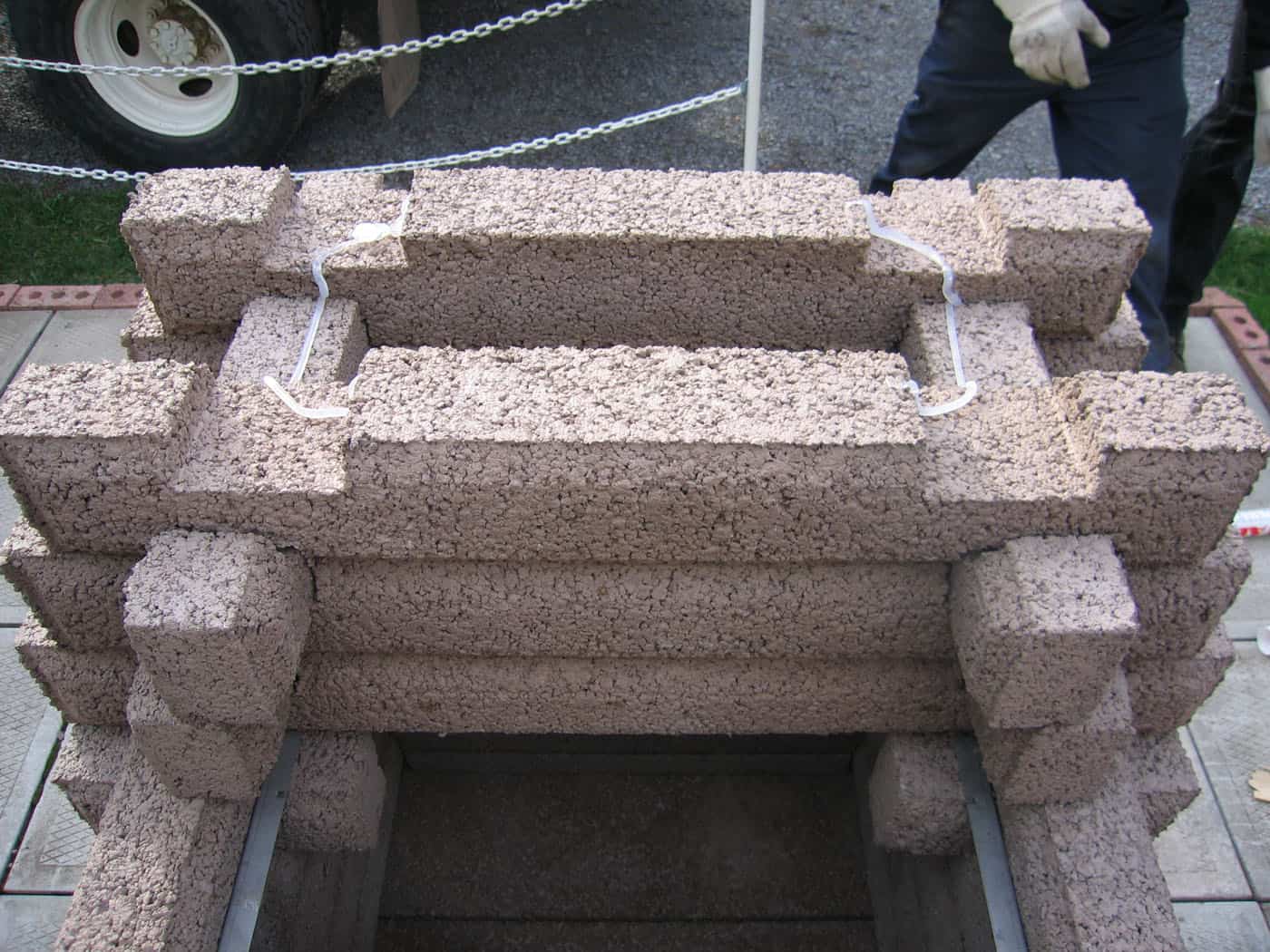

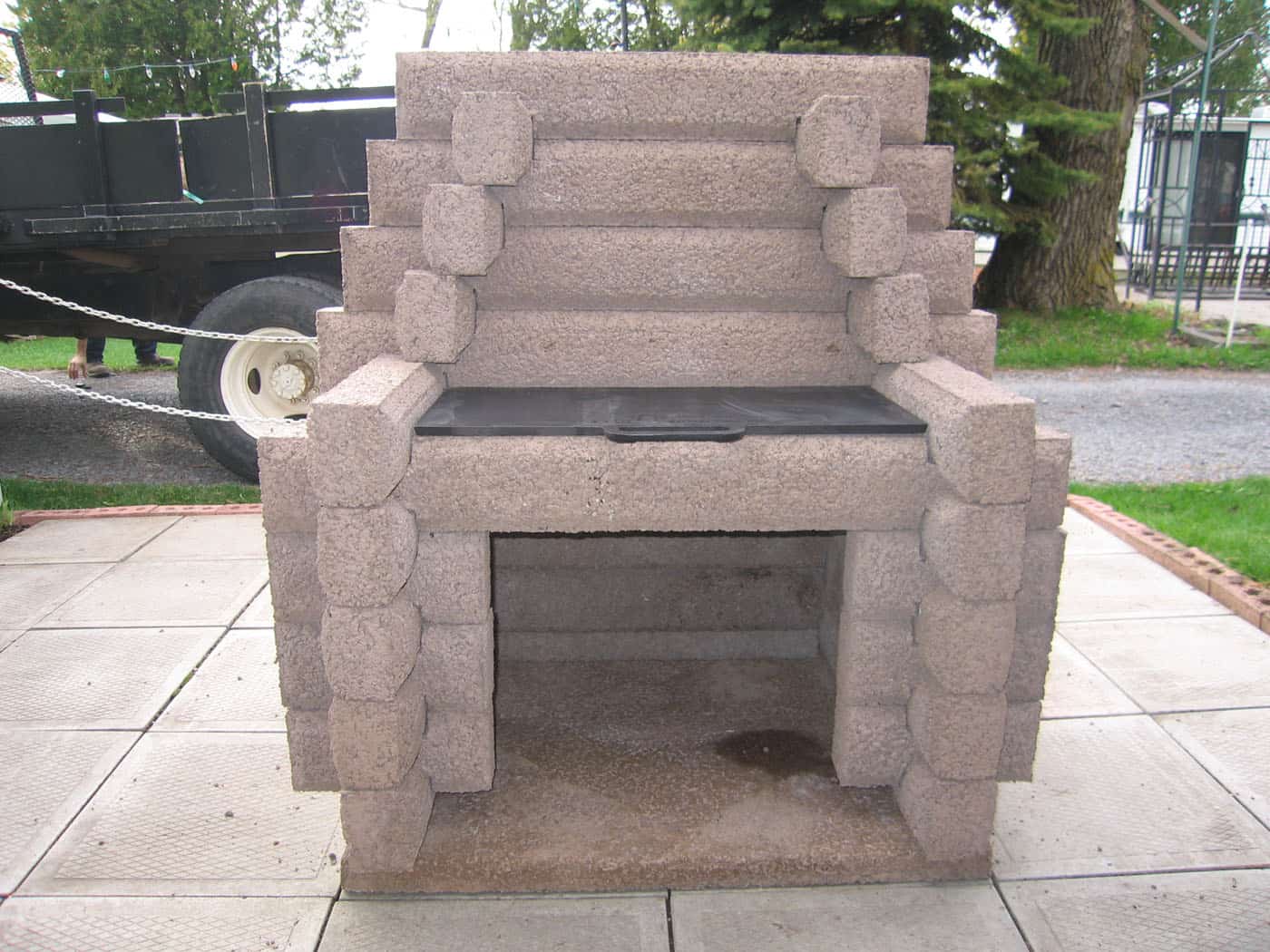

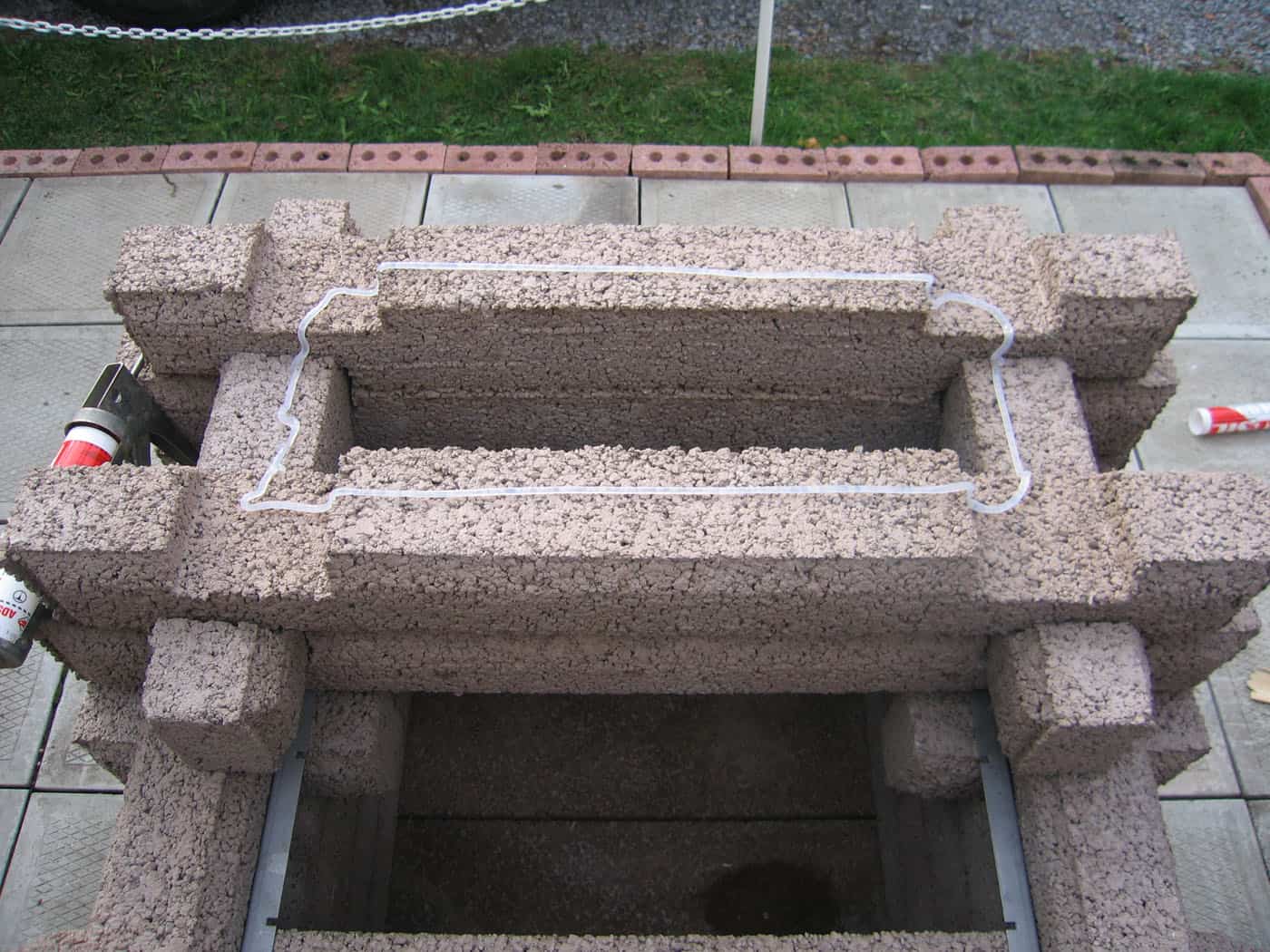

Place the 2 blocks Chimney 42” (4 off-center notches). As the chimney will decrease, put the silicone closer to the inside. This way it will not be visible from the outside when you will put the next stone. At this stage, you can try your plate. You will find out if your new outdoor fireplace is square. It is still time to move your fireplace a little.

Place 2 blocks of 21 3/4” on each side of the chimney.

Place 2 blocks Chimney 38 5/8”.

Place 2 blocks of 21 3/4”.

Place 2 blocks Chimney 35 1/16”.

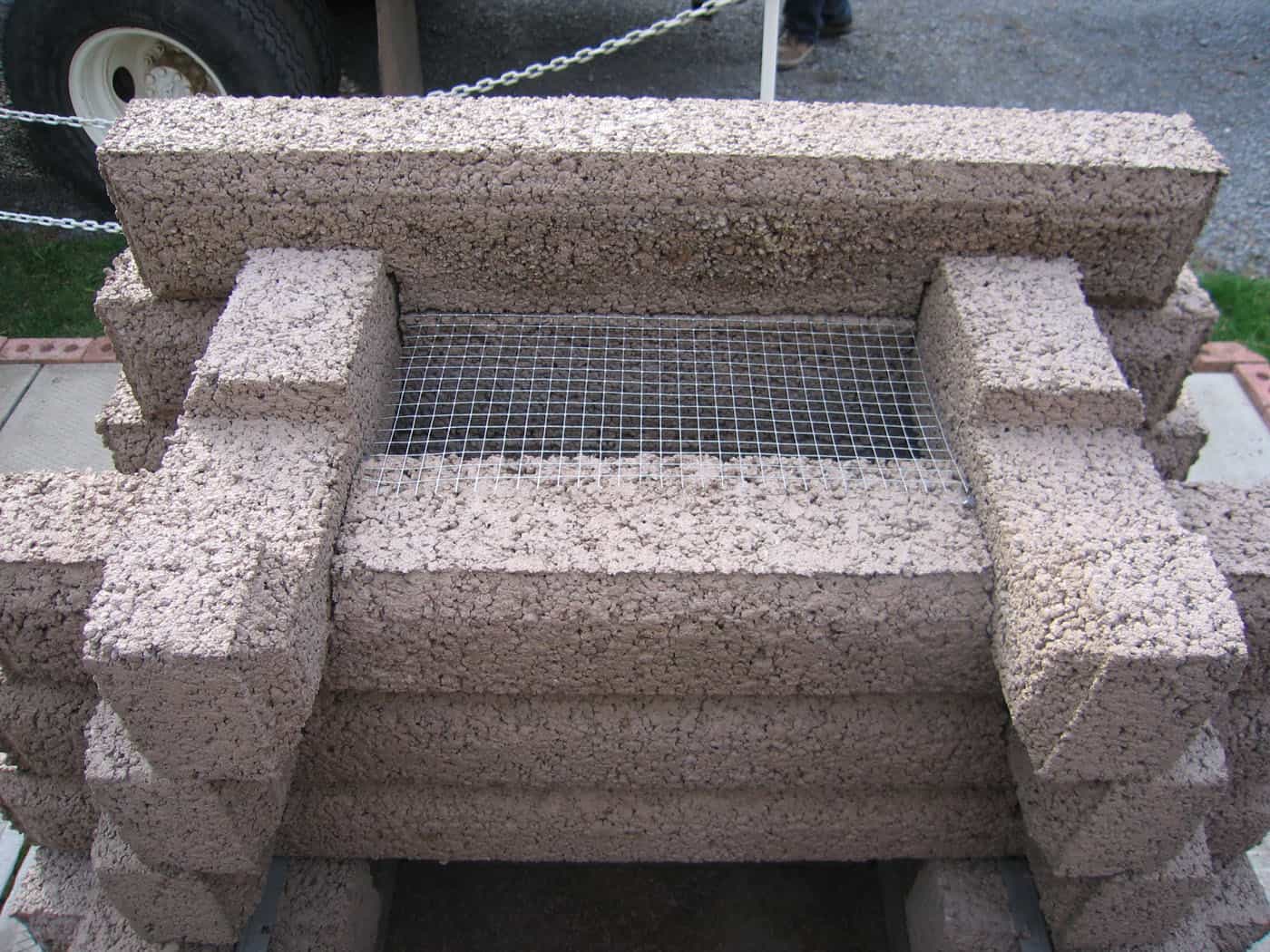

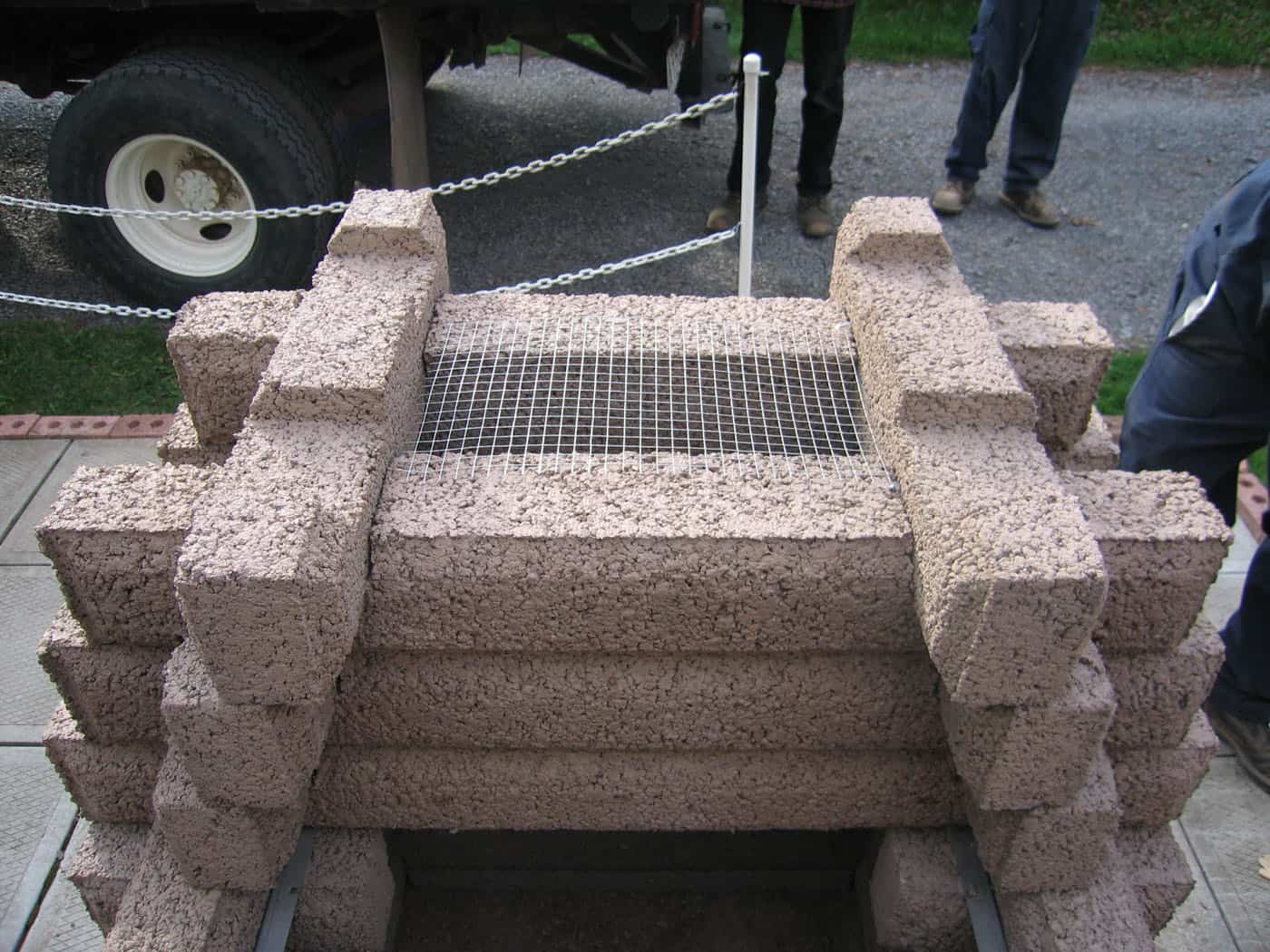

Tip : Do not apply silicone in your last row as it is where you will put the spark catcher. Over time it will burn and it will easier to replace.
