Picnic with back + Fireplace

( Picnic with back with an additionnal row )

To facilitate the assembly of your outdoor fireplace, refer to the plan received at the purchase of your fireplace and to the assembly's general section for more advices.

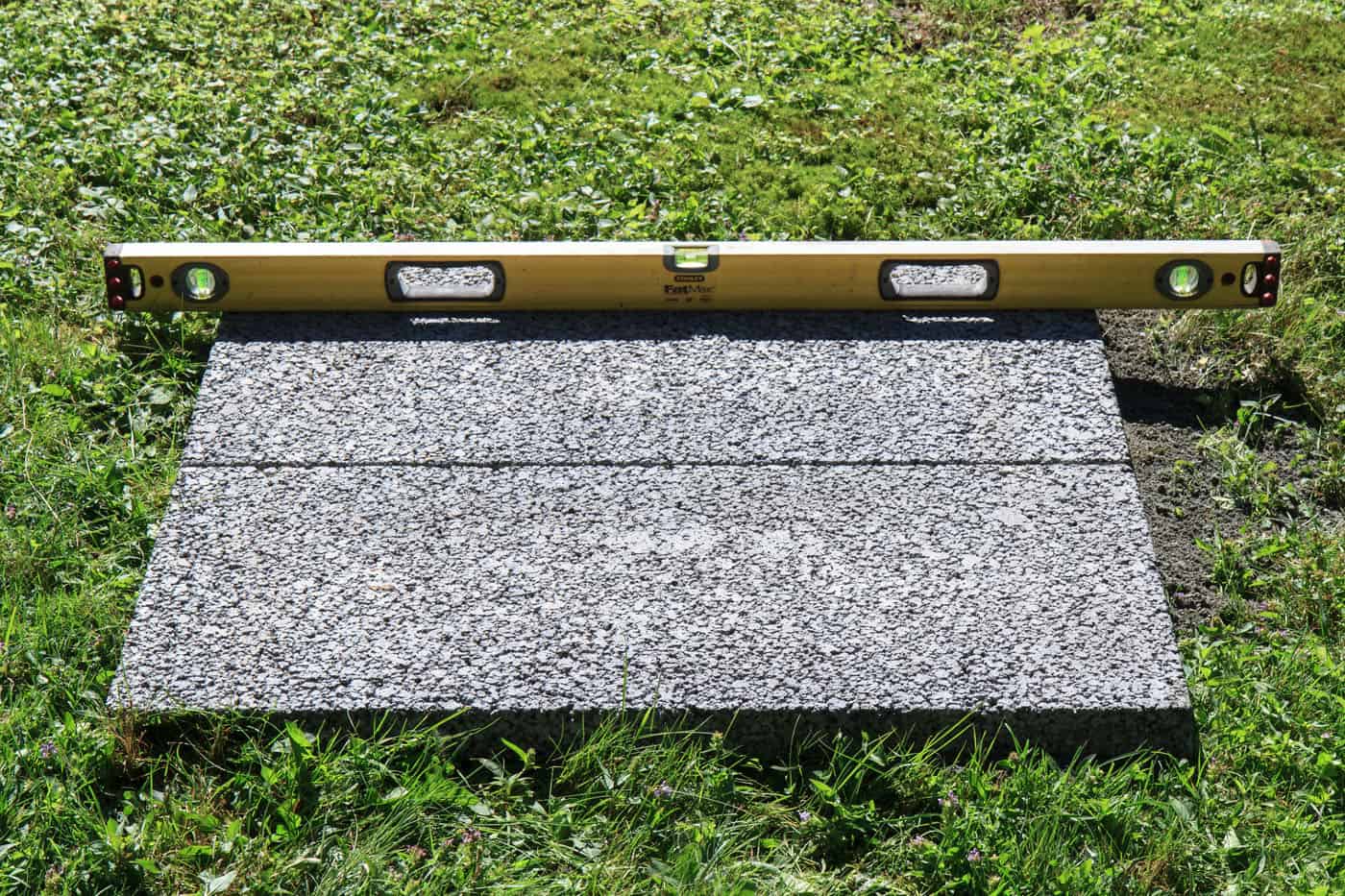

Put the tiles at the level.

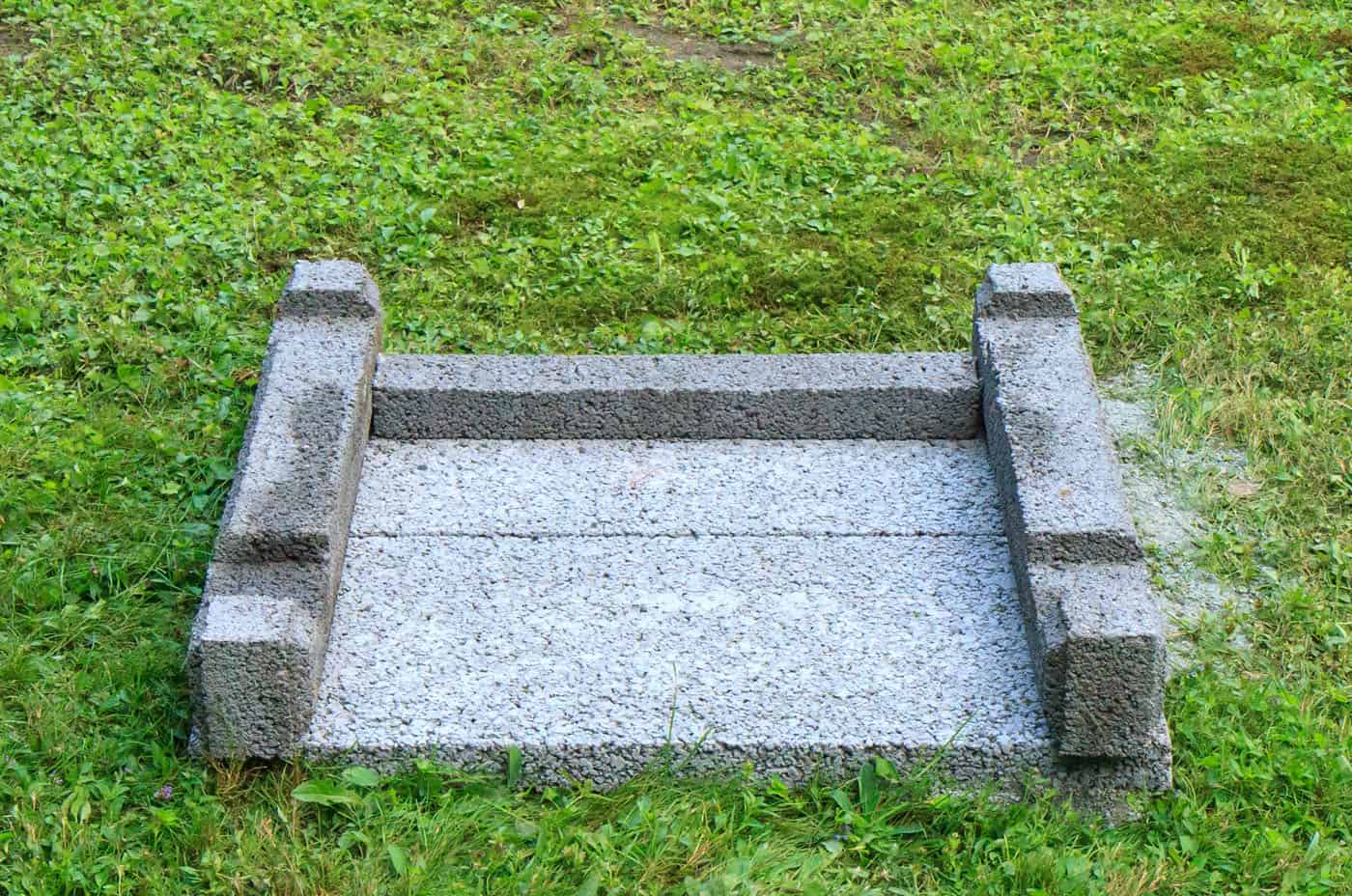

Put the 2 blocks Start 34” and the Half-Block 26” between the rear mortises.
Caution : Do no confuse the Start 34″with the block Top 35 1/16” which look the same but is longer by about 3/4”.
Reminder : The flat side of each block goes inside the fireplace.

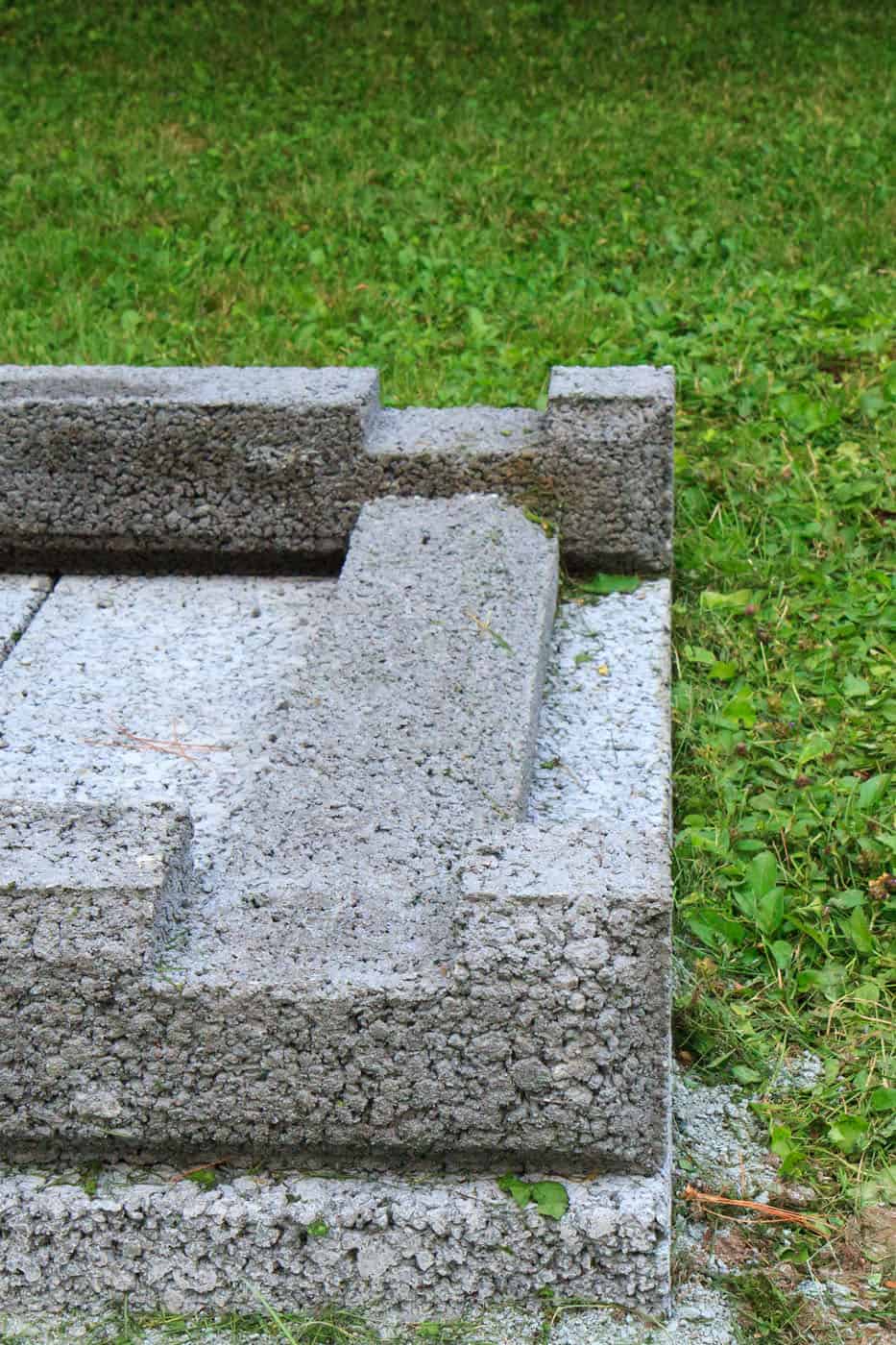

Put the 2 blocks Start 34” so that their back are in line with the base. This way, they will exceed by the front; your fireplace will be prettier when assembled this way.

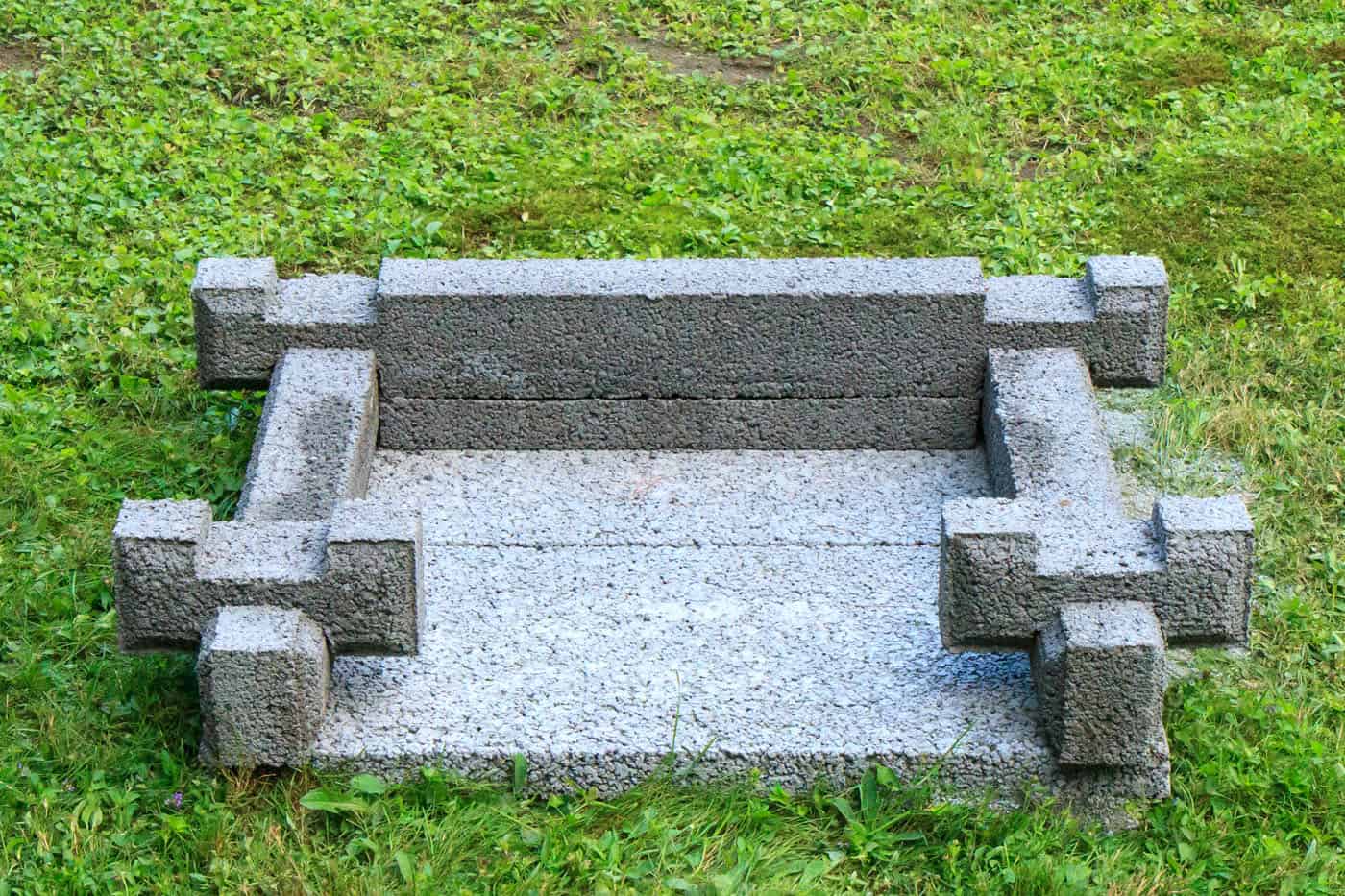

Put a 42” (4 notches in line) at the back and the 2 little blocks of 12” at the front. In putting them down, gently tap the blocks. If there were small stones, that would crush them.
Make sure that your blocks are well placed flat over each other.

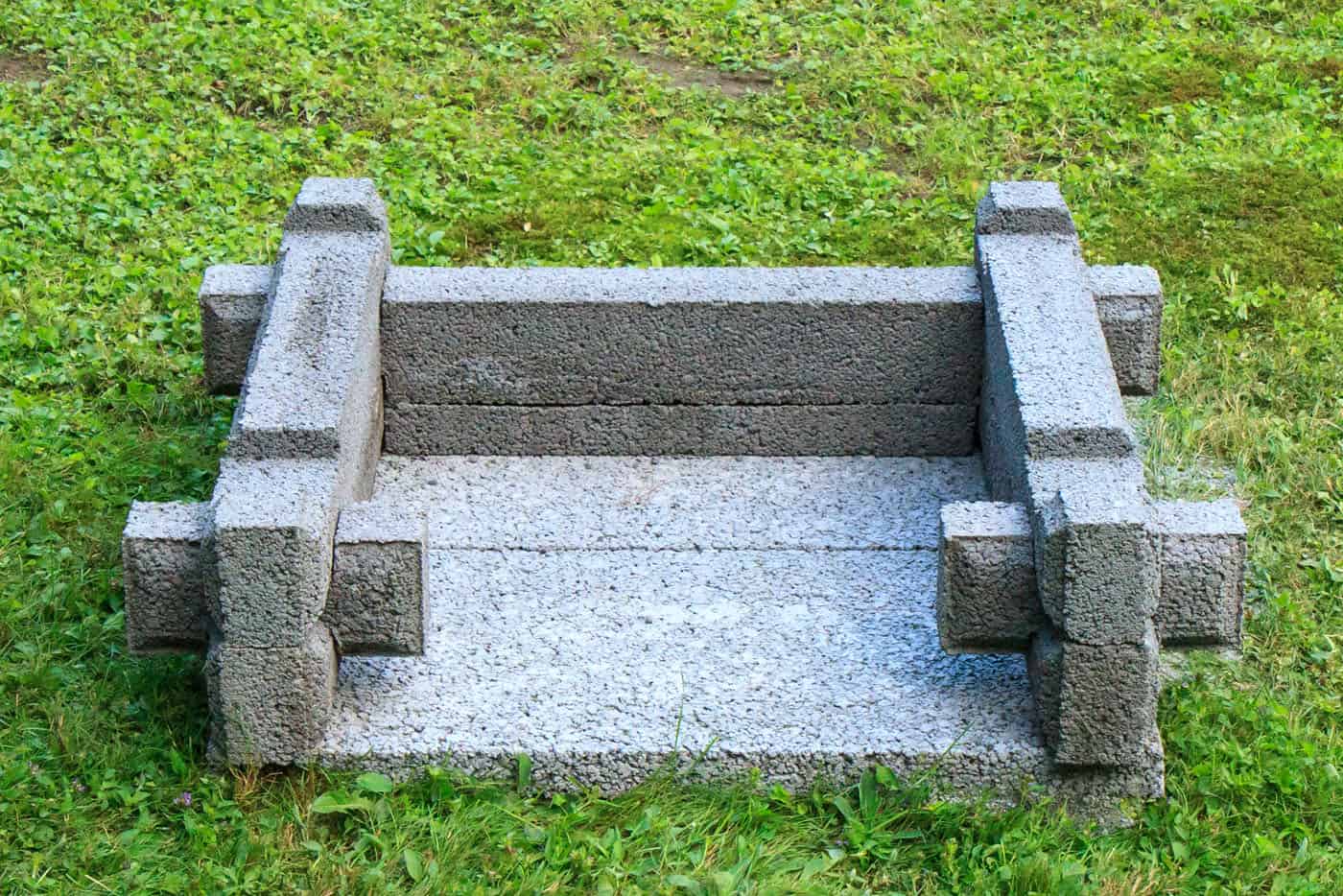

Put a 42” (4 notches in line) at the back and the 2 little blocks of 12” at the front.

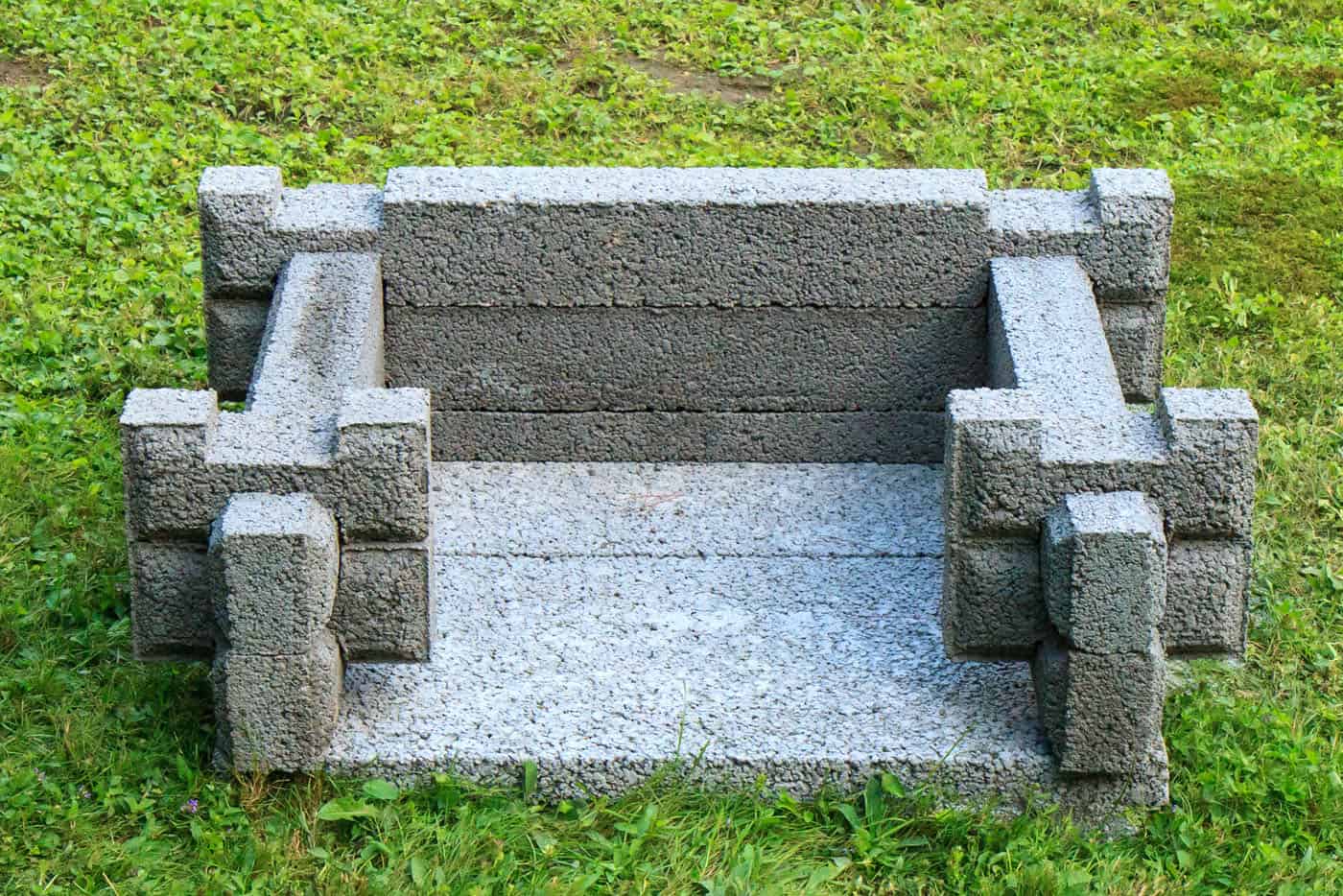

Place the 2 blocks 5 Notches 34” (left and right) so that their central notches are off-center toward the back.

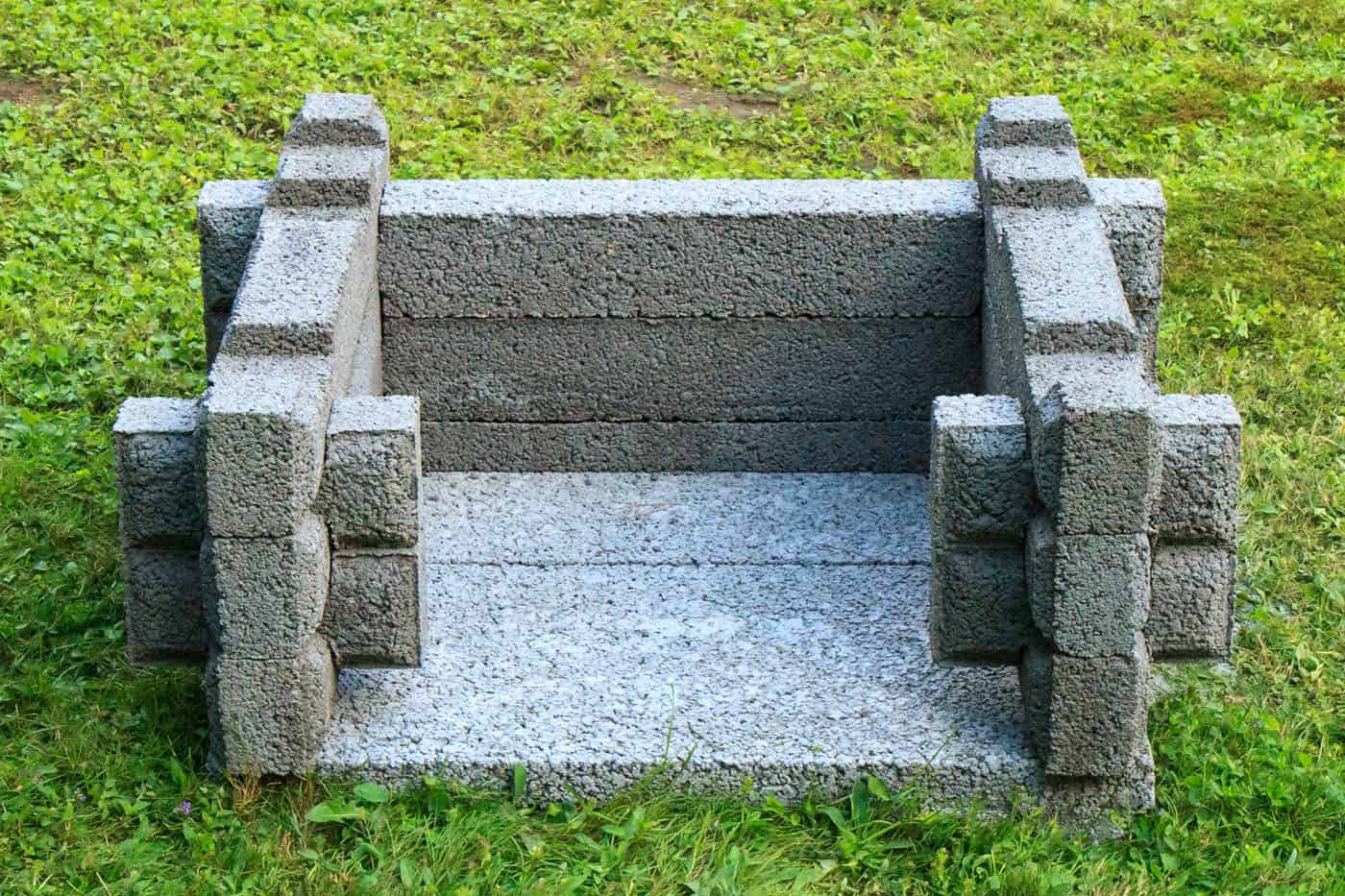

Place at the back a 42” (4 notches in line), 2 little blocks of 12” at the front and 2 others in the middle notch. They will support your accessories later on.

Place at the back a 42” (4 notches in line), 2 little blocks of 12” at the front and 2 others in the middle notch. They will support your accessories later on.

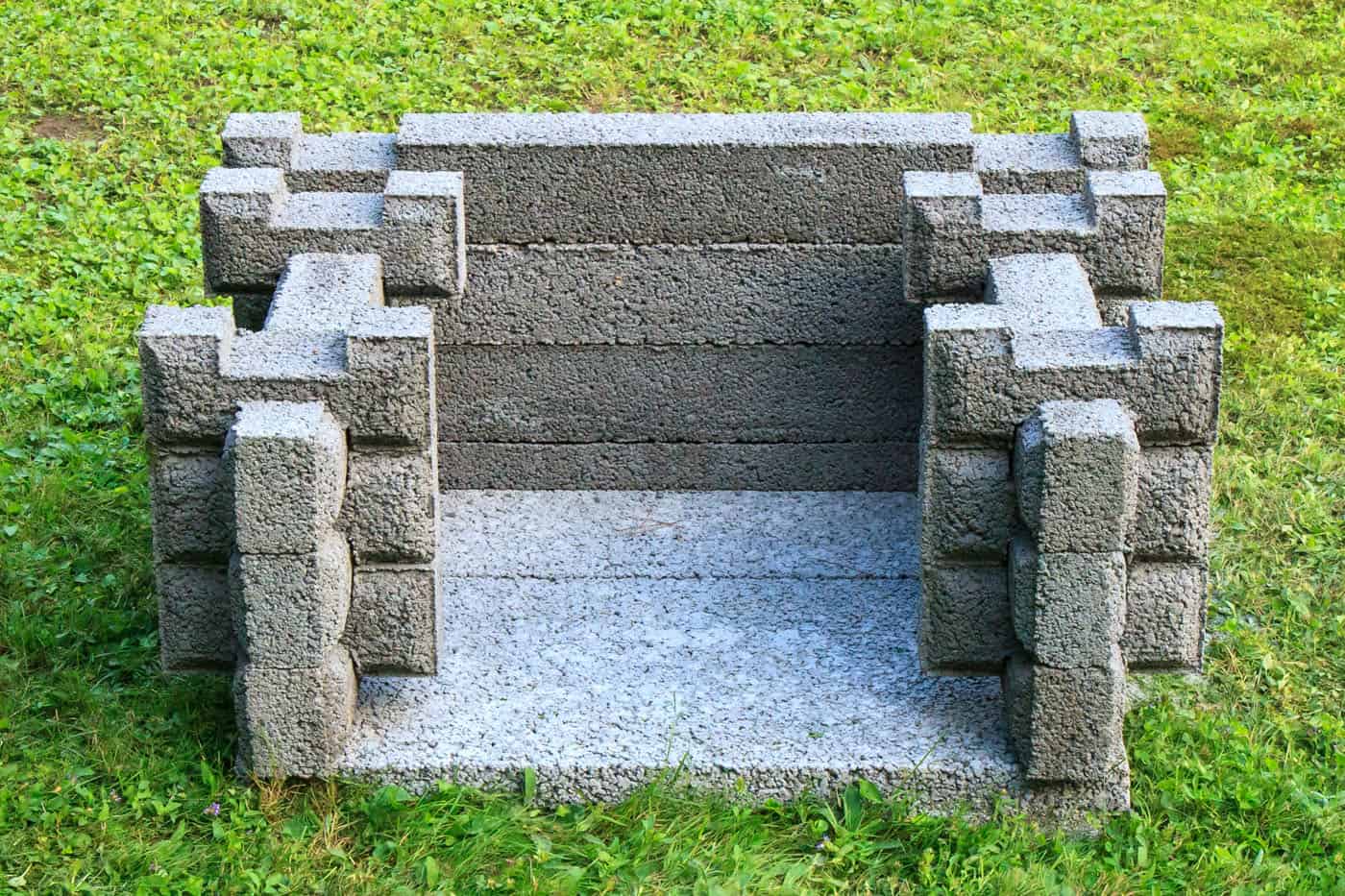

Place the 2 blocks Arm 4 Notches 34” left and right.

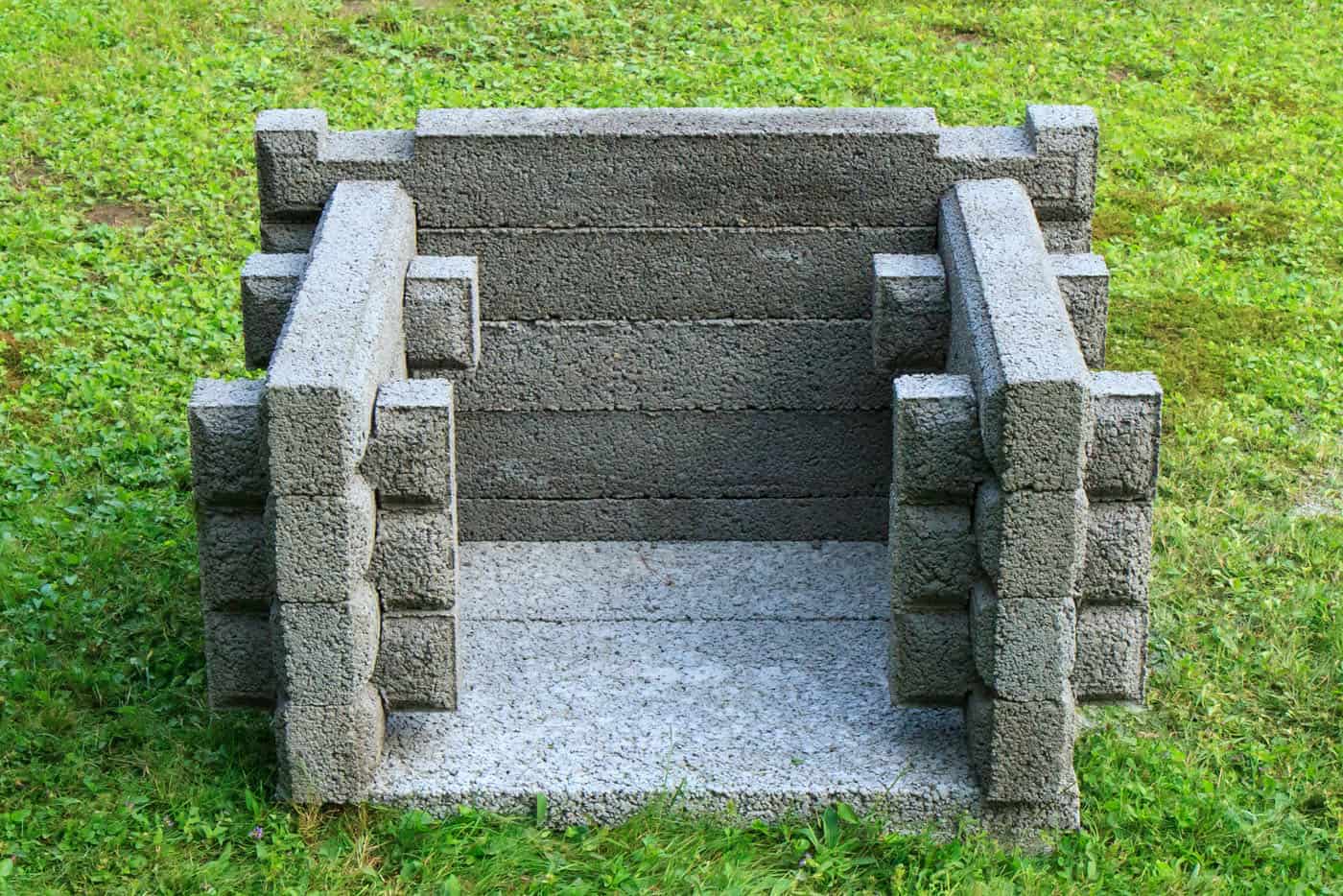

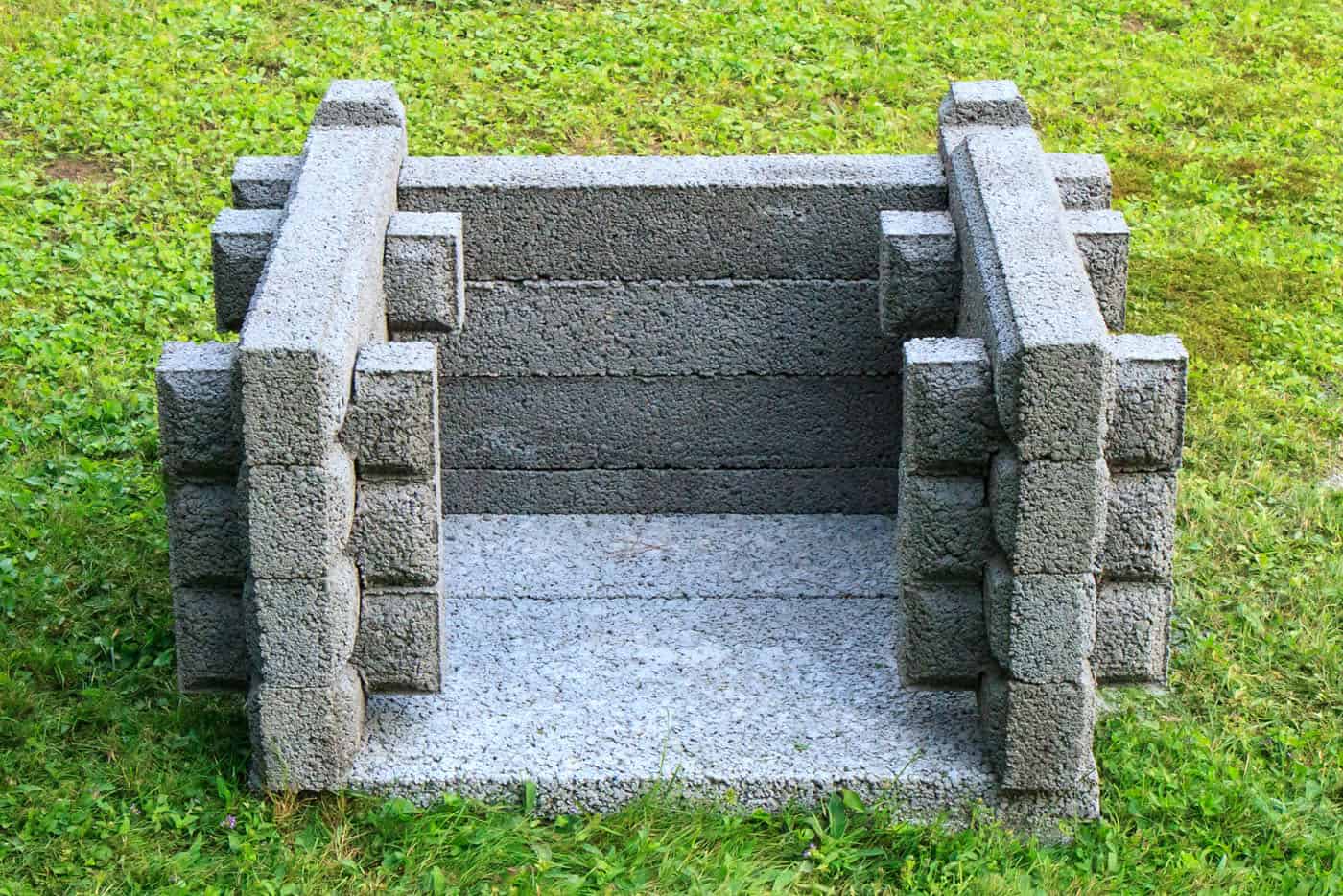

Place at the back a 42” (4 notches in line).

Place 2 little blocks of 12”.

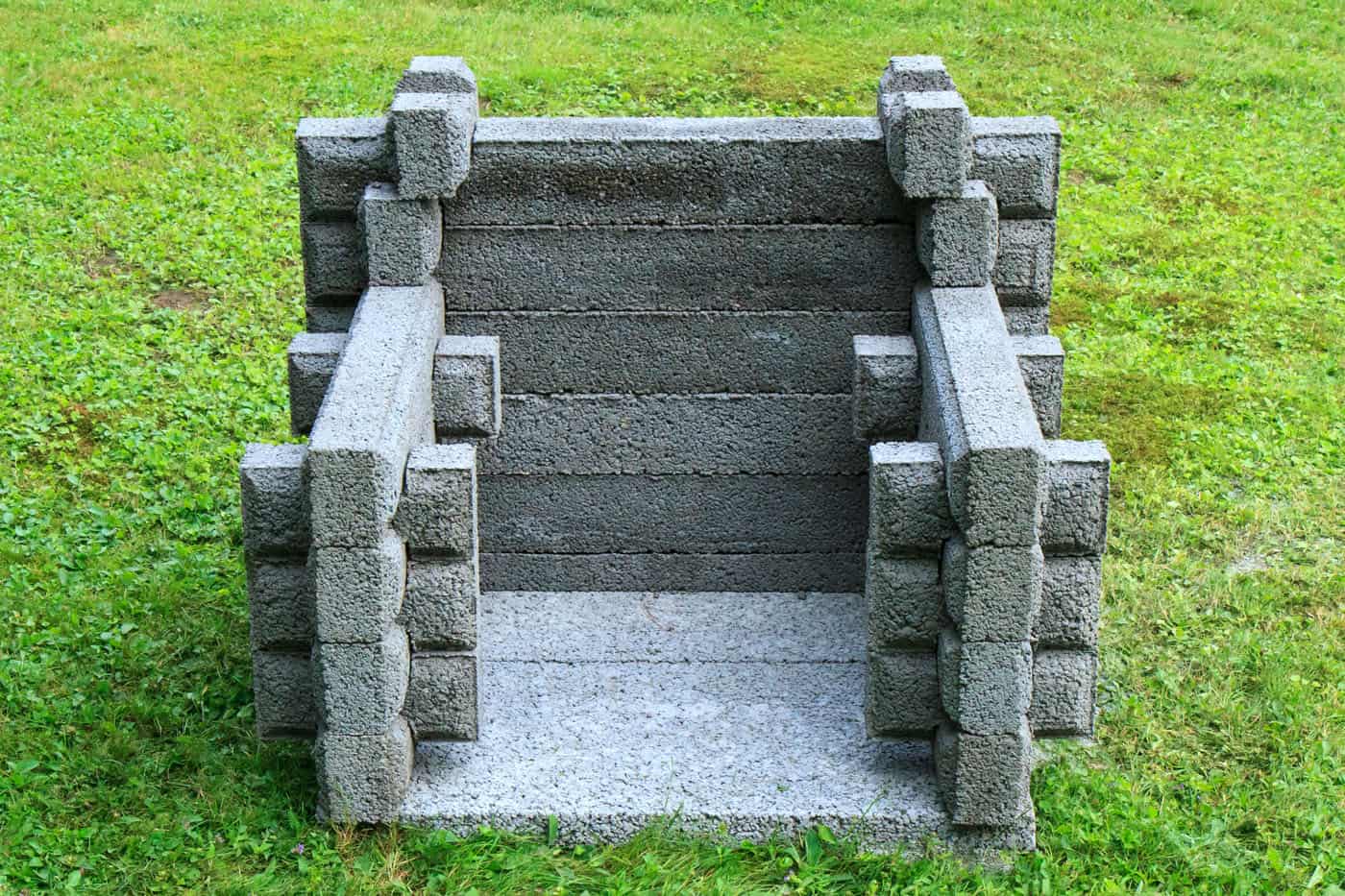

Place the block Chimney 42” (4 off-center notches).

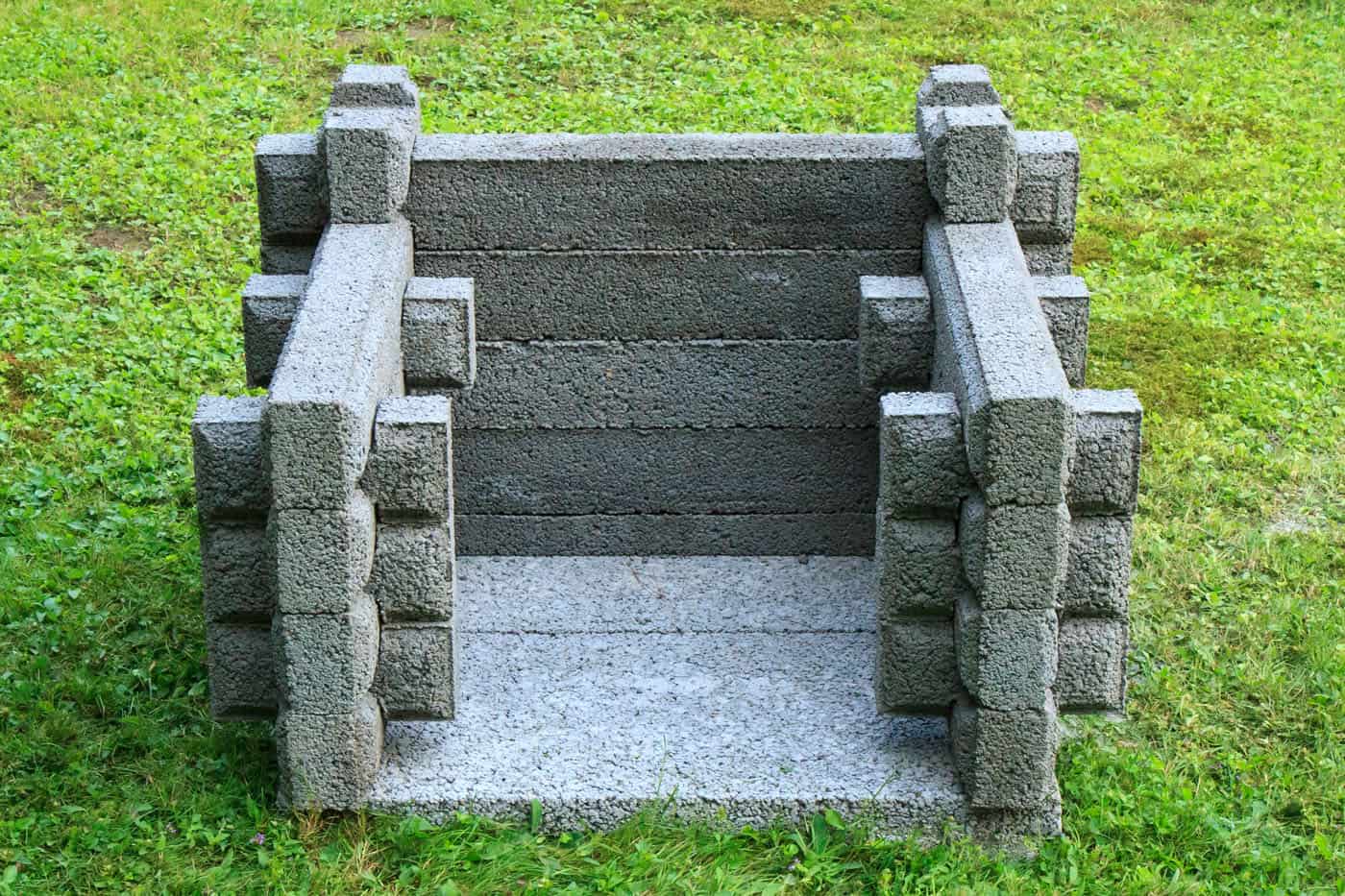

Place 2 little blocks of 12”.

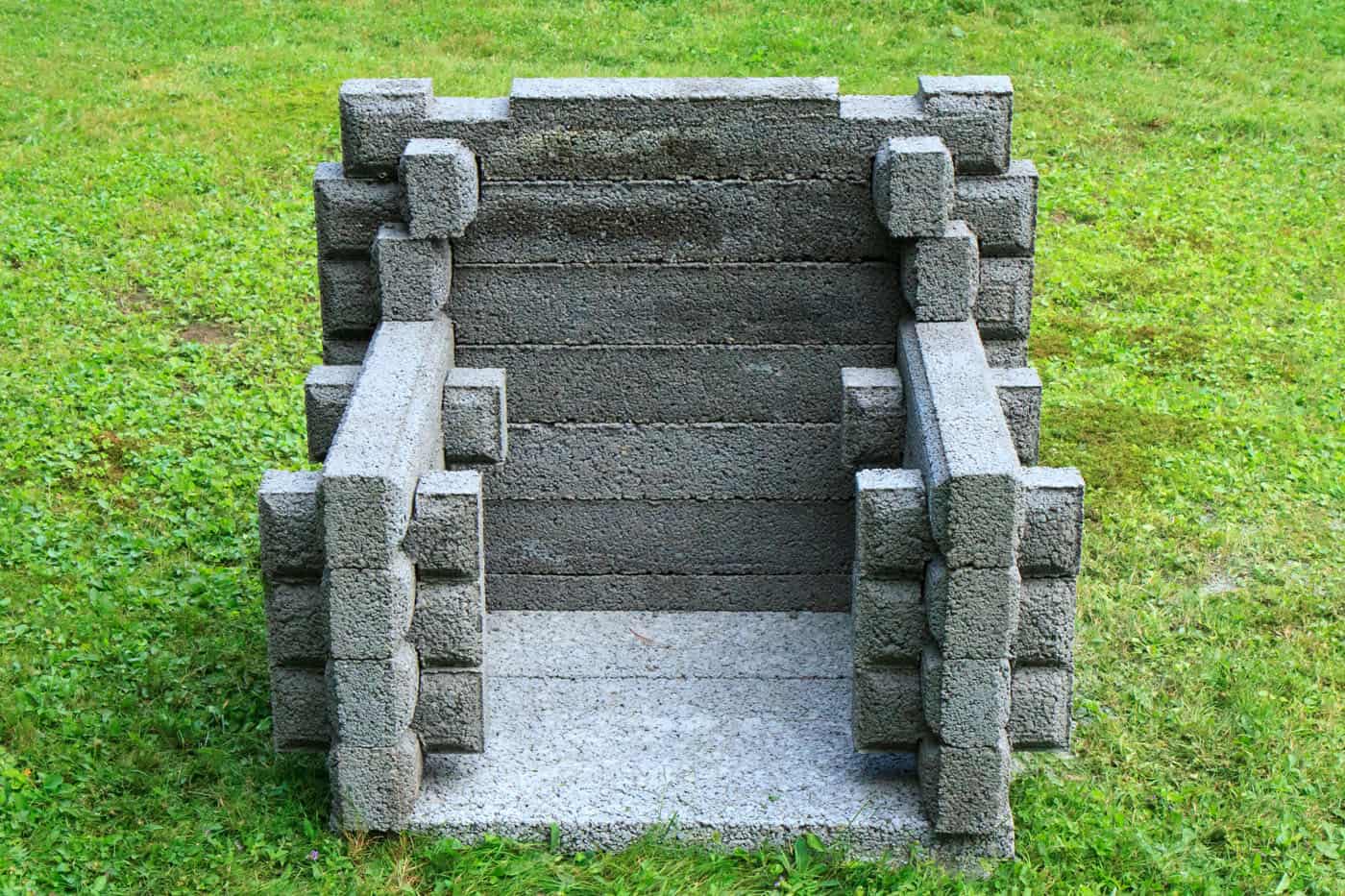

Place the block Chimney 38 5/8” (4 off-center notches).

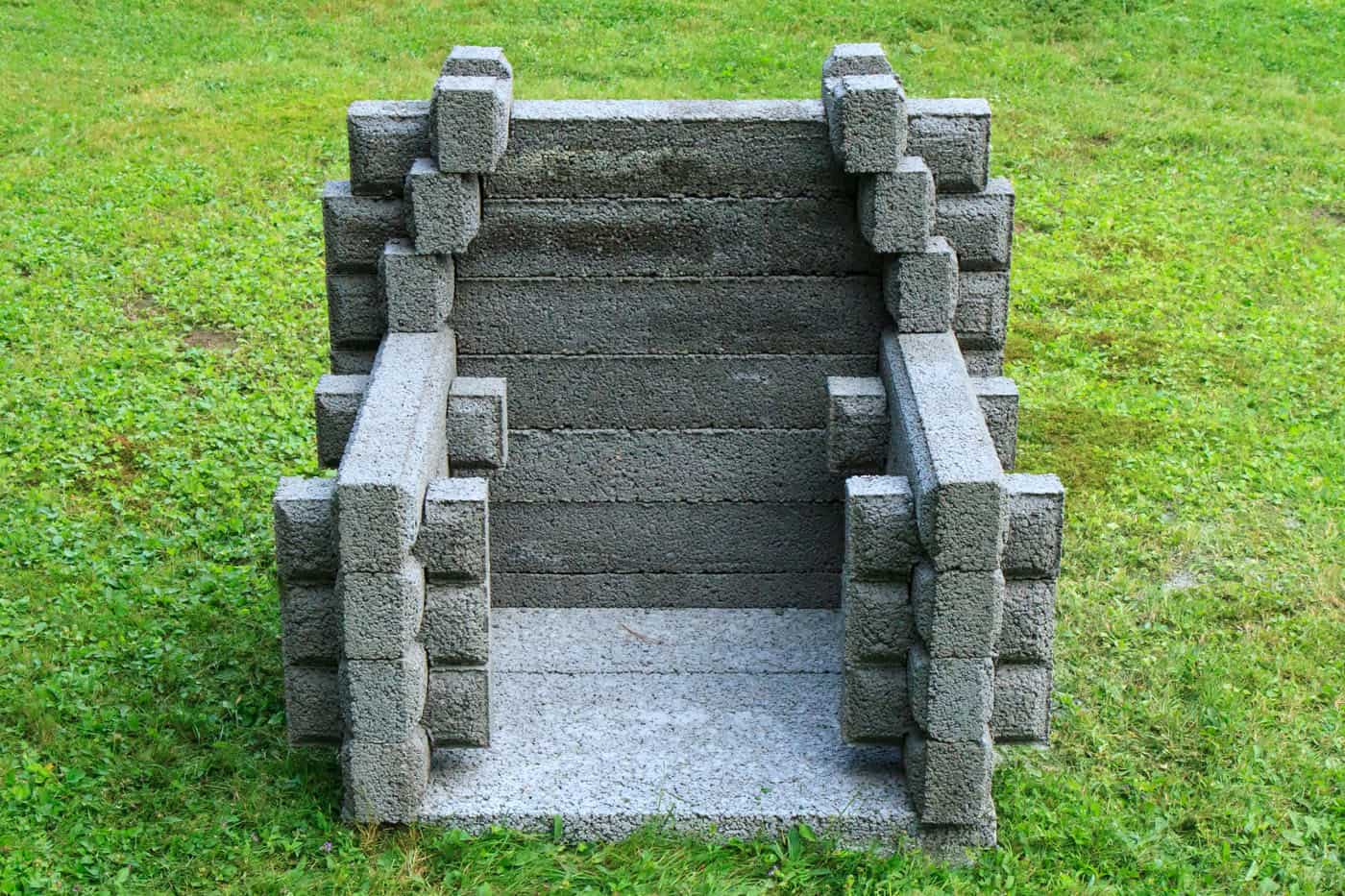

Place 2 little blocks of 12”.

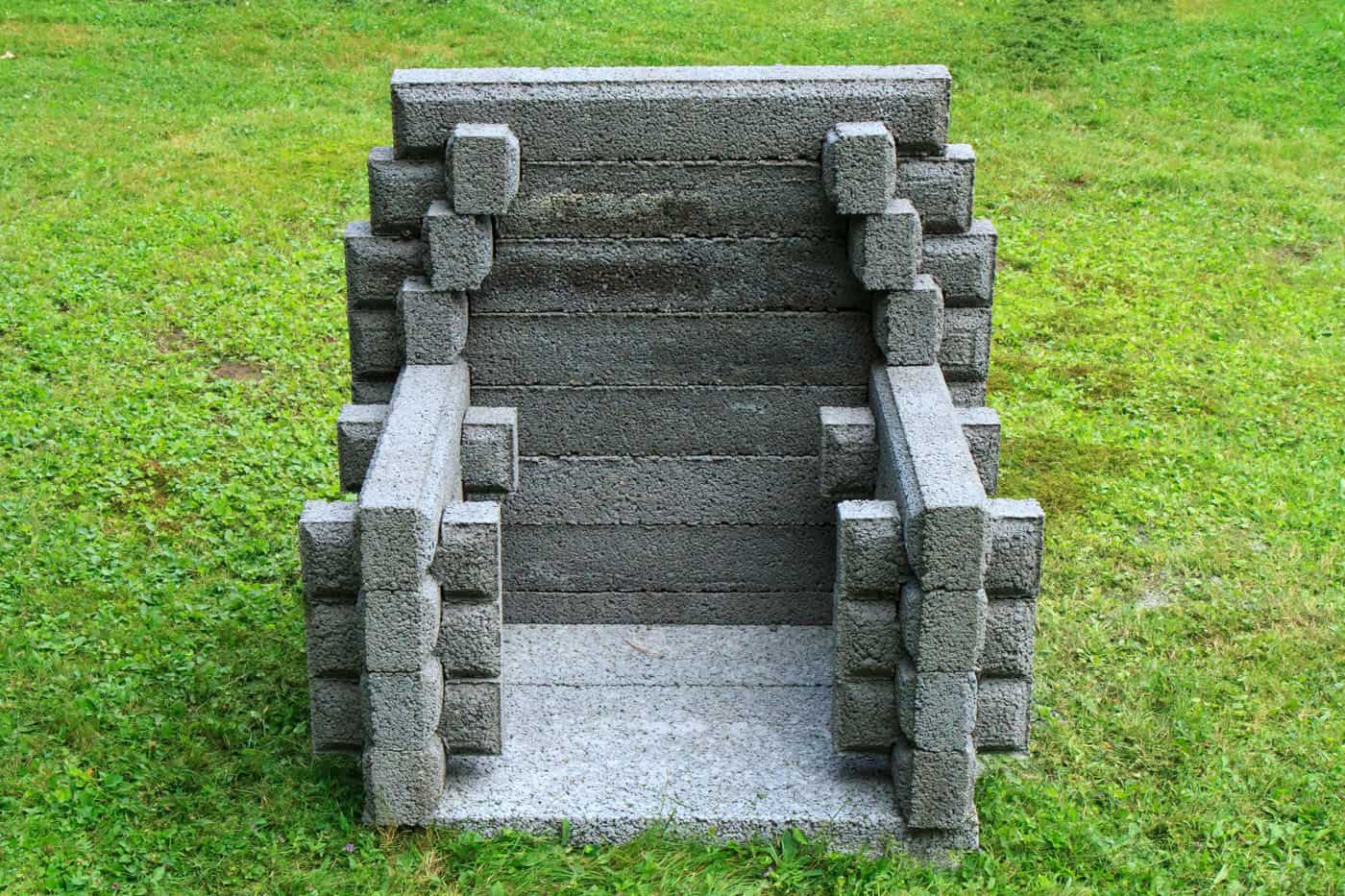

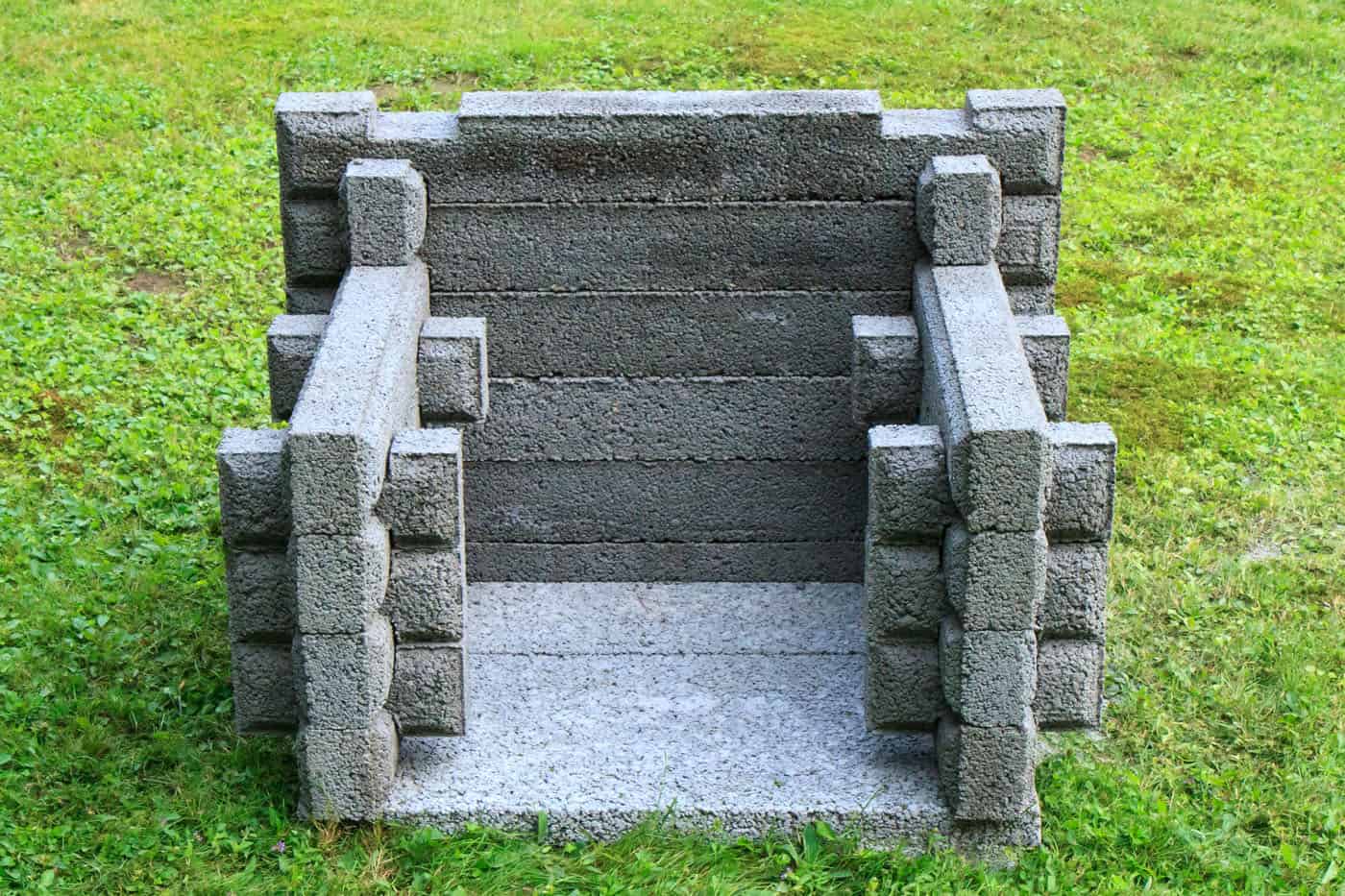

Finally place the block Top 35 1/16”.
That ends the assembly of Picnic with back with additional row.
