Fireplace #200-1D

To facilitate the assembly of your outside fireplace, refer to the plan received at the purchase of your fireplace and to the assembly's general section for more advices.

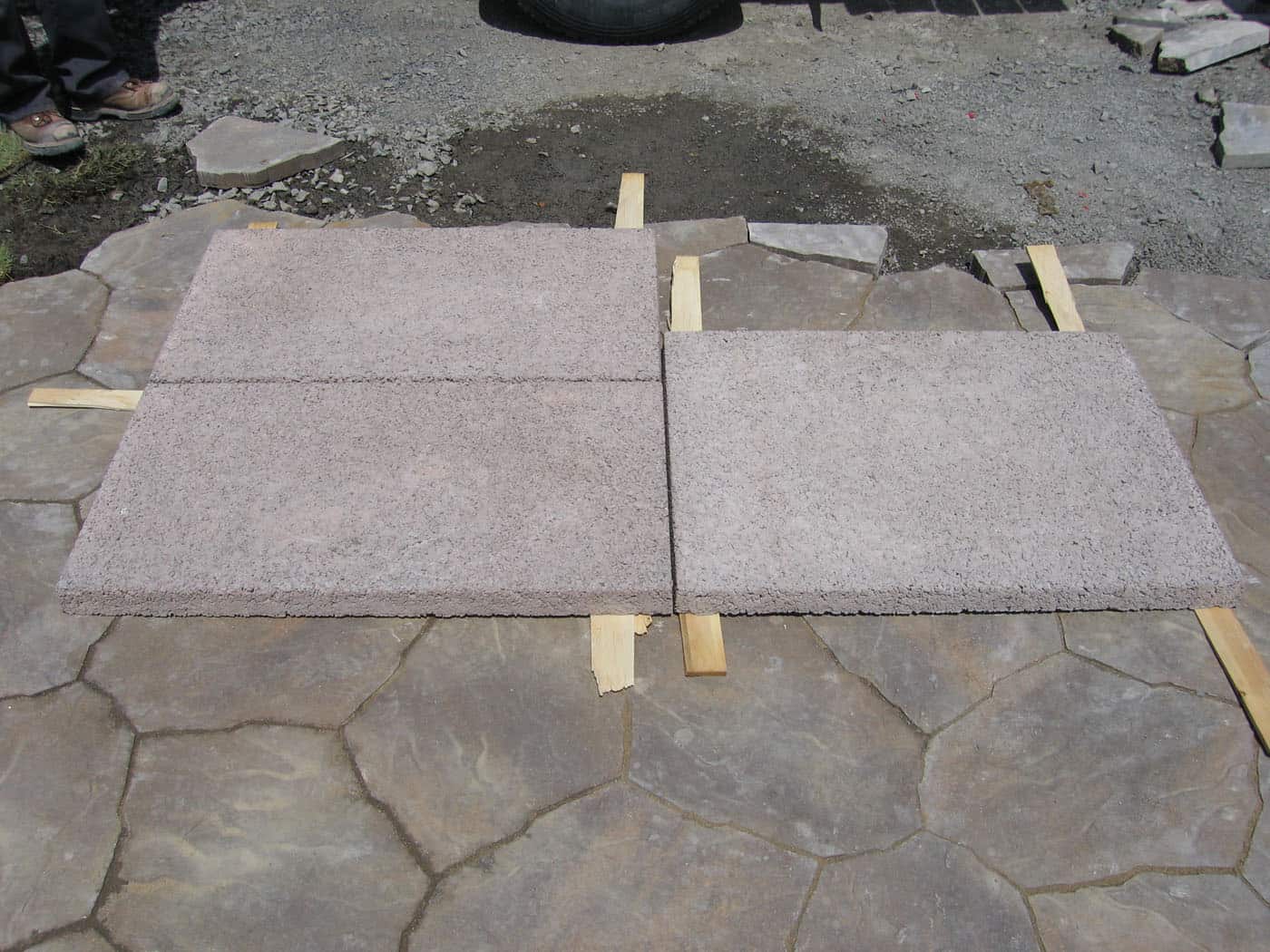

Put the tiles at the level.

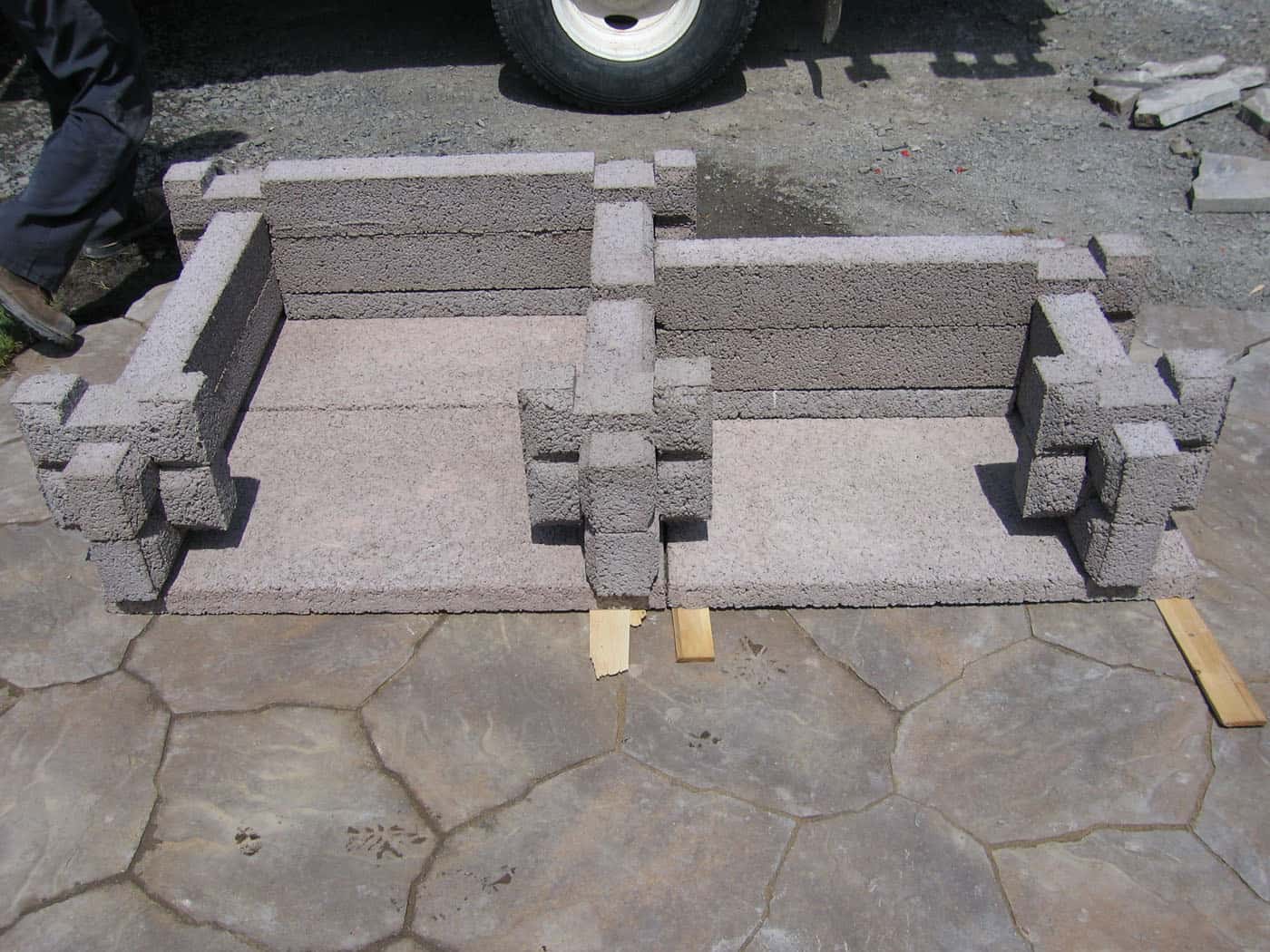

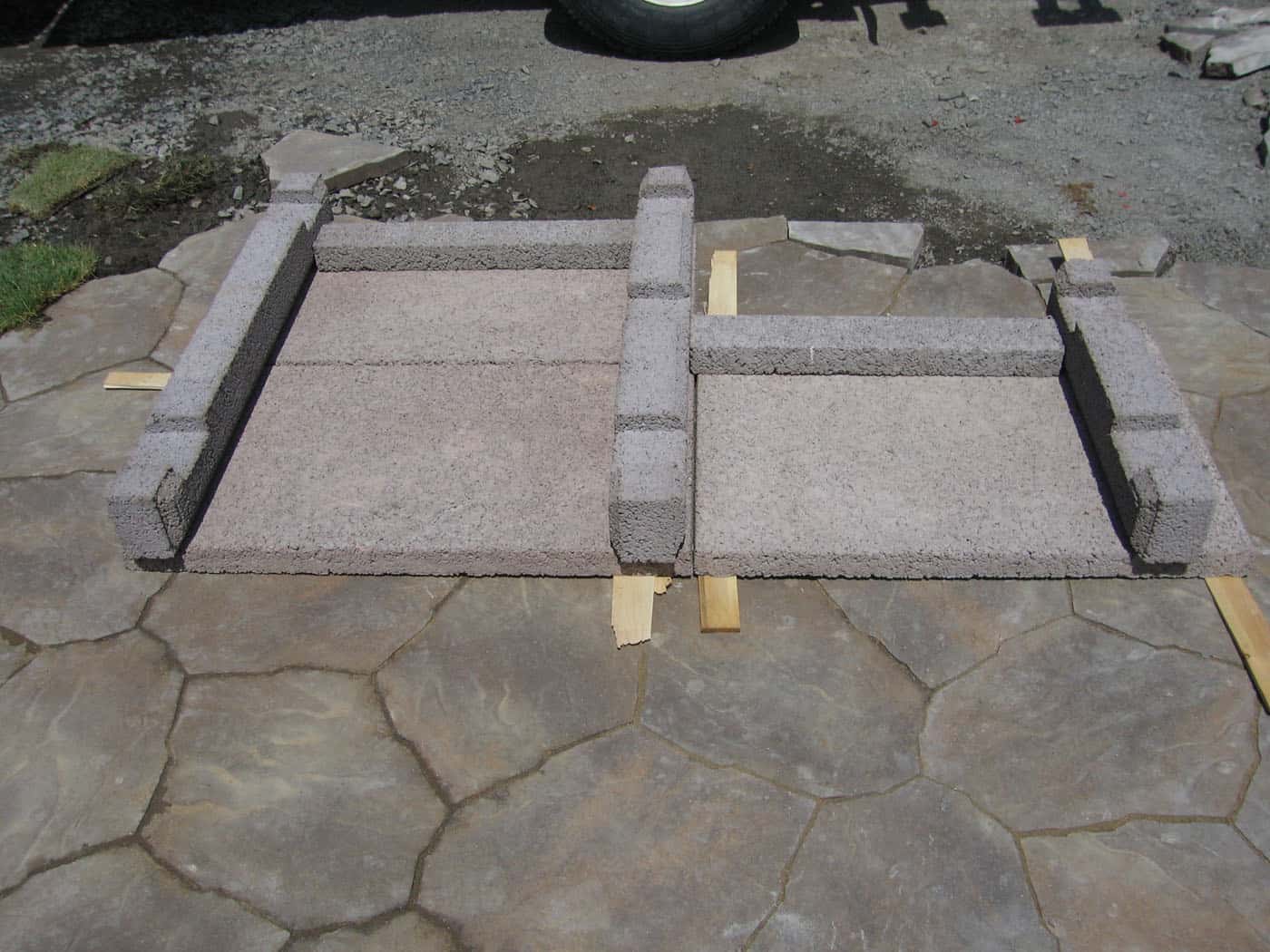

Place from left to right the Start 42”, an Half-Block 26”, the Start 3 Notches 42”, the other Half-Block 26” and the Start 26”. Place the Start 26” in line with the back of the tile. Place the others blocs so that the mortise can receive the subsequent blocks.
Tip : Mesure the distance at the front of the block and keep the same for the other Start blocks.
Reminder : The flat side of each block goes inside the fireplace.

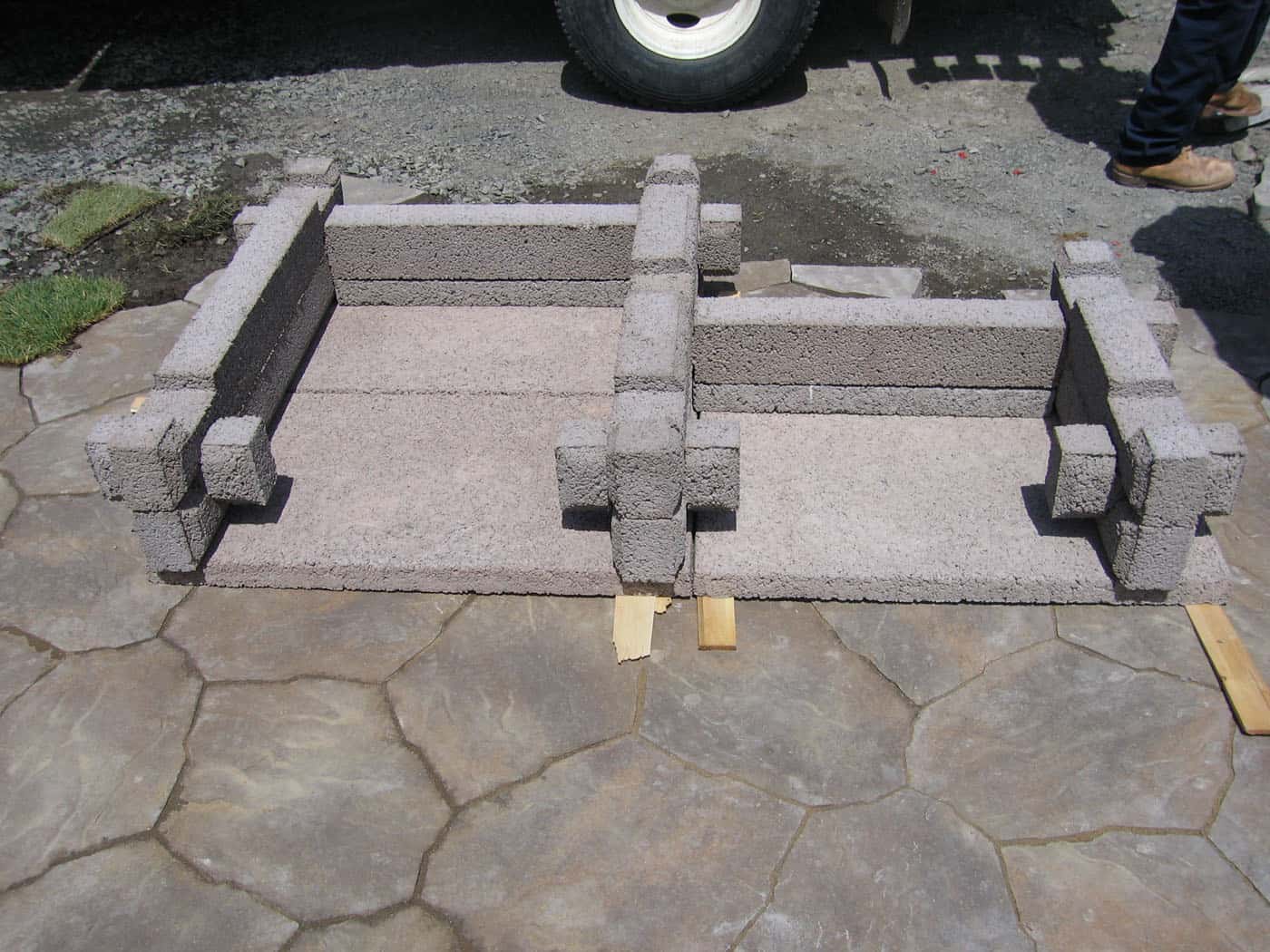

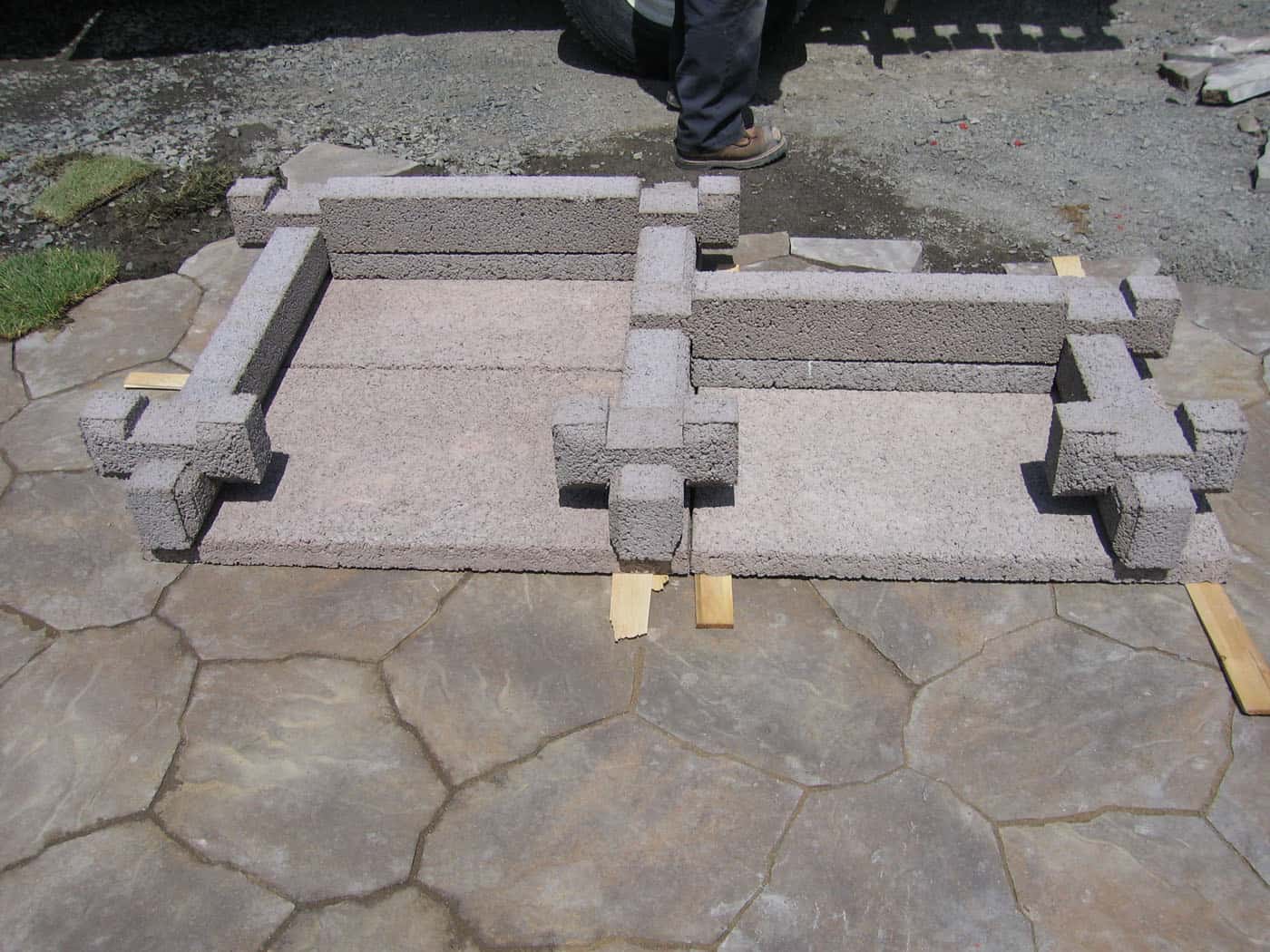

Place 3 little blocks of 12” at the front, a 42” (4 notches) at the back of the hearth of the fireplace and the Beaver 39” to form the back of the box for wood.

Place a block of 42” (4 notches) at the left, the 6 Notches 42” at the right of the hearth and the block 26” (4 notches) at the right.

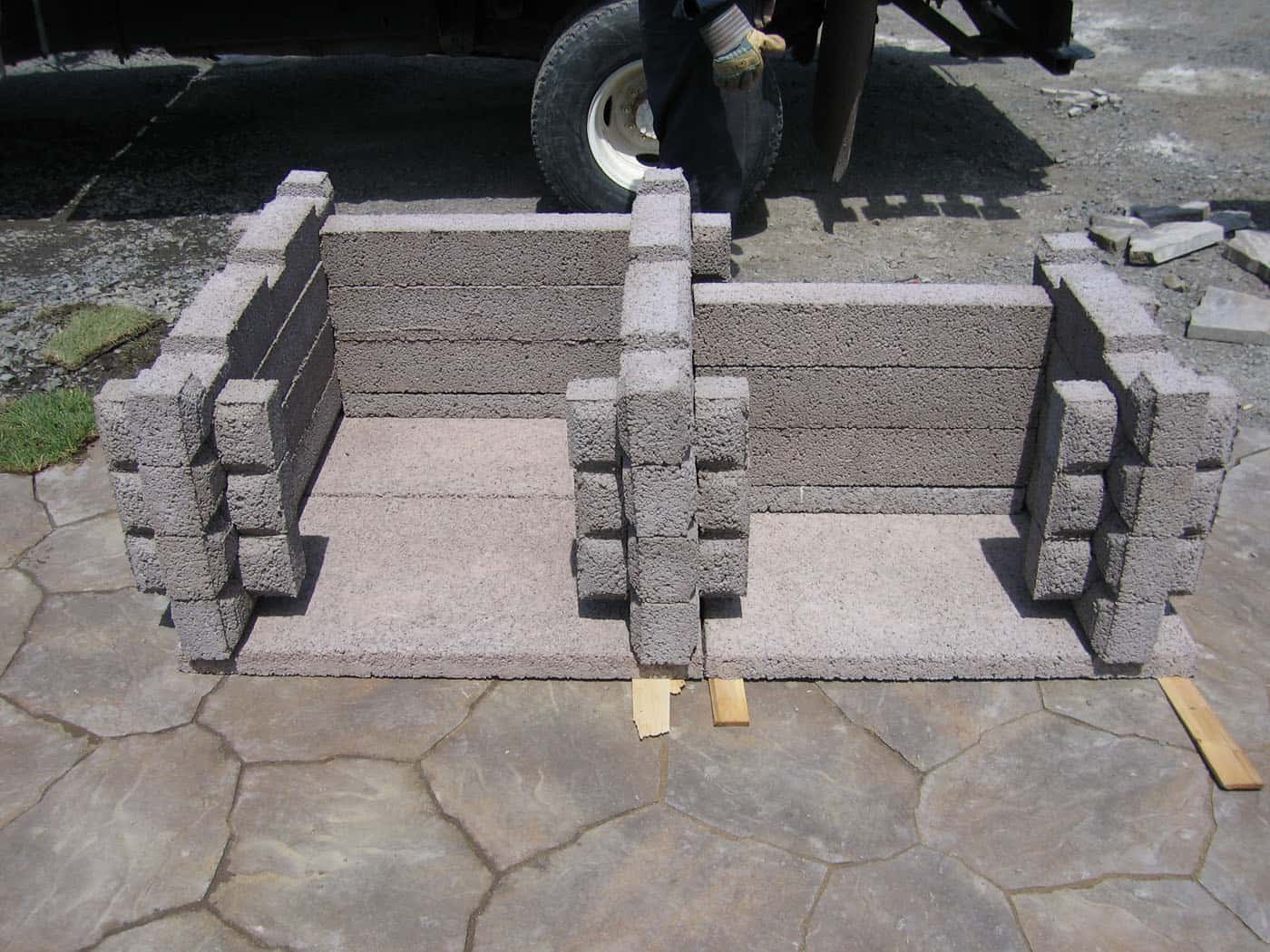

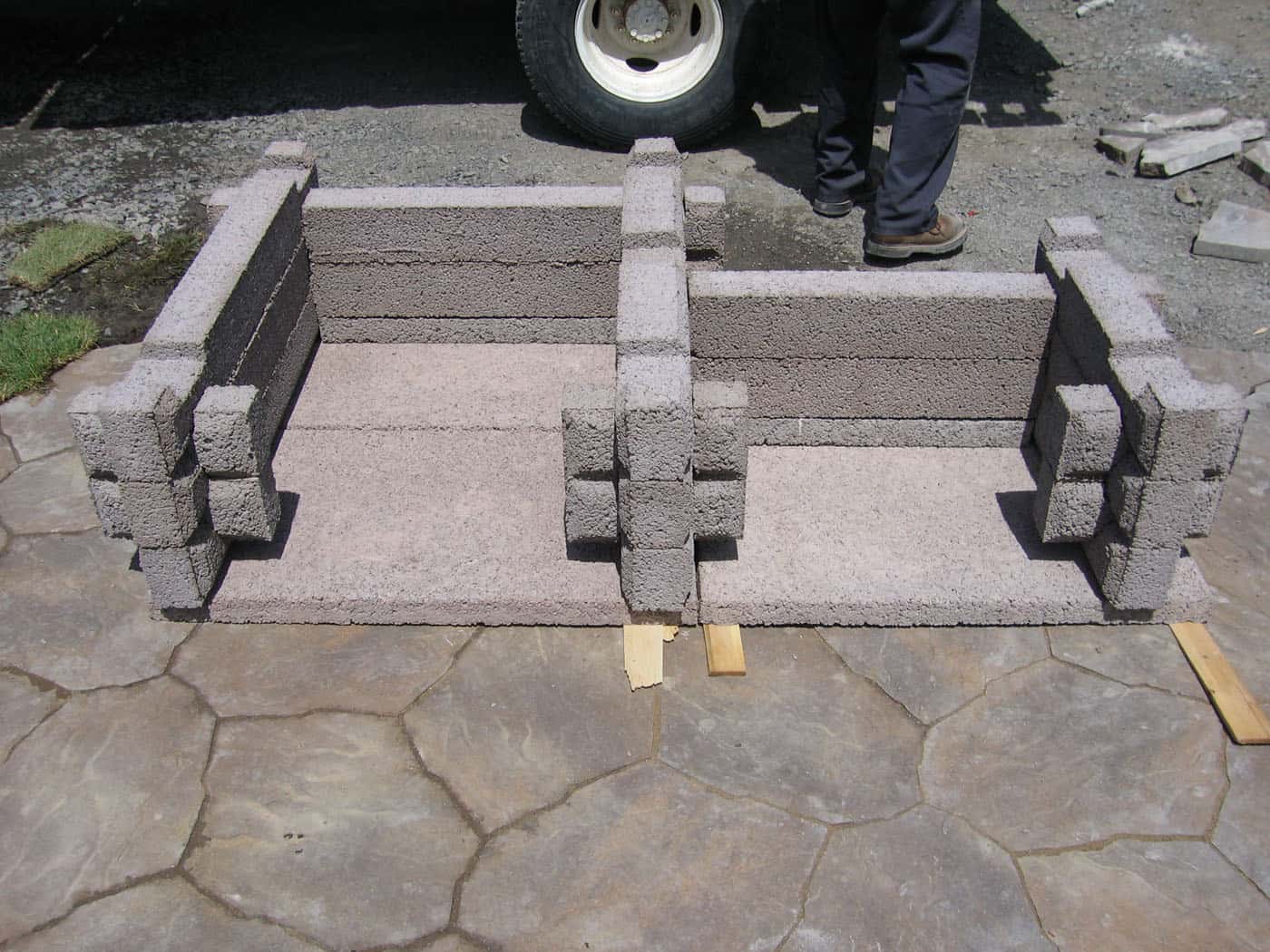

Place 3 little blocks of 12” at the front, a 42” (4 notches) at the back of the hearth of the fireplace and the Beaver 39” to form the back of the box for wood.

Place a block of 42” (4 notches) at the left, the 6 Notches 42” at the right of the hearth and the block 26” (4 notches) at the right.

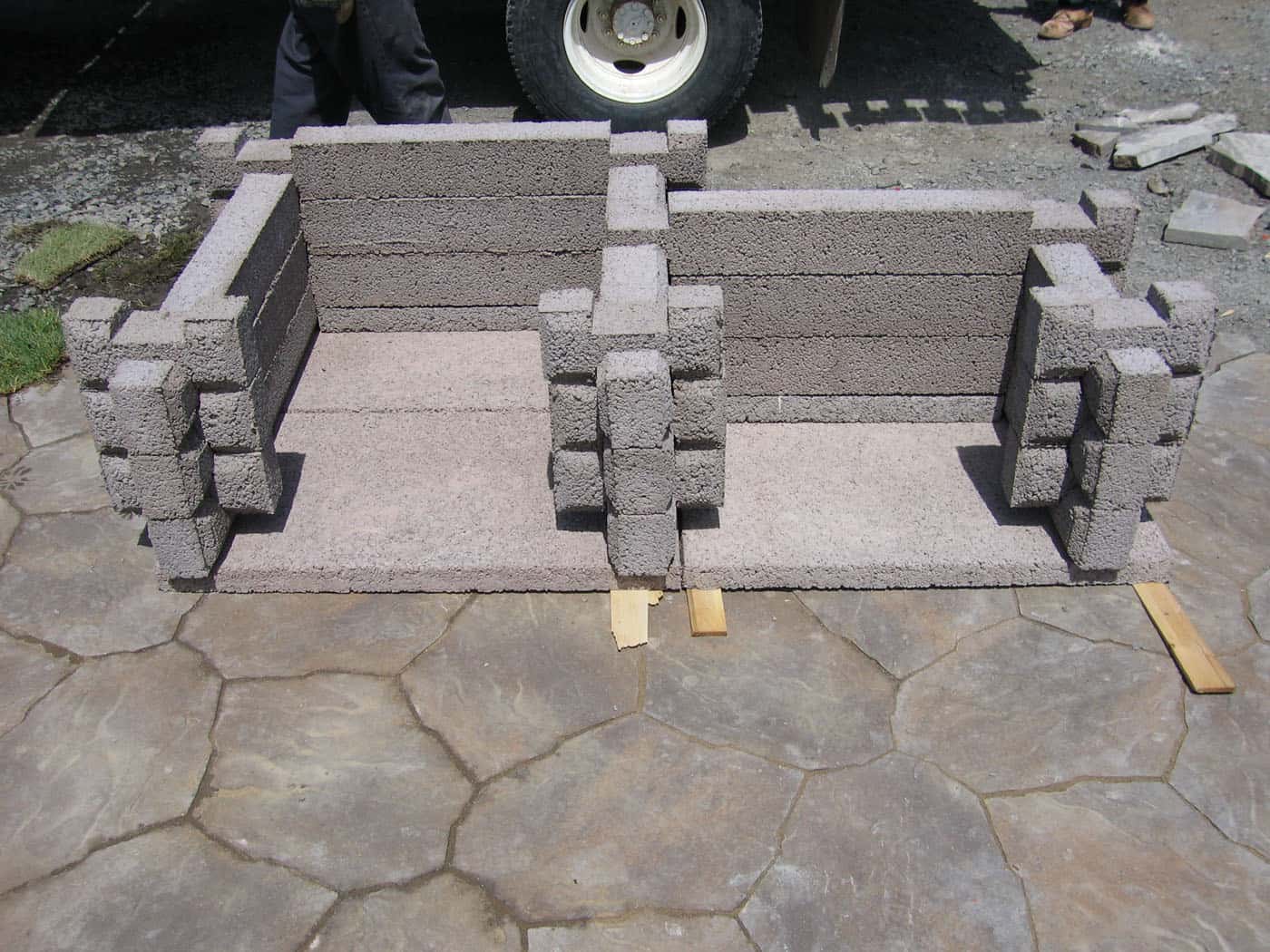

Place 3 little blocks of 12” at the front, a 42” (4 notches) at the back of the hearth of the fireplace and the Beaver 39”.

Place the block 5 Notches 42” at the left, the block 6 Notches 42” on the middle wall and the last block of 26” at the right.

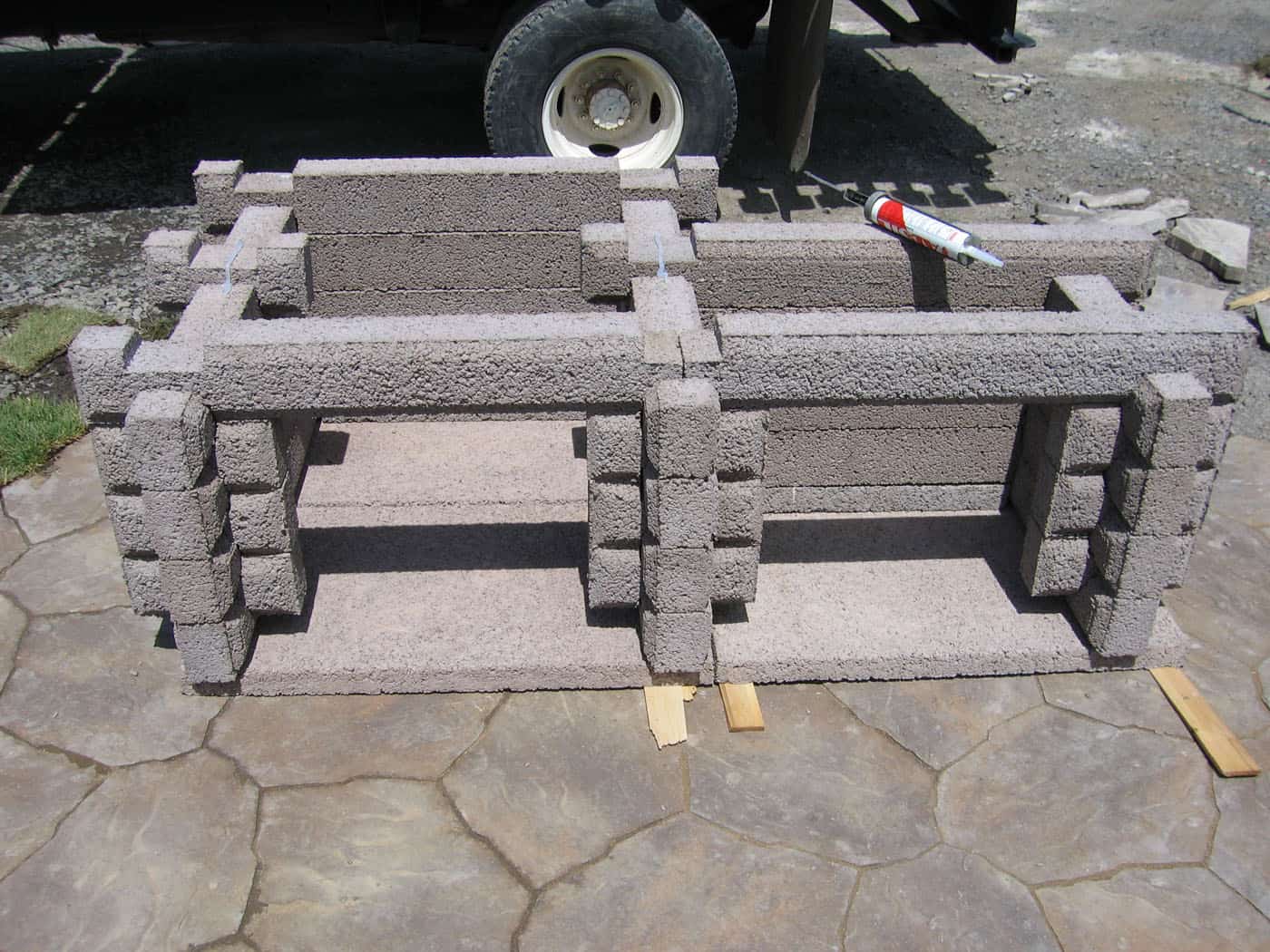

Place at the back of the hearth a 42” (4 notches), a little block of 12” in the middle of the 5 Notches on the left, the Back Right Arm 42” at the back of the box for wood, the Center Special 36” in front of the hearth and the Front Right Arm 36” in front of the box for wood.
Tip : Put some silicone under and on the 12” and the Back Right Arm 42” to
prevent the smoke to come out from there.

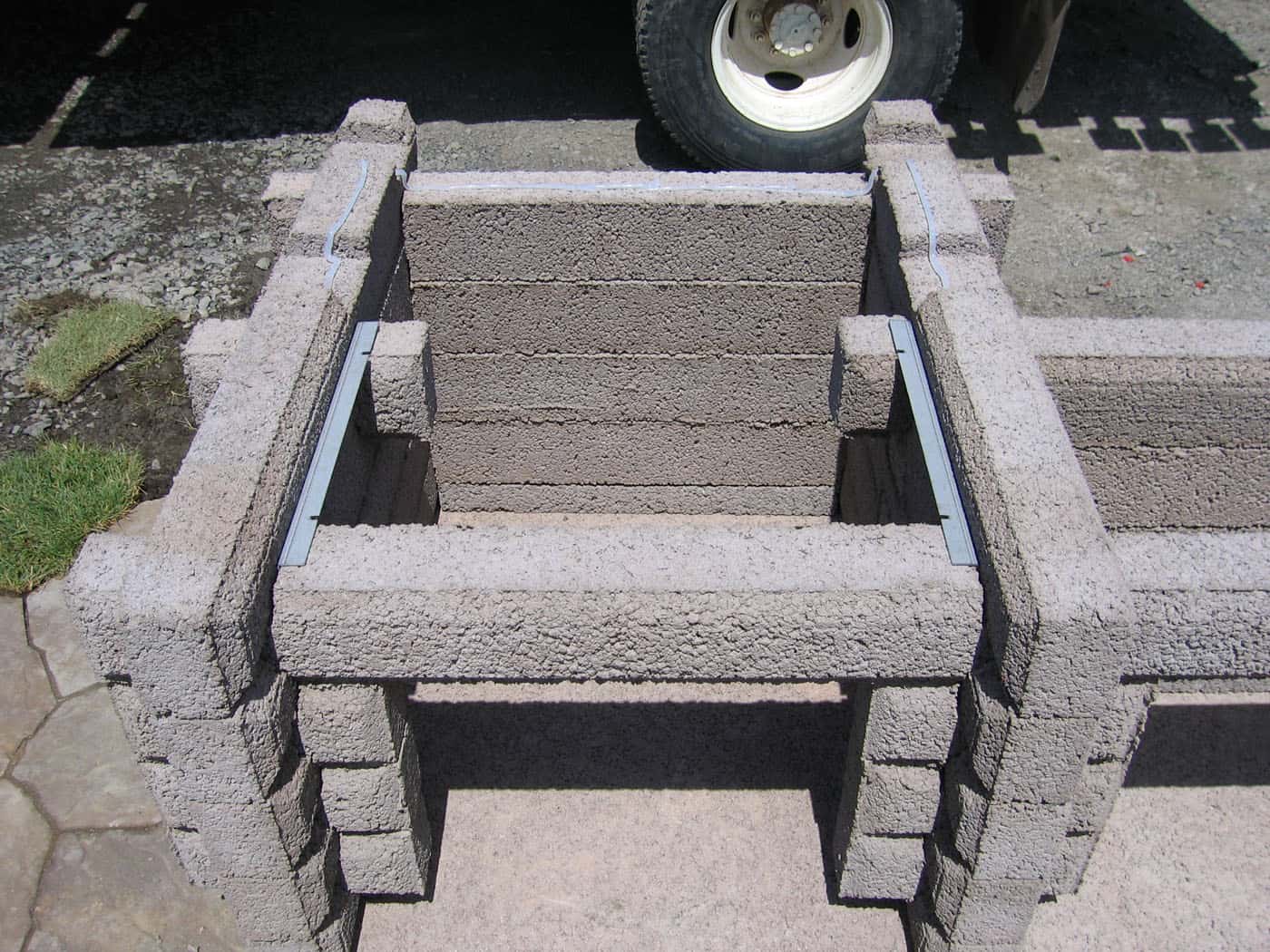

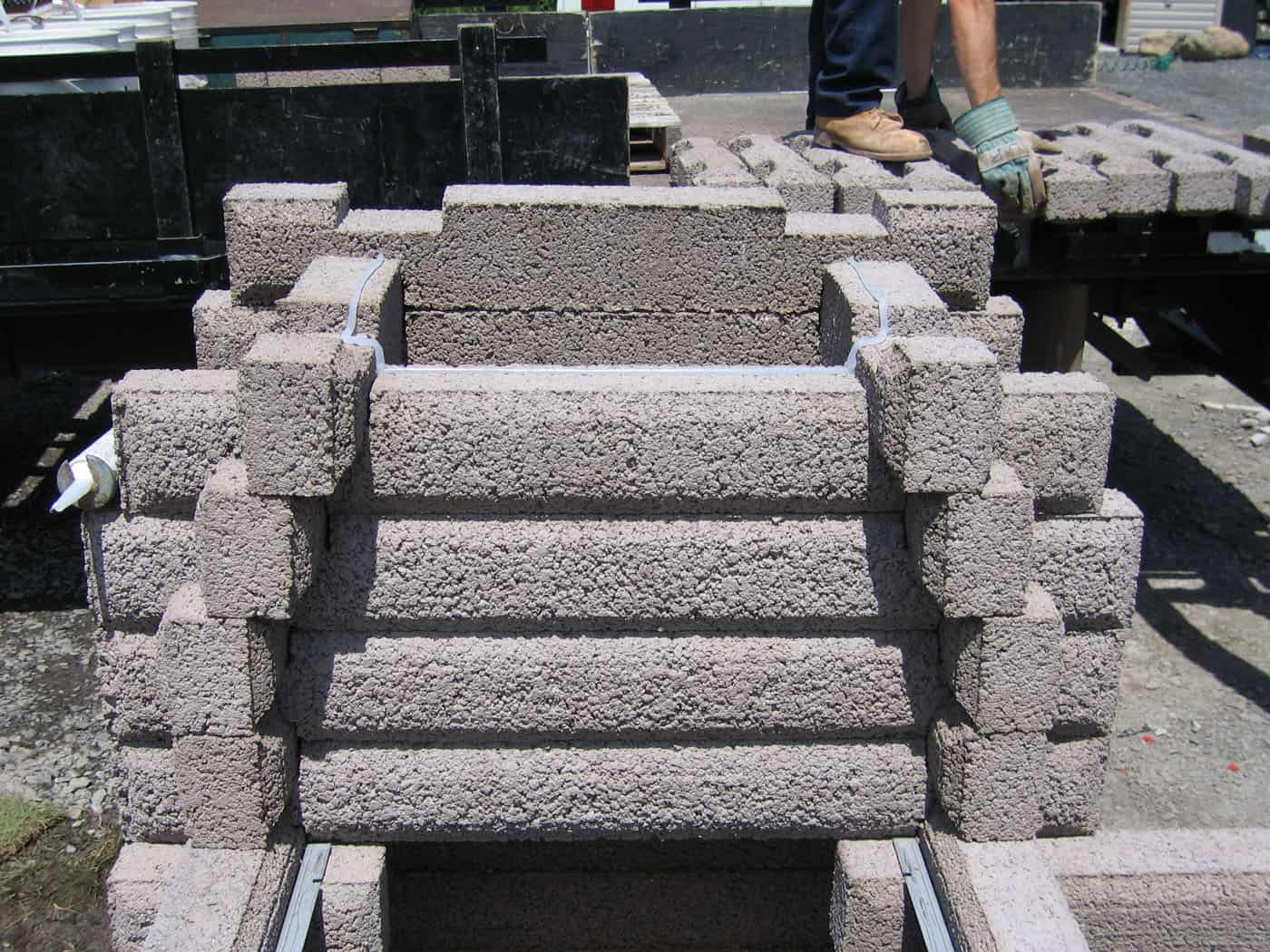

Place your 2 blocks Arm 5 Notches 42” left and right. Put in place your slides so that you can remove them at any time. From here you can start putting a thin fillet of silicone (1/4 inch) in the chimney section.

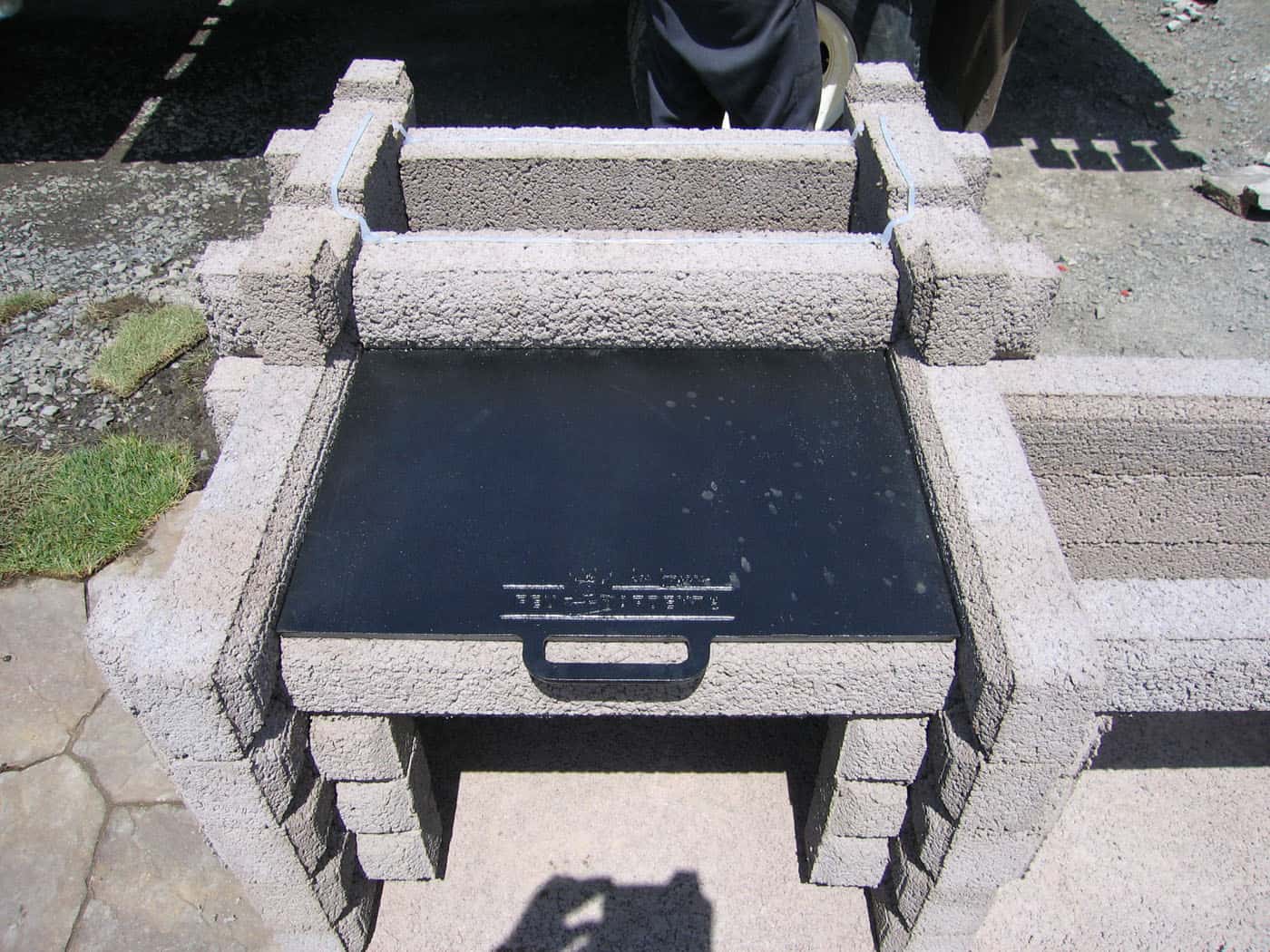

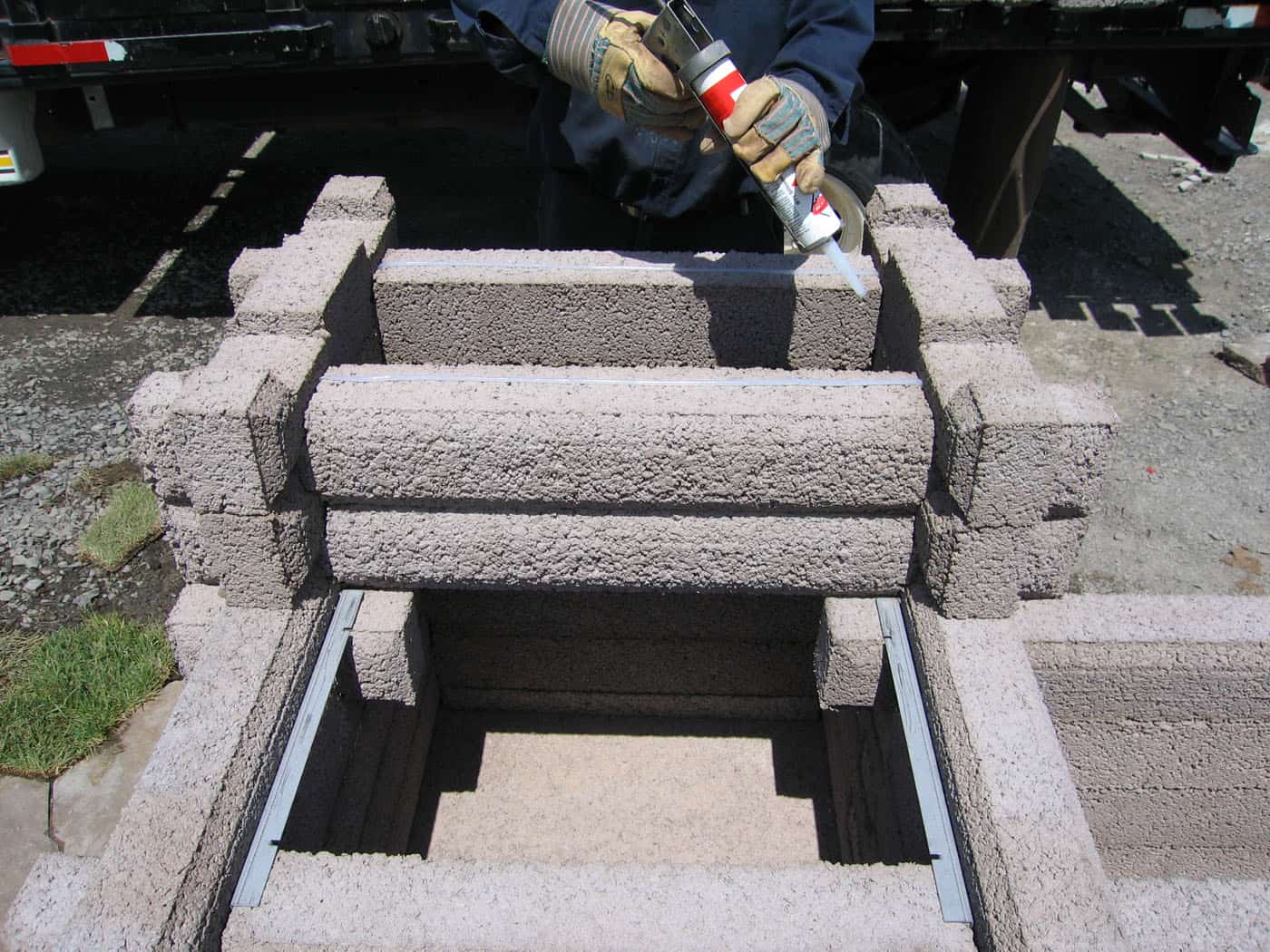

Place the 2 blocks 42” (4 in line notches) and 2 blocks of 24” on each side of the chimney. At this stage, you can try your plate. You will find out if your new outdoor fireplace is square. It is still time to move it a little!

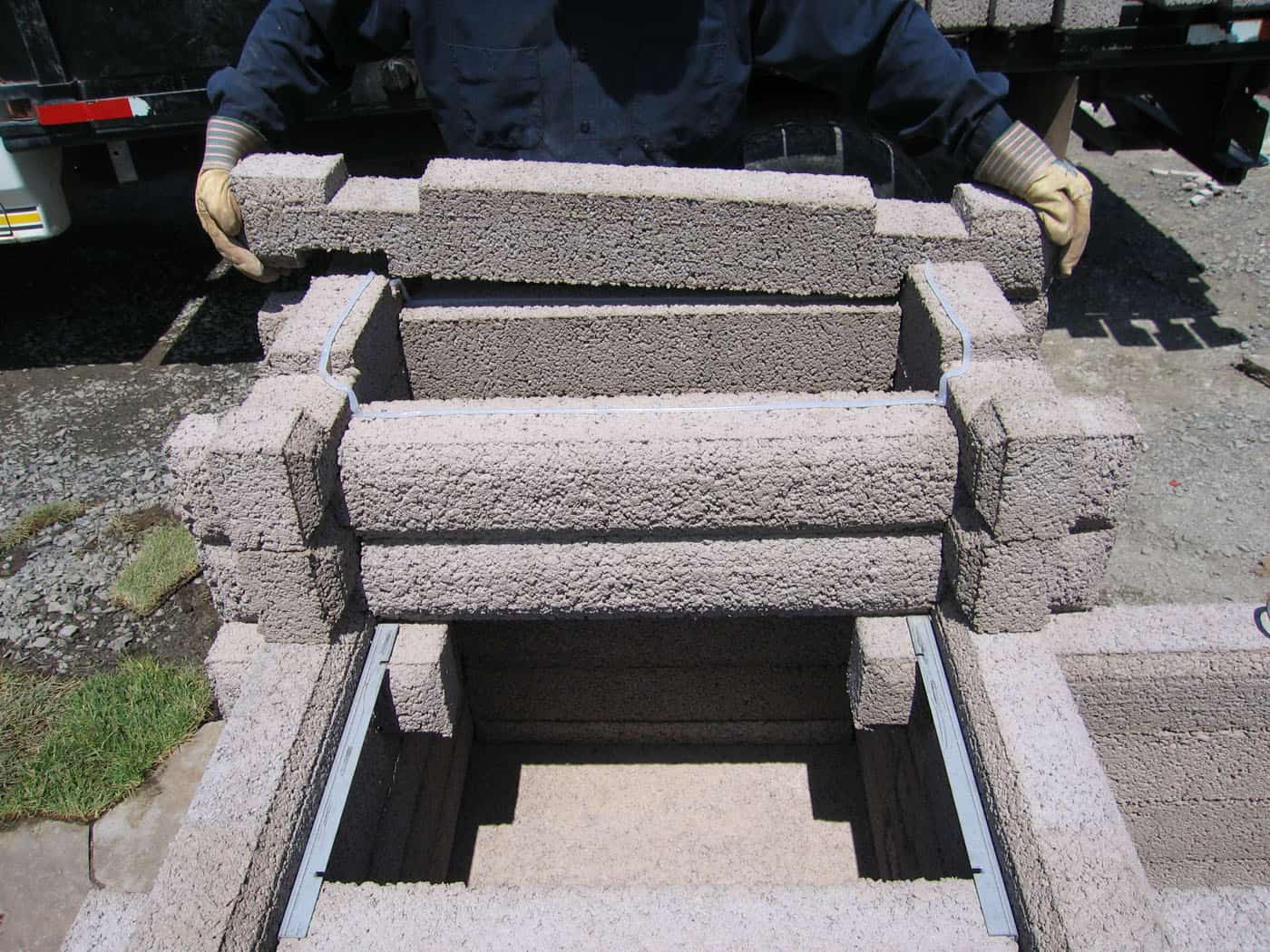

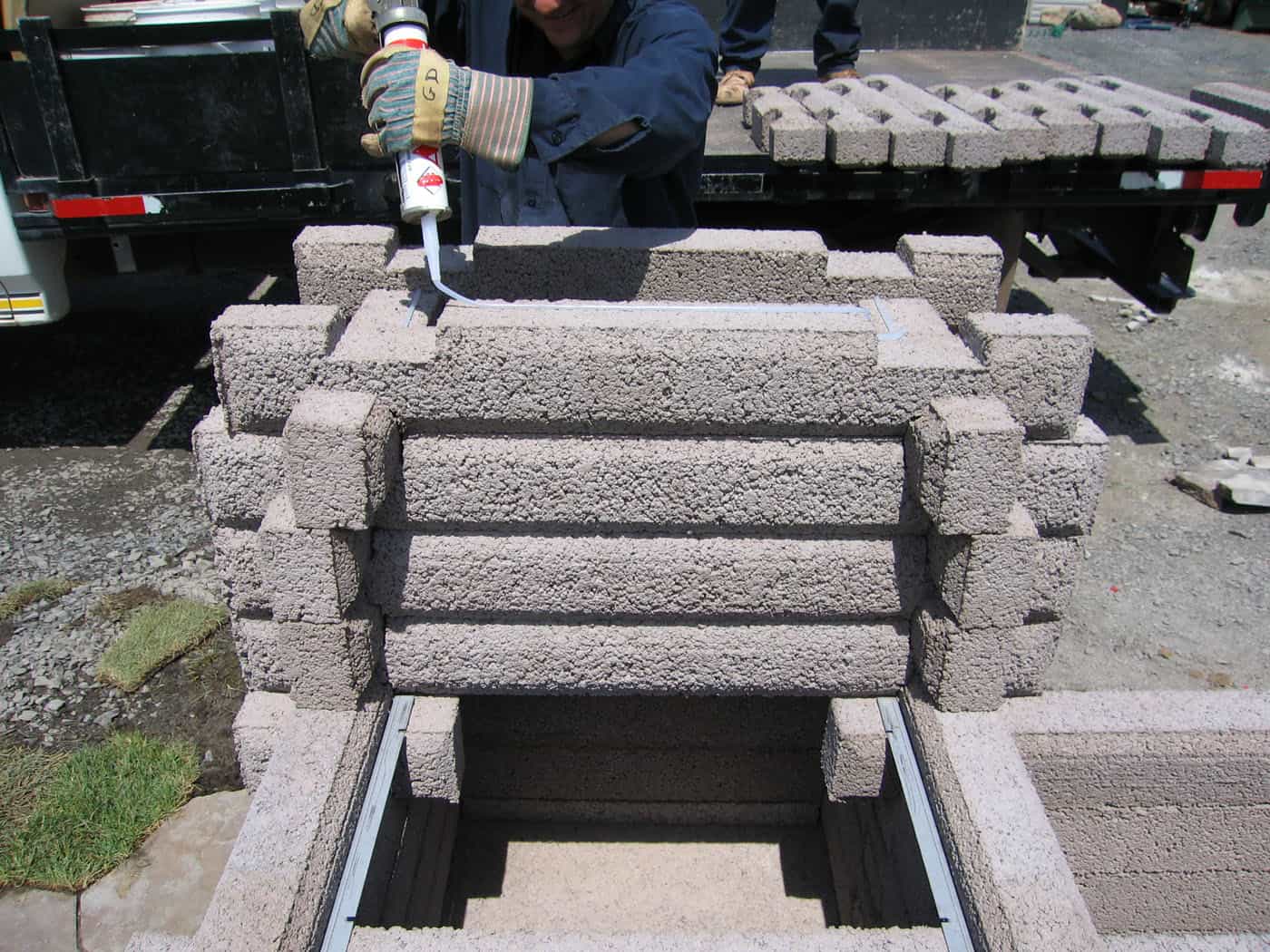

Place the 2 blocks 42” (4 in line notches) and 2 blocks of 24” on each side of the chimney. As the chimney will decrease, put the silicone closer to the inside. This way it will not be visible from the outside when you will put the next stone.

Place the 2 blocks Chimney 42” (4 off-center notches).

Place 2 blocks of 24” and 2 blocks Chimney 38 5/8”.

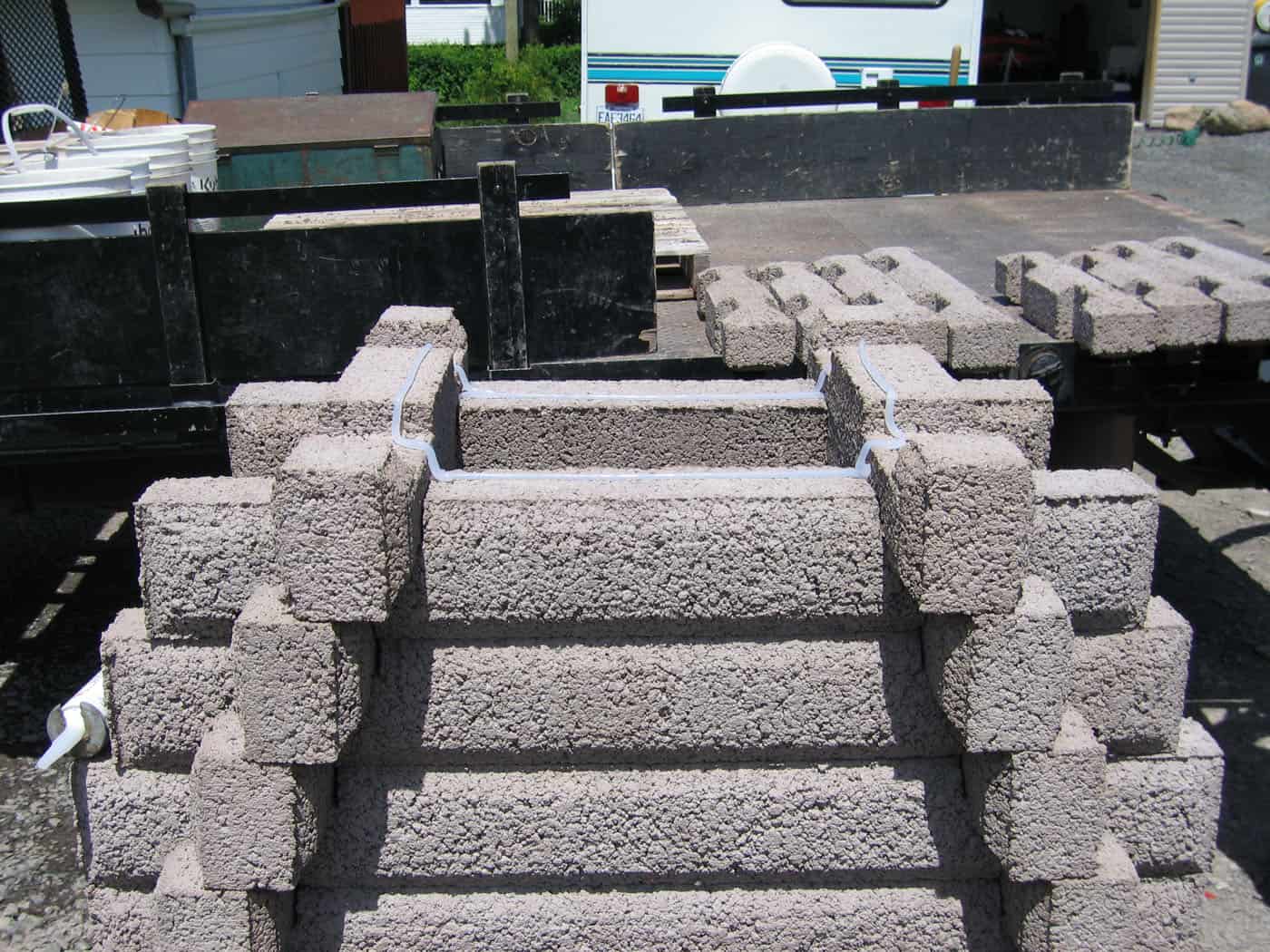

Place 2 blocks of 24” and 2 blocks Chimney 35 1/16”.

Place 2 blocks of 24”.

Place the 2 blocks Chimney 31 7/16”.

Place 2 blocks of 24” and 2 block Chimney 27 7/8”.
Reminder : Do not apply silicone in your last row as it is where you will put the spark catcher. Over time it will burn and it will be easier to replace.

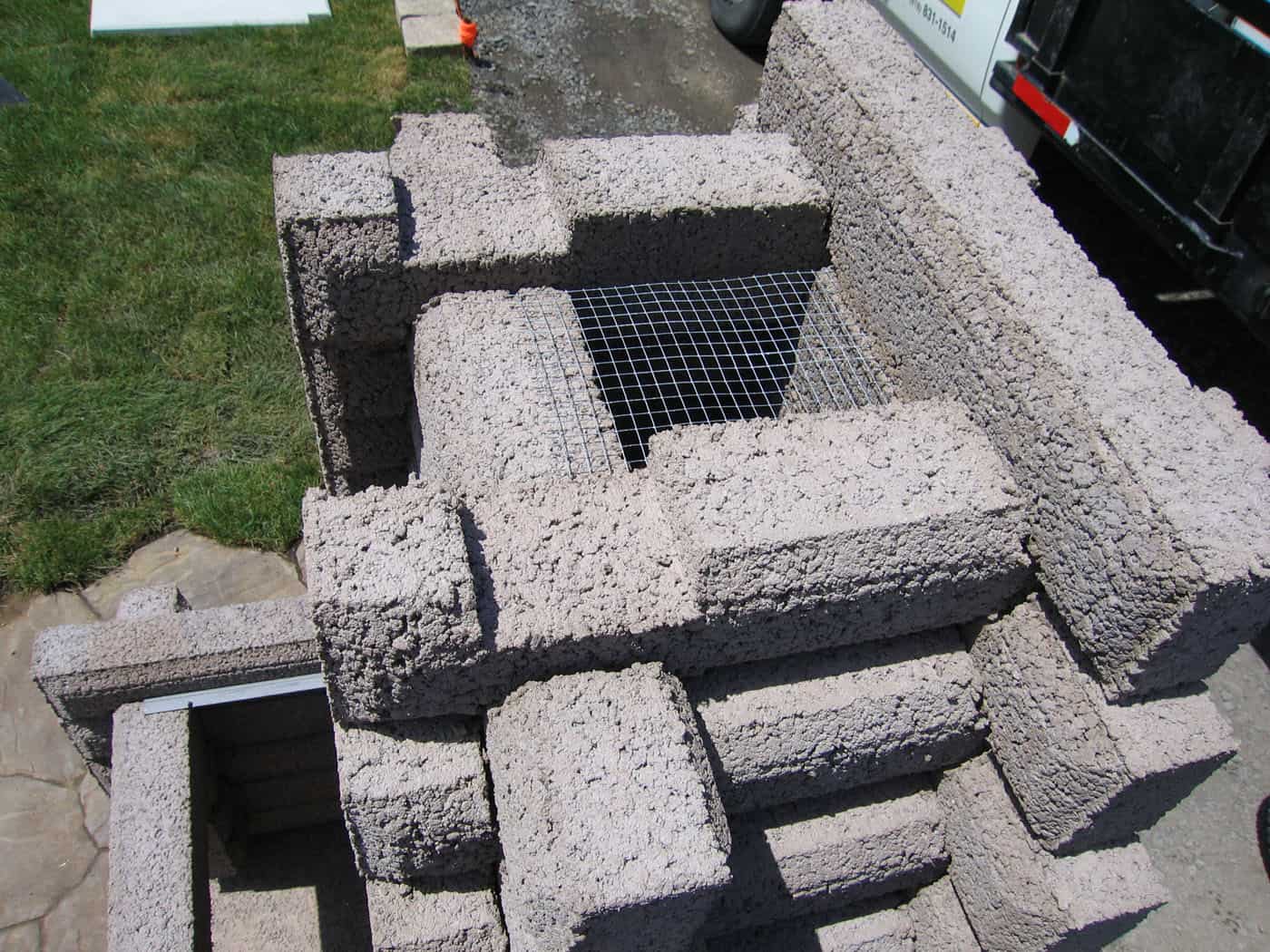

Place 2 blocks of 24” and the spark catcher.

Place the 2 blocks Top 24”.

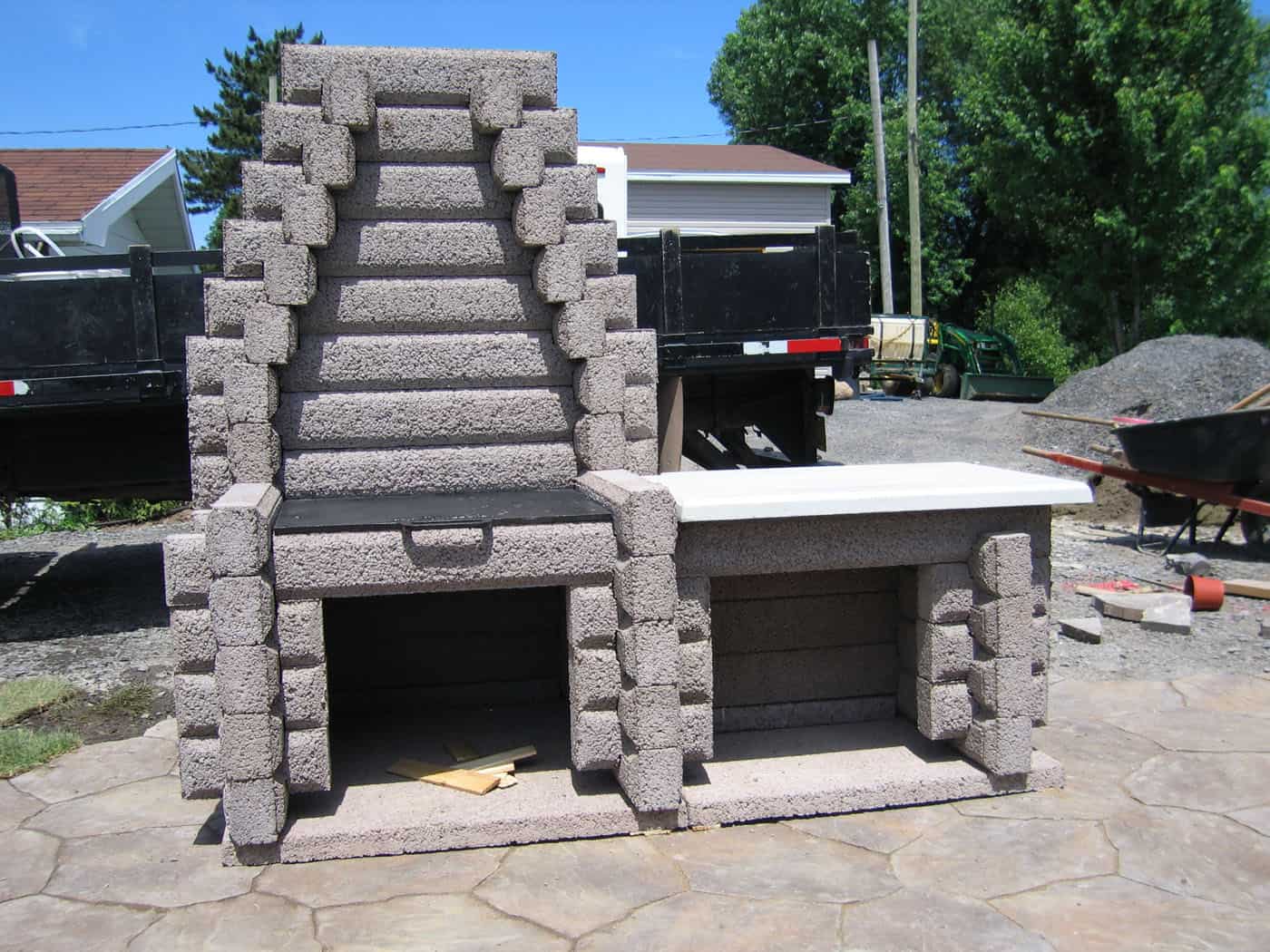

That ends the assembly of your outside fireplace.
